• Model NO.：Cutter suction dredger,22 inch
• Clear Water Flow：5000m3,Hour
• Dredge Depth：15m
• Discharge Distance：2000m
• Engine Brand：Cummins,Caterpillar,Weichai
• Total Weight：300tons
• Delivery Time：90days
• Transport Package：Nude Packing
• Specification：22 inch
• Trademark：Yongli
• Origin：Qingzhou, Shandong, China
• HS Code：8905100000

Basic Info.

Model NO. Cutter suction dredger/22 inch Clear Water Flow 5000m3/Hour Dredge Depth 15m Discharge Distance 2000m Engine Brand Cummins,Caterpillar,Weichai Total Weight 300tons Delivery Time 90days Transport Package Nude Packing Specification 22 inch Trademark Yongli Origin Qingzhou, Shandong, China HS Code 8905100000

Product Description

Many Fields Of Adaptation 22 Inch Customized Dredger For River Dredging

1. Company Information

Qingzhou Yongli Mining And Dredging Machinery Co., Ltd , is one of China leading company of sand
& gold& diamond  mining equipments, which has more than 25 years' experience  in desinging,producing
and selling cutter suction  dredgers,jet  suction dredgers,bucket chain dredger, diamond/gold dredgers,
pulsating sluice box,  gold washing plant, sand washing & screening machinery, sand transport barge,
work boat and so on. Successful series of products have won the recognization and approval of general
administration of Quality Supervision. Now our company's products are widely exported and used in the
Aisa,Afrrica,South America,Middle East and other regions.

2. Brief Introduction of dredger

A cutter suction dredger's (CSD) suction tube has a cutting mechanism at the suction inlet. The cutting
mechanism loosens the bed material and transports it to the suction mouth. The dredged material is
usually sucked up by a wear-resistant centrifugal pump and discharged either through a pipe line or to
a barge.Cutter suction dredgers are most often used in geological areas consisting of hard surface
materials (for example gravel deposits or surface bedrock) where a standard suction dredger would be
ineffective. They can, if sufficiently powerful, be used instead of underwater blasting.

3. Technical Specification of 22 inch CSD

Item Name	Descriptions /Specifications
Production Capacity (solid)	750-1000 cbm/hr for medium sand at a distance of 2000 m.
Slurry concentration, %	Min 15%, Max 20%
Discharge distance (max)	Max 2000 m
Dredging depth at 45 degree  45	15 m
Min. dredging depth	1.8m
Inner Diameter of suction pipe	700mm
Inner Diameter of discharge pipe	600mm
Average Draught	1.6m
Maximum draught	1.8m
Total weight	300Ton
Total installed power	1640KW
Fuel tank capacity	40Ton
Delivery time	90 days

 4.Our Services
a. Design the dredger based on the customer's detailed requirements such as ( clear water flow per hour,
dredge depth, discharge distance and engine brand<we can support Weichai,Cummins,Caterpillar>)
b. supply one year's guarantee for the whole dredger except the wear spare parts.
c. supply after-sales installation, trial operation, training the operators, maintence and other services.

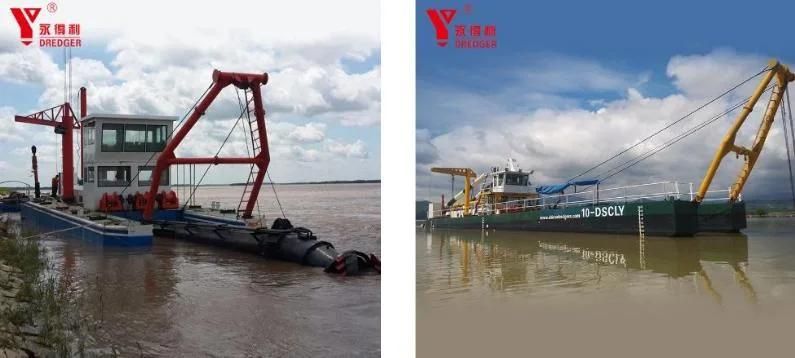

5. Product Pictures
