• Model NO.：Cutter suction dredger,18 inch
• Clear Water Flow：3500m3,Hour
• Dredge Depth：15m
• Discharge Distance：1500m
• Engine Brand：Cummins,Caterpillar,Weichai
• Total Weight：180 Tons
• Delivery Time：60 Days
• Transport Package：Nude Packing
• Specification：18 inch
• Trademark：Yongli
• Origin：Qingzhou, Shandong, China
• HS Code：8905100000

Basic Info.

Model NO. Cutter suction dredger/18 inch Clear Water Flow 3500m3/Hour Dredge Depth 15m Discharge Distance 1500m Engine Brand Cummins,Caterpillar,Weichai Total Weight 180 Tons Delivery Time 60 Days Transport Package Nude Packing Specification 18 inch Trademark Yongli Origin Qingzhou, Shandong, China HS Code 8905100000

Product Description

Widely Exported Powerful Pump Mud Dredger For The River Bottom Used

1. Company Information

Qingzhou Yongli Mining And Dredging Machinery Co., Ltd , is one of China leading company of sand &gold&
diamond mining equipments, which has more than 25 years' experience in designing,producing,selling cutter
suction dredgers,jet  suction dredgers,bucket chain dredger, diamond/gold dredgers, sand washing plant,
gold washing plant, sand washing & screening machinery, sand transport barge,work boat and so on.
Successful series of products have won the recognization and approval of general administration of Quality
Supervision. Now our company's products are widely exported and used in the Aisa,Afrrica,South America,
Middle Easr and other regions.As for more information about our company and products,Please serach
yonglidredger.en.made-in-china.com

2. Brief Introduction of dredger

Cutter suction dredger has broad range of applications in operations in the rivers , lakes, seas for the dredging,
channel excavation andreclamation.In exceptional circumstances a cutter suction dredger cutter installed
on the highpower devices, can be excavated without blasting rocks such as basalt and limestone strata.With
characteristics of high efficiency, large output up to several thousand cubic meters per hour; the sand or
crushed rock material to rely on a strong driving force through the mud pumps and mud pipeline, pumping
out a few kilometers outside.

3. Technical Specification

Item Name	Descriptions /Specifications
Production Capacity (solid)	525-700 cbm/hr for medium sand at a distance of 1500 m.
Slurry concentration, %	Min 15%, Max 20%
Discharge distance (max)	Max 2000 m
Dredging depth at 45 degree  45	15 m
Min. dredging depth	1.4m
Inner Diameter of suction pipe	600mm
Inner Diameter of discharge pipe	500mm
Average Draught	1.4m
Maximum draught	1.6m
Total weight	180Ton
Main engine	895kw,Cummins,China
Auxiliary engine	298kw,Cummins,China
Total installed power	1193KW
Fuel tank capacity	30Ton
Delivery time	90 days

 4.Our services

a. Design the dredger based on the customer's detailed requirements such as ( clear water flow, dredge depth,
discharge distance)
b. supply one year's guarantee for the whole dredger except the wear spare parts.
c. supply after-sales installation, trial operation, training the operators, maintence and other services.

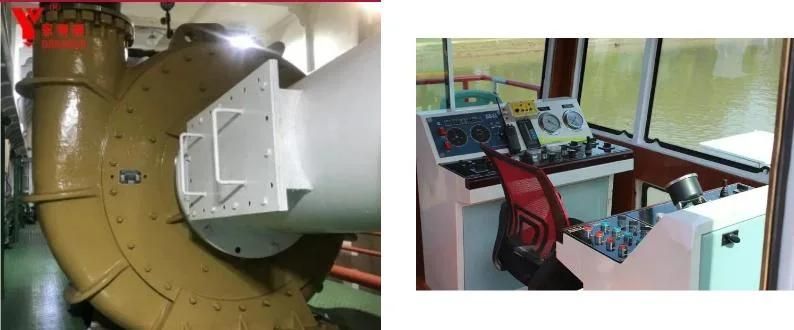

5. Product Pictures
