Simple Operation 8 Inch Dredging Machine with Diesel for The Lakes

Qingzhou Yongli Mining and Dredging Machinery Co., Ltd.
  • Type:Cutter Suction Dredger
  • Power Type:Diesel
  • Cyclone Type:Hydrocyclone
  • Slot Type:CTS
  • Customized:Customized
  • Condition:New

Base Info

  • Model NO.:Cutter suction dredger,8 inch
  • Clear Water Flow:800m3,Hour
  • Dredge Depth:15m
  • Discharge Distance:1500m
  • Engine Brand:Cummins,Caterpillar,Weichai
  • Total Weight:80 Tons
  • Transport Package:Nude Packing
  • Specification:8 inch
  • Trademark:Yongli
  • Origin:Qingzhou, Shandong, China
  • HS Code:8905100000

Description

Basic Info.

Model NO. Cutter suction dredger/8 inch Clear Water Flow 800m3/Hour Dredge Depth 15m Discharge Distance 1500m Engine Brand Cummins,Caterpillar,Weichai Total Weight 80 Tons Transport Package Nude Packing Specification 8 inch Trademark Yongli Origin Qingzhou, Shandong, China HS Code 8905100000

Product Description

Simple Operation 8 Inch Dredging Machine With Diesel For The Lakes


1. Company Information

Qingzhou Yongli Mining and Dredging Machinery Co., Ltd , is one of China leading company of sand & gold&
diamond  mining equipments, which has more than 25 years' experience  in designing,producing and
manufacturing bucket ladder dredgers,cutter suction dredgers, jet suction dredger, diamond/gold dredgers,
pulsating sluice box,  gold washing plant
, sand washing & screening machinery, sand transport barge,work
boat and so on. Successful series of products have won the recognization and approval of general administration
of Quality Supervision.Welcome to our factory for discussion!

2. Brief Introduction

Cutter suction dredger has broad range of applications in operations in the rivers , lakes,seasfor the dredging,
excavation.In exceptional circumstances a cutter suction dredger cutter installed on the highpower devices, can
be excavated without blasting rocks such as basalt and limestone strata.
With characteristics of high efficiency, large output up to several thousand cubic meters per hour; the sand, or
crushed rock material to rely on a strong driving force through the mud pumps and mud pipeline,
pumping out a few kilometers outside.

3. Technical Specification

Item NameDescriptions /Specifications
Production Capacity (solid)120-160 cbm/hr for medium sand at a distance of 1500 m.
Slurry concentration, %

Min 15%, Max 20%
Discharge distance (max)Max 1500 m
Dredging depth at 45 degree  4515 m
Min. dredging depth1.6m
Inner Diameter of suction pipe350mm
Inner Diameter of discharge pipe300mm
Average Draught1.0m
Maximum draught1.2 m
Total weight80Ton
Total installed power403KW
Fuel tank capacity15 Ton
Delivery time60 days

 4.Our services
a. Design the dredger based on the customer's detailed requirements such as ( clear water flow, dredge depth,
discharge distance,engine brand)

b. supply one year's guarantee for the whole dredger except the wear spare parts.
c. supply after-sales installation, trial operation, training the operators, maintence and other services.

 5.Certification( ISO9001:2008)
Simple Operation 8 Inch Dredging Machine with Diesel for The Lakes

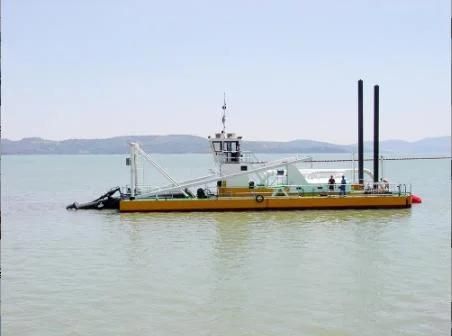

6.Product Pictures
