Mining Machinery

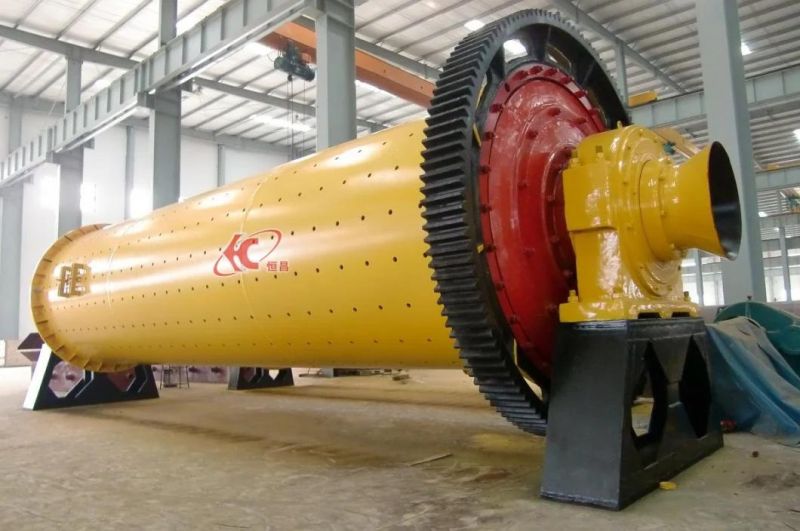

Energy-Saving Gold/Iron Ore/Dolomite Wet Ball Grinding Mill

Gongyi Hengchang Metallurgical Building Material Equipments Plant
  • Type:Ball Mill
  • Motor Type:AC Motor
  • Motor Power:15-1250kw
  • Rotationl Speed:18.08-38 R,Min
  • Application:Metallurgy
  • Materials:Gold

Base Info

  • Model NO.:MG 1200*4500
  • Condition:New
  • Product Name:Energy-Saving Gold,Iron Ore,Dolomite Wet Ball Grin
  • Keyword:Gold Wet Ball Grinding Mill
  • Installation:Engineer′s Guide
  • Rotate Speed:37 R,Min
  • Feeding Size:Below 25mm
  • Output Size:0.074-0.4mm
  • Capacity:1.6-5.8 T,H
  • Delivery Time:20 Days
  • Warranty:12 Months
  • Diameter:1200mm
  • Ball Quantity:12.5t
  • Material:Carbon Steel
  • Weight:13.8 T
  • Feature:Output Fine Size
  • Advantage:Long Life
  • Transport Package:Single Small Machine in Wooden Case
  • Specification:ISO9001: 2008
  • Trademark:Hengchang
  • Origin:Gongyi City, Henan Province, China
  • HS Code:8474202000
  • Production Capacity:300 Set,Sets Per Month

Description

ModelCylinder speed
(r/min)Ball loading
(t)Feeding Size
(mm)Output size
(mm)Capacity
(t/h)Power
(kw)Weight
(t)MQZ900×1800381.5≤200.075-0.890.65-2154.2MG900×3000382.7≤200.075-0.891.1-3.5225.6MQZ1200×2400373.8≤250.075-0.61.5-4.83011.5MG1200×3000375≤250.074-0.41.6-53712.8MG1200×4500376.6≤250.074-0.41.6-5.84513.8MQZ1500×300029.78≤250.074-0.42-57516MG1500×450029.712.5≤250.074-0.43-69022MG1500×570029.715≤250.074-0.43.5-611024.7MQZ1830×30002511≤250.074-0.44-1013028MG1830×45002515.8≤250.074-0.44.5-1215532MG1830×640024.123≤250.074-0.46.5-1521036.5MG1830×700024.124≤250.074-0.47.5-1724539MQZ2100×300024.620≤250.074-0.47.5-3618040MQZ2100×450024.622.5≤250.074-0.47.5-4021048MQZ2200×650021.725≤250.074-0.410-1238052MQZ2200×700021.728≤250.074-0.410-1438054MQZ2200×750021.729≤250.074-0.412-1438056MQZ2400×1000020.5750≤250.074-0.417-1863095MQZ2400×1100020.5751.5≤250.074-0.419-2163099.2MQZ2400×1300020.365≤250.074-0.421-23800116MQZ2600×1100019.5765≤250.074-0.424-26800131MQZ2600×1300019.6175≤250.074-0.428-321000149MQZ3000×900018.3478≤250.074-0.428-321000139MQZ3000×1100018.0895≤250.074-0.430-351250143.5Energy-Saving Gold/Iron Ore/Dolomite Wet Ball Grinding Mill


2. Working Principle of Energy-Saving Gold/Iron ore/Dolomite Wet Ball Grinding Mill

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding
chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel ball in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.


Energy-Saving Gold/Iron Ore/Dolomite Wet Ball Grinding Mill

Energy-Saving Gold/Iron Ore/Dolomite Wet Ball Grinding Mill

5.Our service of Energy-Saving Gold/Iron ore/Dolomite Wet Ball Grinding Mill

1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.

(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.

(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the  life-long follow-up service.

Energy-Saving Gold/Iron Ore/Dolomite Wet Ball Grinding Mill

5.Our copmany

Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments.


7.FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: 30% advanced payment by T/T, balance paid before shipment.

Why Choose Us?

1.We are true Manufacturer.

2.Alibaba Assessed Gold Supplier.

3.Inspected by the Inspection Institution of ISO CE Certification.

4.100% QC inspection Before Shipmeng.

5.Best Quality & Best Service with Competitive price


8.Contact us

If you want to know more details, please contact me!!

Website:http://hcmining.en.made-in-china.com



Amanda
