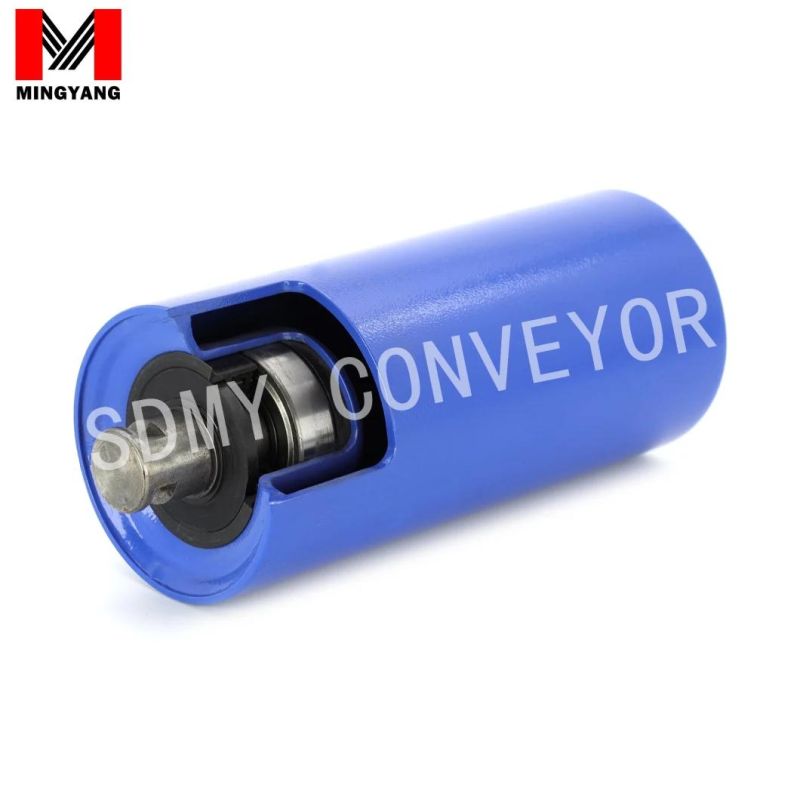

750bw 114dia 6205brg - Steel Trough -Roller

Shandong Mingyang Conveyor Equipment Co., Ltd.
  • Type：Gravity Conveyor
  • Structure：Roller Conveyor
  • Material：Carbon Steel
  • Material Feature：Fire Resistant
  • Certification：ISO9001:2008, ISO9001:2000
  • Energy Saving：Energy Saving

Base Info

  • Model NO.：MYC
  • Warranty：2 Years
  • Color：Multi Color
  • Customized：Customized
  • Condition：New
  • After-sales Service：1 Year Warranty Under Normal Use Condition
  • Transport Package：Packed in Seaworthy Carton for Export
  • Origin：China
  • HS Code：843139
  • Production Capacity：1800000

Description

No.ItemDescription1BrandMYC2Roller Diameter89/102/108/114/127/133/140/152/159/165/178/194/219mm3Shell Thickness6-10mm4Face Length190mm-3500mm5Shaft Diameter20/25/30/35/40/45/50mm6Bearing6204/6205/6305/6206/6306/6307/6308/6309/63107Bearing TypeZZ C3 / ZRS C38Bearing BrandHRB/LYC/SKF/NSK/CU9SealMY/TK/TKII/TKIII/TF/AR/RG/RD10Pipe MaterialSteel11Shaft MaterialCold Drawing Round Steel12Surface TreatmentN/A13Surface ColorMulti Color750bw 114dia 6205brg - Steel Trough -Roller750bw 114dia 6205brg - Steel Trough -Roller750bw 114dia 6205brg - Steel Trough -Roller750bw 114dia 6205brg - Steel Trough -Roller750bw 114dia 6205brg - Steel Trough -Roller750bw 114dia 6205brg - Steel Trough -RollerRoller is an important part of belt conveyor, with many kinds and large quantity. It is one of the most used and convenient parts for maintenance of belt conveyor. It accounts for 35% of the total cost of a belt conveyor and produces more than 70% resistance, so the quality of idler is particularly important.750bw 114dia 6205brg - Steel Trough -Roller750bw 114dia 6205brg - Steel Trough -Roller750bw 114dia 6205brg - Steel Trough -Roller750bw 114dia 6205brg - Steel Trough -Roller
