Dry Method Grinding Ball Mill with Ceramic Liner (900X1800)

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd.
  • Type：Ball Mill
  • Motor Type：DC Motor
  • Motor Power：15-1000kw
  • Application：Refractory Material, Silicate, Building Material
  • Materials：Feldspare,Zinc Ore, Copper Ore, Gold Ore,Silica
  • Condition：New

Base Info

  • Model NO.：1200x2800,2400x3600,3600x4500
  • Flowchart：Provided
  • Installation&Training：Provided
  • Grinding Method：Wet or Dry
  • Origin：China
  • Production Capacity：1-200t,H

Description

ModelSpeed (r/min)Max. weight of balls (t)Input size (mm)Output size (mm)Power (kw)Capacity (t/h)Weight (t)Φ900×1800371.8≤150.075-0.89150.5-23.4Φ900×2100372.3≤150.075-0.418.50.4-23.9Φ900×3000353.85≤250.075-0.4301.1-2.57.78Φ1200×2400354.6≤250.075-0.4301.3-3.28.65Φ1200×2800355.4≤250.075-0.4371.5-3.710.02Φ1200×4500358.6≤250.075-0.4452.7-6.7914Φ1500×3000299≤250.047-0.4753.3-8.214.12Φ1500×35002910.5≤250.047-0.4753.3-8.515.64Φ1500×45002913.5≤250.047-0.4904.5-1220Φ1500×57002917≤250.047-0.41102.6-1421.5Φ1830×30002413.5≤250.047-0.41354-1528Φ1830×36002414≤250.047-0.41354-1529Φ1830×45002420≤250.047-0.41554-1932Φ1830×70002431.5≤250.047-0.42106-2237.5Φ2100×30002218≤250.047-0.42106.4-2840.79Φ2100×36002220≤250.047-0.42107-2842Φ2100×40002221.5≤250.047-0.42107.6-2843.45Φ2200×360021.725≤250.047-0.42455.2-3244Φ2200×700021.746≤250.047-0.438015-3863Φ2400×36002128≤250.047-0.43208-6047Φ2400×45002135≤250.047-0.43808.5-6070.5Φ2700×360020.740≤250.047-0.440012-8075.5Φ2700×450020.748≤250.047-0.445012-90102Φ3200×40001865≤250.047-0.480030-180137

Note: Any change of technical data shall not be advised additionally.
Dry Method Grinding Ball Mill with Ceramic Liner (900X1800)
Application:Dry Method Grinding Ball Mill with Ceramic Liner (900X1800)
Features:Dry Method Grinding Ball Mill with Ceramic Liner (900X1800)

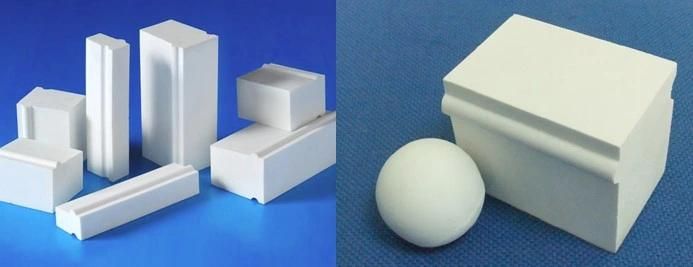

Ceramic liner can avoid iron pollution and other impurity.
Dry Method Grinding Ball Mill with Ceramic Liner (900X1800)

Customer Case
Dry Method Grinding Ball Mill with Ceramic Liner (900X1800)

Mongolia Limestone Grinding Project

Input Size: 20mmOutput Size: 150meshCapacity: 50t/h

Equipment: Φ2100X2400 Ball Mill, Dust Collector, Ball Mill Spare Parts
