Naipu 800gsl Fgd Slurry Pump Tgsl80083DPT1A49 Throatbush

Shijiazhuang Naipu Pump Co., Ltd.
  • Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Standard:AISI
  • Surface Treatment:Sand Blast
  • Manufacturing Process:Casting
  • Material:Cast Iron
  • Name:Slurry Pump Throatbush

Base Info

  • Model NO.:TGSL80083DPT1A49
  • Delivety:Within 5days After Get The Payment
  • Certificate:ISO 9001:2008, Ce, SGS
  • OEM:Accept
  • Metal Material:A05, A07, A49, A61, A33
  • Rubber Material:R55, S12, S21, R33, S42
  • Transport Package:Wooden Cases
  • Specification:CE
  • Trademark:Naipu
  • Origin:Shijiazhuang City
  • HS Code:84137010
  • Production Capacity:10000 PCS Per Month

Description

ImpellerTGSL80147DPT118A49, TGS8147DPT125A49PDBaseTGSM003D21Frame plateTGSL80032D21Cover plateTGSL80013D21ThroatbushTGSL80083DPT1A49ShaftTYGSM073E05Bearing assemblyTYGSM005Naipu 800gsl Fgd Slurry Pump Tgsl80083DPT1A49 Throatbush


Company Profile
ShiJiaZhuang Naipu Pump Co.,Ltd is the main  factory of slurry pump , sand gravel pump , dredging pump and spare parts , with more than 30 years production experience .
we also can undertake OEM  serive for casting and machning parts according the drawing or sample.
Naipu 800gsl Fgd Slurry Pump Tgsl80083DPT1A49 Throatbush


10/8E-M Slurry Pump ThroatBush F10083 R55 S42 S21 S12 S31

Material can be metal , Rubber.

Metal : A05 (Ultrachrome 27%Cr) , A07(15/3 Chrome /Moly Iron) ,A49(Ultrachome 28%Cr. Low C), A51(Ultrachome 36% Cr, Low C)

Rubber : R08(Standard Impeller Rubber) , R26(Standard Liner Rubber ), R55, R38, R33(Natural Rubber- Reinforced), S12 (Nitrile Rubber), S21(butyl Rubber), S42(Polychloroprene) ,S31(Hypalon)
Polyurethane : U01 (Wear Resistant Polyurethane)



Naipu 800gsl Fgd Slurry Pump Tgsl80083DPT1A49 Throatbush

Naipu 800gsl Fgd Slurry Pump Tgsl80083DPT1A49 Throatbush
Naipu 800gsl Fgd Slurry Pump Tgsl80083DPT1A49 Throatbush


Feature

Feature
Durable
High performance
Long lasting
Reasonable Price

Slurry Pump Throat Bush Parts Code
ThroatbushReplacement Slurry Pump Model
E40836/4D-AH, 6/4E-AH
DH20833/2D-HH
EH30834/3E-HH
F60838/6 E-AH, 8/6 F-AH
G808310/8 F-AH, 10/8 ST-AH
FH40836/4F-HH
GG1412013-112/10 G-G
GGH1001312/10G-GH
SL30083M300S-L
8/6S-H-02a8/6S-H
FGH801310/8S-GH
G1008312/10ST-AH
G1208314/12ST-AH
H1408316/14TU-AH
HG14130M16/14TU-GH

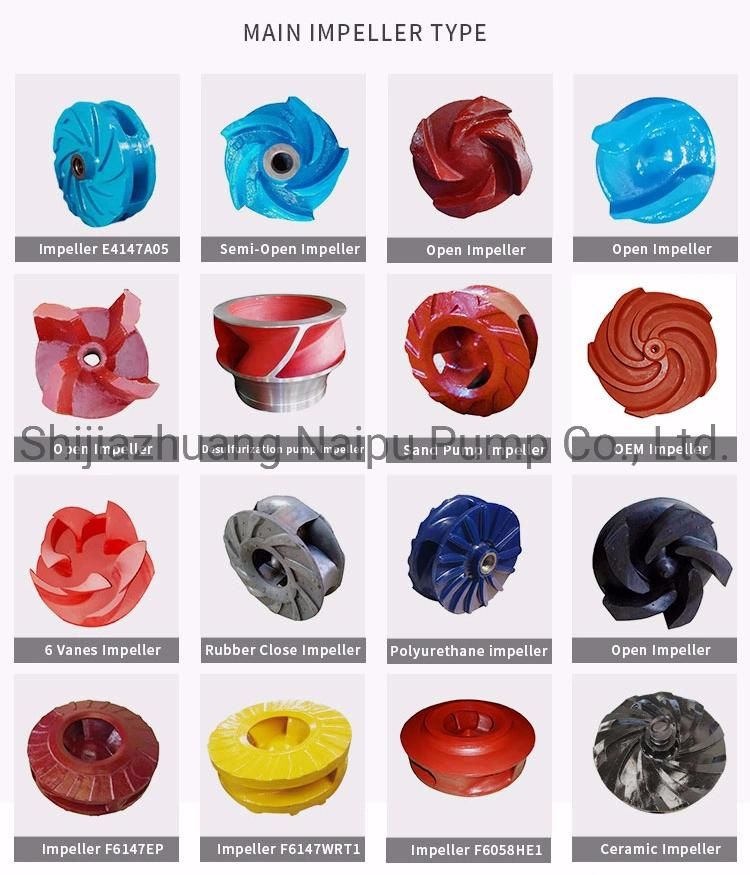

Slurry Pump Impeller Picture


Naipu 800gsl Fgd Slurry Pump Tgsl80083DPT1A49 Throatbush


Main Slurry Pump parts

Main Slurry Pump Parts : Impeller , Volute Liner , Casing , ThroatBush, Frame Plate Liner Insert , Cover Plate , Frame Plate, Pump Liner Expeller , Expeller Ring ,Stuffing Box , Expeller , Pump Shaft , shaft sleeve, Shaft Spacer, Bearing Assembly , Base, Stuffing Box, Gland Assembly, Bearing Housing , Lantern Ring , pump discharge pipe , flange , and so on.

Naipu 800gsl Fgd Slurry Pump Tgsl80083DPT1A49 Throatbush
Metal Material

CodeMaterial #Hardness
HRC
PerformanceApplication
A05KmTBCr26≥56Ranks second only to A07 in abrasion-resistant performance; fair corrosion-resistant performance.High impact load abrasion condition; PH rate ranging from 5 to 12
A07KmTBCr15Mo3≥59Best abrasion-resistant performance; corrosion-resistant performance is inferior to A05High impact load abrasion condition
A33 ≥35Abrasion-resistant performance is close to A03; fair corrosion-resistant performanceOxide slurry with PH rate no less than 1, like phosphor-gypsum in phosphate fertilizer plant, nitric acid, sulph-oacid and phosphoric acid, etc.
A49 ≥43Fair abrasion-resistant performance, close to A03; fair corrosion-resistant performance in media with lower PH rate.Corrosion conditions with low PH rate, especially for flue gas and FGD devices for media of PH≥4; general suitable for lower acid condition.
A12 ≥62Higher abrasion-resistant performance than A05; fair corrosion-resistant performance; suitable for media with PH rate is 6-16, where A05 is not suitable.High abrasive slurry with fine particles.
A61 63-68Optimized abrasion-resistant performance than A12High abrasive slurry with fine particles.

Rubber Material

MaterialMaterial #Applications
Natural RubberR08R08 is low to medium hardness rubber used for impellers where slurry contains fine particles and erosive.
Natural Rubber(soft)R26R26 is soft natural rubber used for liners where slurry contains fine particle and more erosive.
Natural Rubber(soft)R33R33 is widely used for frame plate liners, cover plate liners and impellers. Maximal particle diameter is 10mm; impeller peripheral speed should be less than 25m/s; suitable for temperature not exceeding 75ºC.
Natural RubberR55R55 is widely used for impellers, frame plate liners, cover plate liners and throat bushes. Maximal particle diameter can be 20mm, impeller peripheral speed should be less than 27.5m/s; suitable for temperature not exceeding 75ºC.
EPDM RubberS01S01 is widely used for impellers, frame plate liners, cover plate liners and throat bushes. Maximal particle diameter can be 8mm; impeller peripheral speed should be less than 25m/s; suitable for temperature not exceeding 120ºC(continuous duty) or 140ºC(discontinuous duty).
Nitrile Rubber(NBR)S12S12 is widely used for frame plate liners, cover plate liners, throat bushes, lip seals, impellers and expellers. Maximal particle diameter is 7mm; impeller peripheral speed should be less than 27m/s; suitable for temperature not exceeding 95ºC.
Butyl RubberS21S21 is widely used for impellers, frame plate liners, cover plate liners, expellers, volute seals and throat bushes,. Maximal particle diameter can be 7mm; impeller peripheral speed should be less than 30m/s; suitable for temperature not exceeding 100ºC.
HypalonS31S31 can be used for impellers, frame plate liners, cover plate liners and throat bushes,. It is recommended to use for strong acid slurry with mild or moderate corrosion. Maximal particle diameter can be 10mm; impeller peripheral speed should be less than 30m/s; suitable for temperature not exceeding 110ºC.

NaiPu WorkShop

We has own foundry workshop, Machining workshop, and Assembly workshop . As a result, Naipu Pump is able to ensure that clients save on costs.

Naipu 800gsl Fgd Slurry Pump Tgsl80083DPT1A49 Throatbush


Naipu Main Pump Model:
NAH seriesL(R) ,MHHSP(R)GAF Series
1.5/1B-NAH(R)20A-L1.5/1 C-HH40PV-SP(R)6/4D-G2QV-AF
2/1.5B-NAH(R)50B-L(R)3/2D-HH65QV-SP(R)8/6E-G3QV-AF
3/2C-NAH(R)75C-L4/3E-HH100RV-SP(R)10/8F-G6SV-AF
4/3C-NAH(R)100 D-L4/3X-HH150SV-SP(R)10/8S-G8SV-AF
6/4D-NAH(R)150E-L6/4F-HH200SV-SP12/10G-G2AHF
6/4E-NAH(R)300S-L6/4X-HH250TV-SP14/12G-G3AHF
8/6E-NAH(R)10/8 R-M6S-H 14/12T-G4AHF
8/6R-NAH(R)10/8 E-M8/6S-H 16/14 G-G6AHF
10/8F-NAH(R)12/10F-M8/6X-H 16/14TU-GH
10/8X-NAH(R) 6S-HP 16/14H-GH
12/10ST-NAH(R) 8/6S-HP 18/16G-G
14/12ST-NAH(R) 8/6X-HP 18/16 TU-GH
16/14TU-NAH(R)
20/18G(TU)-NAH(R)


Naipu 800gsl Fgd Slurry Pump Tgsl80083DPT1A49 Throatbush


Our Services

1.Quick Reply.All Message or email will get reply within 8 hours
2.We can help to give some valuable suggestion.
3.We have a group of high quality technicians with rich experience who can solve everything  during the whole process.
4.Perfect after -sales .We will be responsible for the whole life period
5.OEM order.Many material are available ,like High chrome, rubber , stainless steel and etc.,
