Diesel Engine 20 Inch Cutter Suction Dregder with Booster Station

Qingzhou Set Sail Dredging Equipment Machinery Co., Ltd.
  • Type：Cutter Suction Dredger
  • Power Type：Diesel
  • Cyclone Type：Hydrocyclone
  • Slot Type：CTS
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：QHCSD-186
  • Warranty：1year
  • After-sales Service：Lifelong
  • Dredging Depth：15m
  • Discharge Distance：1500m
  • Draft：1.2m
  • Total Length：39m
  • Total Width：8.8m
  • Total Hight：2.2m
  • Pump Size：500ND
  • Water Flow：5000m3
  • Capacity：1000m3
  • Head：54m
  • Discharge Pipe Diameter：600mm
  • Main Engine Power：1342kw
  • Auxiliary Engine Power：582kw
  • Cutter Head Power：260kw
  • Cutter Head Diameter：2000mm
  • Transport Package：Canvas
  • Specification：Capacity 1000m3,h
  • Trademark：Set Sail
  • Origin：China
  • HS Code：895100000
  • Production Capacity：1500 Sets ,Year

Description

       Set sail cutter suction dredger has self-propelled or non self-Propelled portable cutter suction dredger .hull adopts dismantled and re-assemble with box structure. Cutter suction dredger are made of swing winch lifting winch cutter ladder spud device deck crane hydraulic control system PLC system etc. Cutter suction dredger are used widely in sand dredging river dredging lake dredging reservoir desilting waterway dredging and port construction etc

Diesel Engine 20 Inch Cutter Suction Dregder with Booster Station
1.Factory part:          Set sail factory is found in 1992 . it is one of the leader of china dredging machinery equipment industrial. We have manufacture experience more than 20 years so far. Our mainly product : all kinds power of cutter suction dredger (electric hydraulic ) jet suction dredger trailing suction dredger wheel suction dredger chain bucket dredger chain bucket mining dredger land mining machinery multi-function service working boat sand transportation boat sand wishing machinery etc. We can according to customers requirement to make the design and customize the product .

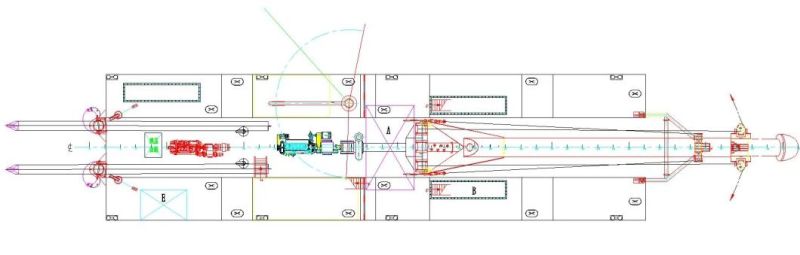

 Diesel Engine 20 Inch Cutter Suction Dregder with Booster Station2.Principle drawing :
Diesel Engine 20 Inch Cutter Suction Dregder with Booster StationDiesel Engine 20 Inch Cutter Suction Dregder with Booster StationSimple to introduce the principle :

Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic  electric or both together)

3. product :( from produce start to the end ) :
           From the product start we purchase the CCS standard plate and to others original material to ready for manufacture .all device adopts high quality and famous brand . normal diesel engine from American Cummins.we can offer the other engine brand Cater . Wechai so on .Slurry pump from Shijiazhuang industrial pump . Siemens PLC system . Hydraulic system from Germany Rexroth etc.
 4.Detailed information
Diesel Engine 20 Inch Cutter Suction Dregder with Booster Station     set sail workers try the best do each detail perfect from the point to the face . provide the high quality to our customer let customers spend the lowest cost the get the biggest value. We can offer timely and high efficiency service let our customer do not worry anything .


5.Packaging and transportation detail shows:
Diesel Engine 20 Inch Cutter Suction Dregder with Booster Station6.20 inch basic parameter:Item / Information Diesel power water flow 5000m3 20 inch cutter suction dredger Maily electric motor power1342kwAuxiliary electric motor power 582kwWater flow 5000m3Concentration 20%Capacity 1000m3/hCutter head diameter 2000mmCutter head power 260 kw Cutter teeth quantity 50 piece
Cutter head motor brandXHS7C7-4300*5.5Pump size 500NDDreding depth 18mDischarge distance 1500mHydraulic brand RexrothPLC SiemensFrequency converter
GD350-1200G-6
 7.Why choose Set sail cutter suction dredger:         So far . our factory have received more than 100 country customers from the worldwide . we have won the recognition more and more customers with the high -quality product and enthusiastic service . Set sail factory expect you join in our huge family.

 Customer feedback :
Diesel Engine 20 Inch Cutter Suction Dregder with Booster StationOur certification :
