• Model NO.：FCYJ-1D
• Warranty：1 Year
• Color：Multi Color
• Customized：Customized
• Condition：New
• Ground Clearance：190mm
• Transmission：Hydraulic - Mechanical
• Engine：Germany DEUTZ
• Speed Performance：0-15 Km,H
• Diesel Engine：DEUTZ
• Steering Angle：36 degree
• Gradeability：25 degree
• Hydraulic Motor：SAUER
• Max Traction：52KN
• Bucket Capacity：1cbm
• Transport Package：Container Shipment
• Specification：1 m3
• Trademark：FUCHENG
• Origin：Shandong, China
• HS Code：84293090
• Production Capacity：150 Sets , Year

Basic Info.

Model NO. FCYJ-1D Warranty 1 Year Color Multi Color Customized Customized Condition New Ground Clearance 190mm Transmission Hydraulic - Mechanical Engine Germany DEUTZ Speed Performance 0-15 Km/H Diesel Engine DEUTZ Steering Angle 36 degree Gradeability 25 degree Hydraulic Motor SAUER Max Traction 52KN Bucket Capacity 1cbm Transport Package Container Shipment Specification 1 m3 Trademark FUCHENG Origin Shandong, China HS Code 84293090 Production Capacity 150 Sets / Year

Product Description

1.3yd3 Diesel underground Side Seat scooptram Mucking loader with best price from China



Main features
1. Equipped with Germany DEUTZ BF4L914 diesel Engine, with low emissions, low pollution, and excellent feature of big power.
2. Excellent performance with American SAUER PV pump and MV motor.
3. Ergonomics designed compartment improve the control of bucket lifting and tilting, guarantee safety and minimal fatigue for operator.
4. Hydraulic double pipe working system, equipped with multi-disk wet brake, self-developed anti-skid differential mechanism of NO-SPIN.
5. Advanced way of three-point suspension articulated, improving layout form of oscillating axle.
6. Optional parts with ejector bucket and side dump buck.


Product parameters

Diesel Engine:	DEUTZ BF4L914 (Germany)
Heaped Bucket Capacity:	1 m3
Max. Traction:	52KN
Running Speed:	0-15km/h
Max .Discharge Height :	1085mm
Max. Rotation Angle:	±36°
Weight :	7T
Hydraulic pump/motor:	Sauer PV22 / MV23
Max. Shovel Force:	45KN
Gradeability:	25°
Min. Turning Radius:	2150mm
Min. Ground Clearance:	190mm
Max. Bucket Height:	3600mm
Dimensions:	6250 *1300*1950mm

Remarks:
The above parameters and configurations with mentioned parts' brand and models is subject to our standard production, we can supply optional parts and tailor-made proposals for customers.

Product Images:



Product Details:
Product shipping:

Before shipment, in order to make sure the quality can meet customer's requirement, the product will be inspected by our engineer and packed in container steadily with cable .

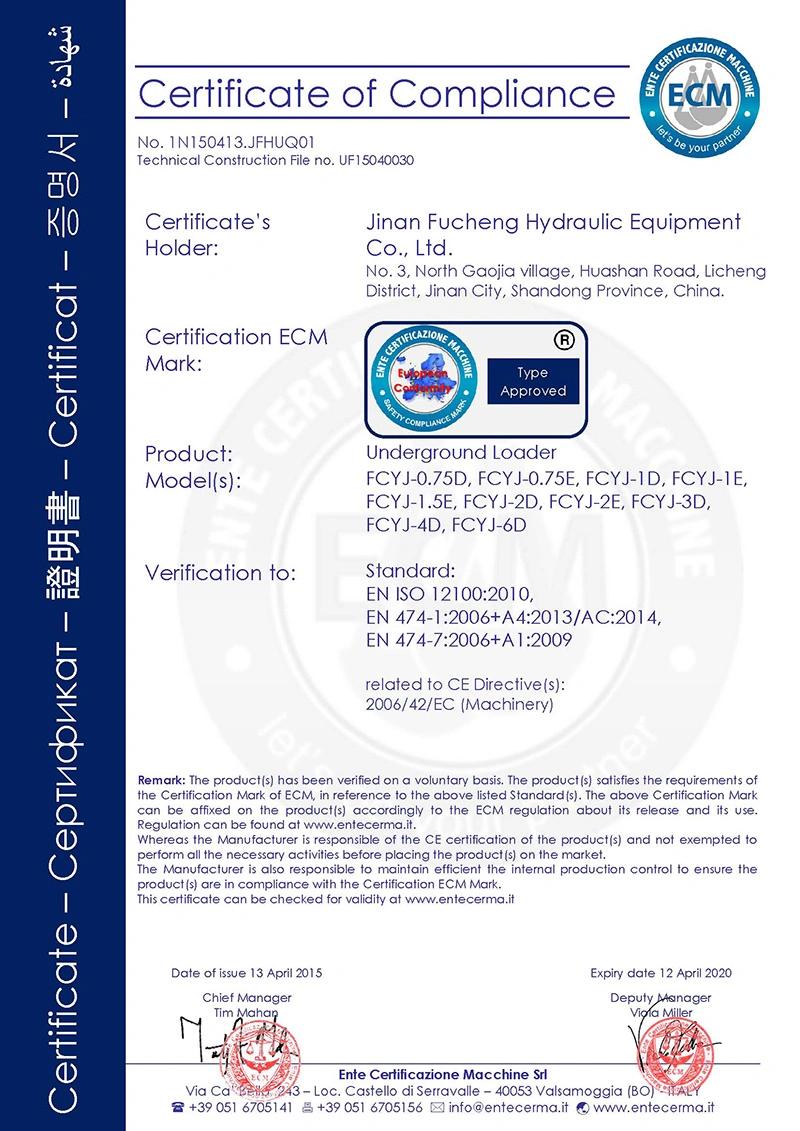

CE and Customer Factory Visit:
Fucheng mining equipment has passed ISO9001 quality management and CE certificate, widely exported to Southeast Asia, Europe, South America, Russia etc., and got consistent high praise by our customers.



Our products have been exported to Mexico, Australia, Africa, South America and other countries for almost 20years. The customers come to visit our factory each year to see our factory and product. After visiting, we established a long and successful partnership.

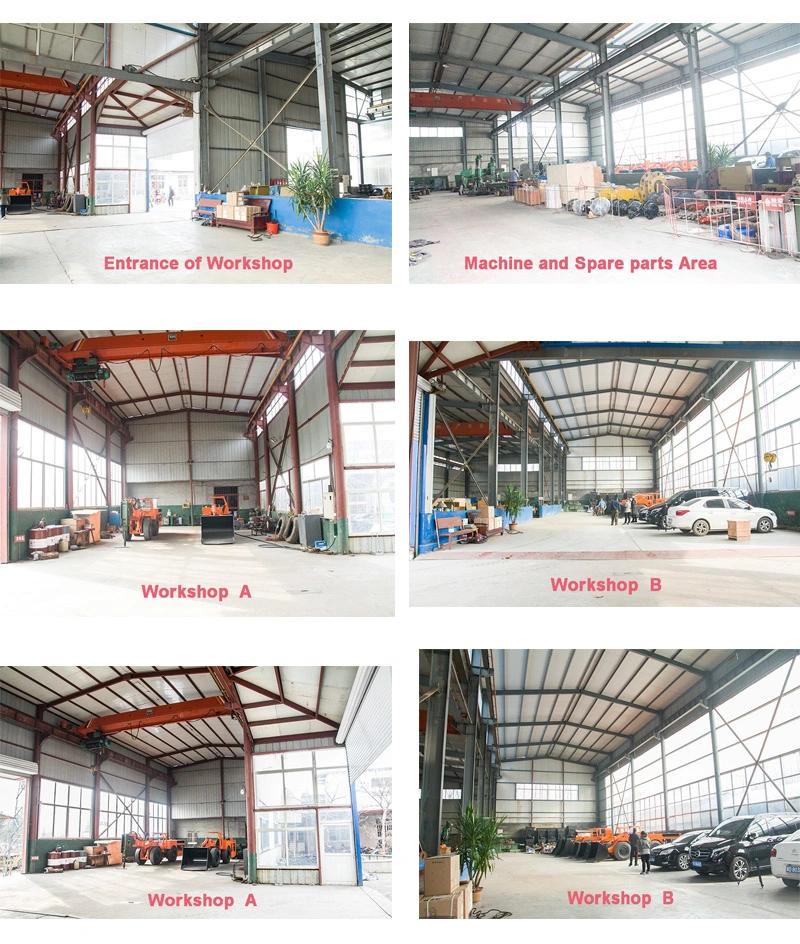

Images of Factory Workshop:


Company profile:

Jinan Fucheng Hydraulic Equipment Co., Ltd. is established and put into production in 2002. It has become a well-known manufacturing enterprise covering an area of 10,000 square meters with 50 employees after nearly 20 years of development.

Jinan Fucheng Hydraulic Equipment Co., Ltd mainly manufactures and sells various models of mine trackless equipment including underground Loader(0.6 cbm - 6 cbm), underground mining truck(8 tons - 35 tons), drilling jumbo(4 m² - 50 m²), underground service vehicle, etc.

Integrity creates brand while prudence makes brilliance! FUCHENG welcomes friends and customers at home and abroad to visit us for mutual benefit and common development !

FAQ:

Q: Are you manufacturer or trading company ?
A: We are manufacturer. We can response to you quickly.

Q: What is the Payment terms ?
A: Usually by TT or LC, other terms could be negotiated.

Q: What is the delivery time ?
A: Normally the lead time is 30 days after receipt of down payment or LC.

Q: What is the warranty of the products ?
A: 12 months calculated from the goods arriving at the destination port.

Q: Do you provide equipment operation training?
A: Yes. We supply remote free online service. Or if need, we can send professional engineers to the working site for equipment installation, adjustment, and operation training.

Q: Can you customize the products?
A: Yes,we can customize as per your requirement.

Q: Where is the products are used?
A: The products are used for engineering, tunnels and all kinds of mines.

Welcome to contact us and obtain more information.
