• Model NO.：KDCSD-450
• Certification：ISO9001:2008
• Usage：Desilting,Sand Pumping
• Generator Set：Diesel
• Dredging Depth：25 M
• Draught：120 Cm
• Brand Name：Keda
• Spray Paint：Corrosion-Resistant Paint
• Cutter Head：Dreding or Sand Mining
• Dimension：34m*6.4m*3.8m
• Standard：Standard
• Cutter Head Diameter：1200mm
• Total Power：670kw
• Discharge End Diameter：300mm
• Suction End Diameter：400mm
• Working Capacity：250m3
• Transport Package：in Bulk
• Specification：SGS,GPM,ISO
• Trademark：KEDA
• Origin：Shandong Province, China
• HS Code：8905100000
• Production Capacity：10sets,Year

Basic Info.

Model NO. KDCSD-450 Certification ISO9001:2008 Usage Desilting/Sand Pumping Generator Set Diesel Dredging Depth 25 M Draught 120 Cm Brand Name Keda Spray Paint Corrosion-Resistant Paint Cutter Head Dreding or Sand Mining Dimension 34m*6.4m*3.8m Standard Standard Cutter Head Diameter 1200mm Total Power 670kw Discharge End Diameter 300mm Suction End Diameter 400mm Working Capacity 250m3 Transport Package in Bulk Specification SGS/GPM/ISO Trademark KEDA Origin Shandong Province, China HS Code 8905100000 Production Capacity 10sets/Year

Product Description

China Supplier river sand pumping dredger Suppliers And Manufacturers1.Features
1)  CCS ISO9001:2008 Certificate;
2) The cutter suction dredger ship is a kind of dismountable cutter suction dredger and non-propelled;
3) The cutter is directly driven by one low speed hydraulic motor;
4) The two spuds are operated by means of a hydraulic ram;
5) Oil for the hydraulic system is supplied by vane pumps.


2. Parameter

MODEL	Workload	Dredging Depth	Lift	Discharge distance
csd150	450m3/h	5m	36m	2500m
csd200	750m3/h	6m	49m	2000m
csd250	1100m3/h	10m	56m	2000m
csd300	2200m3/h	12m	57m	1500m
csd350	3000m3/h	12m	58m	1100m
csd450	4000m3/h	15m	55m	700m
csd500	5000m3/h	16m	62m	500m

3.Application
1)The cutter suction dredger ship is flexible to most kinds of geologic structures and can be widely used in mineral digging, port(channel) dredging and reclamation works.
2) By absorbing advanced technology of Dutch and American related products, this series of dredgers show their characteristics of rational design, all hydraulic control, simple operation, little maintenance and strong power.
3)The capacity of KDTJ dredgers range from 100cbm/h to 1000cbm/h, the dredging depth from 1m to 25m and discharging distance from 500m to 3000m which can satisfy different work demands.
4. Detailed Pictures
1) Cutter Head

2) Engine and Pump

3) Winch

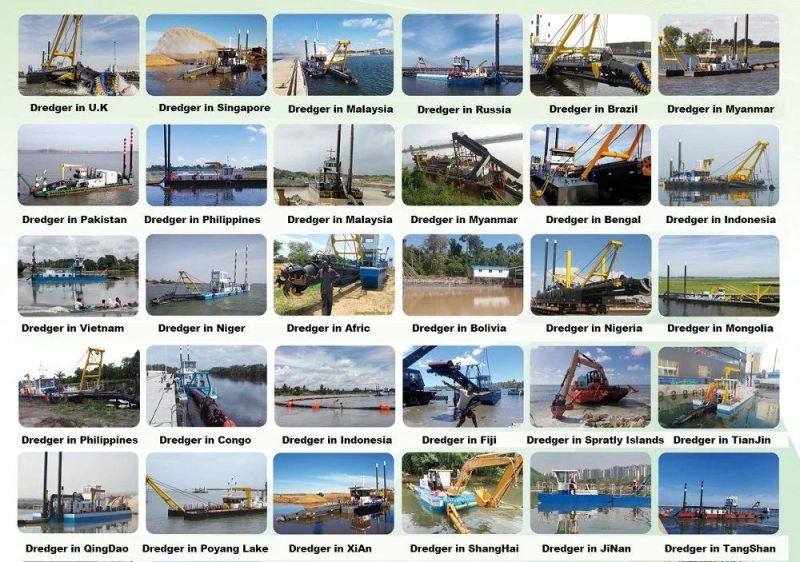

5. Clients' Visiting

6. Company Brief Introduction
1) We are equipped with more than 10,000m2 area , workshop and advanced facilities to build dredgers.
2) We attach the development of scientific research, and form strategic partnership with the major research institutions.
3) Have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,also had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.
