Mining Machinery

Home > Product > Dredger

Customized Cummins Engine Rexroth Hydraulic Cutter Suction Dredger with GPS

Qingzhou Set Sail Dredging Equipment Machinery Co., Ltd.
  • Type：Cutter Suction Dredger
  • Power Type：Diesel
  • Cyclone Type：Hydrocyclone
  • Slot Type：CTS
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：QHCSD-259
  • Warranty：1year
  • After-sales Service：Lifelong
  • Power：Diesel or Electric
  • Diesel Engine Brand：Cummins . Caterpillar. Weichai
  • Hydraulic Brand：Rexroth. Parker
  • Maximum Dredging Depth：30m
  • Maximum Capacity：10000m3,H
  • Maximun Discharge Distance：6000m
  • Maximum Water Flow：50000m3,H
  • Slurry Pump Brand：Shijiazhuang
  • Transport Package：Canvas
  • Specification：New customized
  • Trademark：Set Sail
  • Origin：China
  • HS Code：8905100000
  • Production Capacity：5000 Sets ,Year

Description

            Set Sail Cutter Suction Dredgers, characterized by strong geographical environment adaptability. simple structure. easy maintenance. reliable performance. long service life, low costs and large workload (500 m3/h to 15000 m3/h) are ideal choice for sand field and river sand mining. It can also be used in salt mining in salt lakes. offshore and river dredging. hard riverbed mining. waterway improvement and development. Dug sand after screening and separation is pure and inclusion-free. which is an ideal choice for the building industry.

              Cutter suction dredgers can be installed with ore dressing equipment to extract gold, iron ore and other minerals. featuring a high degree of automation. high extraction accuracy and large processing capacity. It leads the industry both at home and abroad.

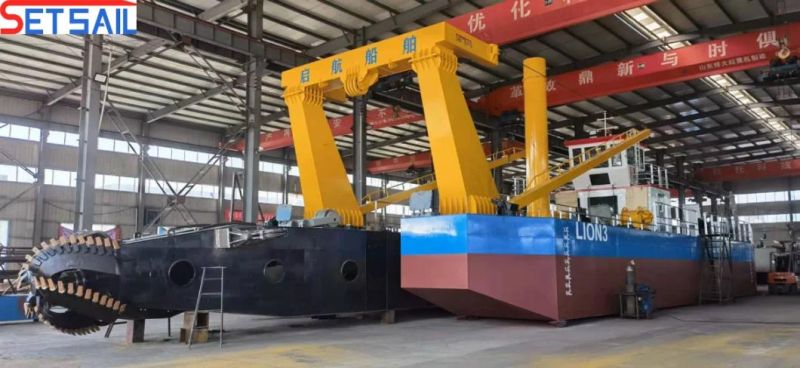

2. Set sail cutter suction dredger image:
Customized Cummins Engine Rexroth Hydraulic Cutter Suction Dredger with GPS
3.Set Sail cutter suction dredger type and parameter:Size 8inch 10inch 12inch 18inch 20inch24inch26inchDredging depth8m8m12m15m15m18m18mWater flow (15%)800m31500m32000m33500m35000m37000m39000m3Capacity120m3225m3300m3525m3750m31350m31350m3Discharge distance 1000m1000m1000m31500m31500m31500m31500m3Total weight85t90t120t180t230t360t380tTotal length31.1m31.1m31m39m39m46m46mTotal width5.5m5.5m7m8.6m8.8m10.2m10.2mTotal depth1.48m1.48m2m2.25m2.2m2.7m2.7mPump size 200250350450500600650Head 46m53m50m65m54m51m57mDischarge pipe dia.250mm350mm400mm500mm600mm700mm800mmEngine brandCummins Cummins Cummins Cummins Cummins Cummins Cummins Main engine power 230kw456kw557kw1137kw1335kw1620kw1950kwAuxiliary engine power100kw122kw200kw260kw405kw700kw700kwPump gerbox brand FadaFadaFadaFadaFadaFadaFadaHydraulic gerbox brandFadaFadaFadaFadaFadaFadaFadaCutter head power50kw64kw78kw/108kw180kw260kw450kw450kwCutter head dia.1000mm1200kw1450kw1800kw2000kw2400kw2400kwSpud weight 2.22t3.42t7.2t16.3t18.65t26.5t26.5tAnchor boom length6m9m12m15m15m18m18mTrolley moving distance 2.5m-3.5m2.5m-4m2.5m-4m4m-6m4m-6m6m-8m6m-8mHydraulic brand RexrothRexrothRexrothRexrothRexrothRexrothRexrothAnchor weight 200kg250kg400kg1t1.5t2t2tPLC brand Siemens siemenssiemenssiemenssiemenssiemenssiemens
4.Set Sail cutter suction dredger main feature:
Customized Cummins Engine Rexroth Hydraulic Cutter Suction Dredger with GPSWe will show off our cutter suction dredger in abroad : it contains installation site . working site .installation team etc.
 Customized Cummins Engine Rexroth Hydraulic Cutter Suction Dredger with GPS8.Customers feedback:
Customized Cummins Engine Rexroth Hydraulic Cutter Suction Dredger with GPS
9. Customer visit our factory :
Customized Cummins Engine Rexroth Hydraulic Cutter Suction Dredger with GPS10. Factory picture:
Customized Cummins Engine Rexroth Hydraulic Cutter Suction Dredger with GPSCustomized Cummins Engine Rexroth Hydraulic Cutter Suction Dredger with GPS
Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.
Factory has manufacture experience more than 20 years.
More than 50 certificated engineers and technicians.
We have certification and patent more than 50 item. It contains ISO CE etc.
Set Sail dredger is sold more than 80 countries .
We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc.

11.Certification :
Customized Cummins Engine Rexroth Hydraulic Cutter Suction Dredger with GPS12. Mainly product :
Customized Cummins Engine Rexroth Hydraulic Cutter Suction Dredger with GPS
