Hydraulic Stone Rock Concrete Splitter Stone Cracker Rock Splitting Machine

Henan Yugong Machinery Co., Ltd.
  • Motor Type：DC Motor
  • Engine Type：Electric
  • Certificate：ROHS, FCC, IQNET, GOST, CE, ISO, CCC
  • Condition：New
  • Splitting Diameter：42-45mm
  • Splitting Time：10-15s

Base Info

  • Model NO.：YG 250 YG350 YG450
  • Splitting Depth：>500mm
  • Wedge Length：250mm
  • Power：4kw
  • Piston Stroke：90,220mm
  • MOQ：1 Set
  • Warranty：1 Year
  • Color：Customized
  • Usage：for Splitting Rock and Stone
  • Transport Package：Wooden Case by Sea, by Air or DHL, UPS and So on
  • Specification：450*410*700mm
  • Trademark：YG
  • Origin：China
  • HS Code：8464909000
  • Production Capacity：10000sets,Month

Description

Splitter ParameterModelYG-250YG-350YG-450Wedge Length(mm)250mm350mm450mmPiston Stroke(mm)90/220mm90/220mm90/220mmDrilling Depth(mm)>500mm>700mm>900mmPunching Diameter(mm)42mm46mm46mmCrack Width(mm)10-20mm10-20mm10-20mmCleavage Time(s)10-15/s10-15/s10-15/sSplitting Force(T)500t800t800tWeight(kg)240kg250kg260kg Pump pack ParameterEngineDieselElectricPneumaticGasolinePower6HP4kw,5.5kw8HP8HPWeight150kg130kg130kg150kg

Working process of Hydraulic rock splitter
Hydraulic Stone Rock Concrete Splitter Stone Cracker Rock Splitting Machine
1. Drill hole in rock,
    Diameter of the hole:YG-250:42mm,YG-350 and YG-450:46mm
    Min. Depth of the hole:YG-250:500mm,YG-350:700mm,YG-450:900mm
2. Insert splitter which is contain wedge and feathers, Start engine to provide hydraulic pressure.
3. Repeat the step 2, until the whole structure is fractured into smaller sections and ready for removal.

Advantage of Hydraulic rock splitter:
1. Enormous splitting force up to 800 tons, vibration free
2. Dust free and near silent operation,Light weight and Easy handling
3. Different sizes of counter wedge and center wedge can use on the same splitter

Product and Working Show

Hydraulic Stone Rock Concrete Splitter Stone Cracker Rock Splitting Machine

Hydraulic Stone Rock Concrete Splitter Stone Cracker Rock Splitting Machine

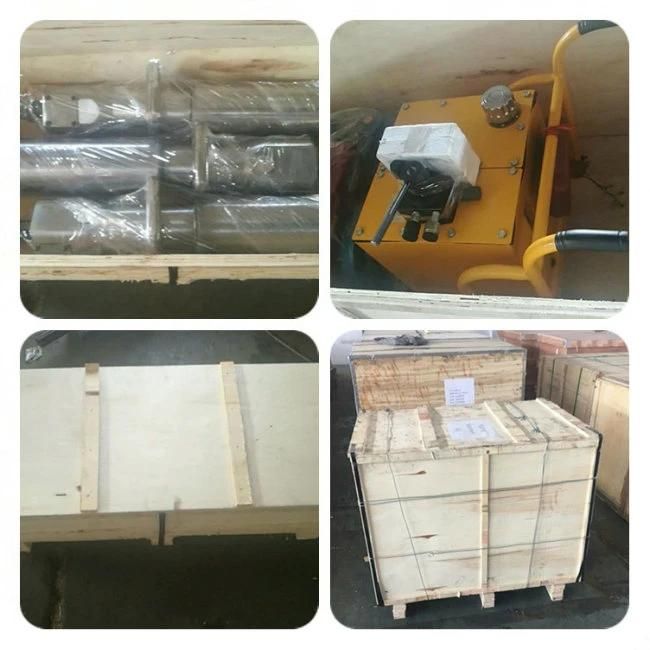

Packaging & Shipping

1. Packaging:  1)Wrapped by proctective film;

               2)Packed by standard import & export wooden cases.

2. Shipping: by train; by sea; by air; by express,etc.
Hydraulic Stone Rock Concrete Splitter Stone Cracker Rock Splitting Machine


Payment Terms

We accept L/C, T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.

About Us

Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.

We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
Hydraulic Stone Rock Concrete Splitter Stone Cracker Rock Splitting Machine
More details,working video,and any questions,please feel free to contact me.
