Heavy Duty Mineral Processing Cyclone Feed Slurry Pump
Shijiazhuang Naipu Pump Co., Ltd.- Type：Spiral Sand Washer
- Capacity：75-100t,h
- Water Consumption：20-150t,h
- Speed of Screw：26rpm
- Motor Type：AC Motor
- Motor Power：15KW
Base Info
- Certification：ISO, CE, TUV
- Rotation Speed：0.8-1.2 r,min
- Wheel Bucket Diameter：2600mm
- Screw Diameter：1000mm
- Name：Slurry Pump
- Size：1 Inch to 18 Inch
- Flow Rate：5 to 5400m3,H
- Head：5 to 118m
- Material：Nature Rubber or High Chrome Alloy
- Transport Package：Plywood Case
- Specification：CE
- Trademark：Naipu
- Origin：Shijiazhuang City
- HS Code：8413709990
- Production Capacity：500 Set
Description
ImpellerCapacity/Q m³/hr Head/m Speed/rpm Max Efficiency/% NPSH/m Nos of Vane Impeller Diameter/mm 1.5X1-NP-NAH 15 12.6--28.8 6--68 1200--3800 40 2--4 5 152 2X1.5-NP-NAH 15 32.4--72 6--58 1200--3200 45 3.5--8 5 184 3X2-NP-NAH 30 39.6--86.4 12--64 1300--2700 55 4--6 5 214 4X3-NP-NAH 30 86.4--198 9--52 1000--2200 71 4--6 5 245 6X4-NP-NAH 60 162--360 12--56 800--1550 65 5--8 5 365 8X6-NP-NAH 300 360--828 10--61 500--1140 72 2--9 5 510 10X8-NP-NAH 560 612--1368 11--61 400--850 71 4--10 5 686 12X10-NP-NAH 560 936--1980 7--68 300--800 82 6 5 762 14X12-NP-NAH 560 1260--2772 13--63 300--600 77 3--10 5 965 16X14-NP-NAH 1200 1368--3060 11--63 250--550 79 4--10 5 1067 20X18-NP-NAH 1200 2520--5400 13--57 200--400 85 5--10 5 1370
NaiPu Main Pump Model
1. NAH, M, L Horizontal Slurry Pump
2. SP Vertical Sump Pump
3. ZJQ Submersible Slurry Pump
4. G Horizontal Gravel Sand Pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF, AHE Froth Pump
8. TL(R) Desulphurization Pump
9. Clean Water Pump
10. OEM Casting machinery parts
The Main pump model of NAH HH M L SP AF G Series
Slurry Pump Spare Parts
Pump Structure
Main Spare Parts
Impeller, Volute Liner, Casing, ThroatBush, Frame Plate Liner Insert, Cover Plate, Frame Plate, Pump Liner Expeller, Expeller Ring,
Stuffing Box, Expeller, Pump Shaft, shaft sleeve, Shaft Spacer, Bearing Assembly, Base, Stuffing Box, Gland Assembly, Bearing Housing,
Lantern Ring, pump discharge pipe, flange, and so on.
OEM Service
Naipu Pump is able to process whatever pump parts and wear parts customers require. The increasing development technology
of reverse engineering has further enabled the company to contra-derive the shape of a sample offered by clients and, with the help
of the latest 3D imaging technology to scan the pump parts, Naipu Pump can acquire accurate drawings (based on aluminum,
iron and wood model patterns) to ensure that the company's replacement parts fit 100% onto customers' pumps.
Naipu Pump understands the process and demands of the mining industry and can offer comprehensive
services tailored to customers' needs.
The material can be high chrome alloy Cr27% , Stainless steel, Alloy , Hastelloy and etc.
The parts are widely used in Main Applications: Heavy Mining | Mineral Processing | Sand and Gravel |Coal Prep | Cyclone Feeds | Aggregate Processing | Fine Primary Mill Grinding | Chemical Slurry Service | Tailings | Secondary Grinding | Industrial Processing | Pulp And Paper | Food Processing | Cracking Operations | Ash Handling | Pipeline Transport | High Velocity Hydraulic Transport |Food Processing | Explosive Sludge In Metal Smelting | River And Pond Dredging | Heavy Refuse Removal | Larger Particle Or Low NPSHA Applications | Continuous (Snore) Sump Pump Operation | Abrasive Slurries | High Density Slurries | Large Particle Slurries | Sump Drainage | Wash down | Floor Drainage | Mixing | Iron Ore | Cooper | Diamond | Alumina | Coal | Gold | Kaolin | Phosphorite | Steel | Palm | Suger | Chemical | Power | FGD | Frac Sand Blending | Construction | City Sewage | etc.
WorkShop
We has own foundry workshop, Machining workshop, and Assembly workshop . As a result, Naipu Pump is able to ensure that clients save on costs.
FAQ
1. What Products does naipu pump mainly produce?
Naipu mainly Produce Slurry Pump, Gravel sand Pump, Dredging Pump, Centrifugal water pump and Spare Parts. Not only Pump parts, but also others wear casting parts if there is drawing or sample.
2. Is Naipu direct factory or trader?
Naipu own mould factory, foundry workshop, Machining Workshop, and Assembly workshop. Welcome to visit Naipu factory anytime.
3. The Min MQQ
The MQQ is one PCS spare parts.
4. What information is required for quotes?
If you need the spare parts, we need to know the parts Code and material.
If you need the whole pump set, we need to know the usage? The flow, head, and SG, Corrosive or not? The more details the better.
Welcome to Contact Me
ShiJiaZhuang NaiPu Pump Co., Ltd
Contact person: Kitty Liu
Shijiazhuang, Headquarters
Add.: No. 368, Xinshi North Road, Shijiazhuang, Hebei Province, China
NaiPu Main Pump Model
1. NAH, M, L Horizontal Slurry Pump
2. SP Vertical Sump Pump
3. ZJQ Submersible Slurry Pump
4. G Horizontal Gravel Sand Pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF, AHE Froth Pump
8. TL(R) Desulphurization Pump
9. Clean Water Pump
10. OEM Casting machinery parts
The Main pump model of NAH HH M L SP AF G Series
| NAH series | L(R) ,M | HH | SP(R) | G | AF Series |
| 1.5/1B-NAH(R) | 20A-L | 1.5/1 C-HH | 40PV-SP(R) | 6/4D-G | 2QV-AF |
| 2/1.5B-NAH(R) | 50B-L(R) | 3/2D-HH | 65QV-SP(R) | 8/6E-G | 3QV-AF |
| 3/2C-NAH(R) | 75C-L | 4/3E-HH | 100RV-SP(R) | 10/8F-G | 6SV-AF |
| 4/3C-NAH(R) | 100 D-L | 4/3X-HH | 150SV-SP(R) | 10/8S-G | 8SV-AF |
| 6/4D-NAH(R) | 150E-L | 6/4F-HH | 200SV-SP | 12/10G-G | |
| 6/4E-NAH(R) | 300S-L | 6/4X-HH | 250TV-SP | 14/12G-G | |
| 8/6E-NAH(R) | 10/8 R-M | 6S-H | 14/12T-G | ||
| 8/6R-NAH(R) | 10/8 E-M | 8/6S-H | 16/14 G-G | ||
| 10/8F-NAH(R) | 8/6X-H | 16/14TU-GH | |||
| 10/8X-NAH(R) | 6S-HP | 16/14H-GH | |||
| 12/10ST-NAH(R) | 8/6S-HP | 18/16G-G | |||
| 14/12ST-NAH(R) | 8/6X-HP | 18/16 TU-GH | |||
| 16/14TU-NAH(R) | |||||
| 20/18G(TU)-NAH(R) |
Slurry Pump Spare Parts
Pump Structure
Main Spare Parts
Impeller, Volute Liner, Casing, ThroatBush, Frame Plate Liner Insert, Cover Plate, Frame Plate, Pump Liner Expeller, Expeller Ring,
Stuffing Box, Expeller, Pump Shaft, shaft sleeve, Shaft Spacer, Bearing Assembly, Base, Stuffing Box, Gland Assembly, Bearing Housing,
Lantern Ring, pump discharge pipe, flange, and so on.
OEM Service
Naipu Pump is able to process whatever pump parts and wear parts customers require. The increasing development technology
of reverse engineering has further enabled the company to contra-derive the shape of a sample offered by clients and, with the help
of the latest 3D imaging technology to scan the pump parts, Naipu Pump can acquire accurate drawings (based on aluminum,
iron and wood model patterns) to ensure that the company's replacement parts fit 100% onto customers' pumps.
Naipu Pump understands the process and demands of the mining industry and can offer comprehensive
services tailored to customers' needs.
The material can be high chrome alloy Cr27% , Stainless steel, Alloy , Hastelloy and etc.
Application:
The parts are widely used in Main Applications: Heavy Mining | Mineral Processing | Sand and Gravel |Coal Prep | Cyclone Feeds | Aggregate Processing | Fine Primary Mill Grinding | Chemical Slurry Service | Tailings | Secondary Grinding | Industrial Processing | Pulp And Paper | Food Processing | Cracking Operations | Ash Handling | Pipeline Transport | High Velocity Hydraulic Transport |Food Processing | Explosive Sludge In Metal Smelting | River And Pond Dredging | Heavy Refuse Removal | Larger Particle Or Low NPSHA Applications | Continuous (Snore) Sump Pump Operation | Abrasive Slurries | High Density Slurries | Large Particle Slurries | Sump Drainage | Wash down | Floor Drainage | Mixing | Iron Ore | Cooper | Diamond | Alumina | Coal | Gold | Kaolin | Phosphorite | Steel | Palm | Suger | Chemical | Power | FGD | Frac Sand Blending | Construction | City Sewage | etc.
WorkShop
We has own foundry workshop, Machining workshop, and Assembly workshop . As a result, Naipu Pump is able to ensure that clients save on costs.
FAQ
1. What Products does naipu pump mainly produce?
Naipu mainly Produce Slurry Pump, Gravel sand Pump, Dredging Pump, Centrifugal water pump and Spare Parts. Not only Pump parts, but also others wear casting parts if there is drawing or sample.
2. Is Naipu direct factory or trader?
Naipu own mould factory, foundry workshop, Machining Workshop, and Assembly workshop. Welcome to visit Naipu factory anytime.
3. The Min MQQ
The MQQ is one PCS spare parts.
4. What information is required for quotes?
If you need the spare parts, we need to know the parts Code and material.
If you need the whole pump set, we need to know the usage? The flow, head, and SG, Corrosive or not? The more details the better.

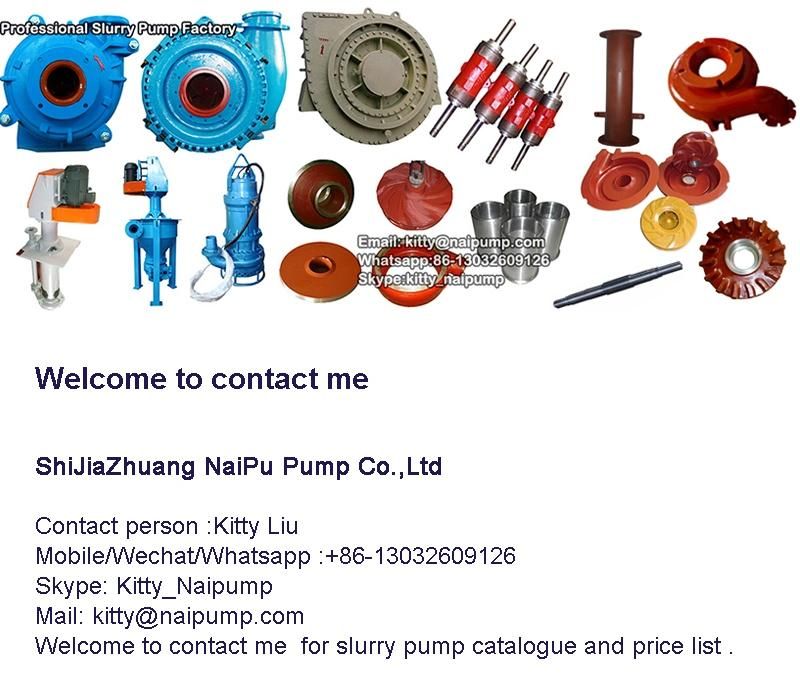

Welcome to Contact Me
ShiJiaZhuang NaiPu Pump Co., Ltd
Contact person: Kitty Liu
Shijiazhuang, Headquarters
Add.: No. 368, Xinshi North Road, Shijiazhuang, Hebei Province, China
