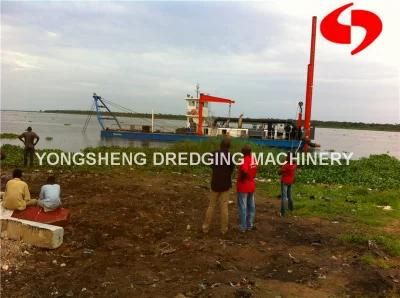

Hydraulic Cutter Head Sand Dredge Boat

Qingzhou Yongsheng Dredging Equipment Co., Ltd.
  • Type：Dredger
  • Certification：ISO 9001,CE,BV,Zc,CCS
  • Water Flow：3500m3,H
  • Dredging Depth：15m
  • Engine：Weichai,Cummins,Jichai
  • Patent No. of Structure：Zl 2012 2 0301711.9

Base Info

  • Model NO.：CSD 450
  • Control System：PLC System
  • Pump：Warm Technology
  • Mining Object：Sand,Mud,Slurry,Silt,Slush,Sludge,Salt,Iron,Gold
  • Transport Package：Nude
  • Specification：CE, ISO9001, ZC, CCS, BV, Patent No.
  • Trademark：yongsheng dredger
  • Origin：Qingzhou City, Shandong Province, China
  • HS Code：89051000
  • Production Capacity：20 Sets

Description

Items Specs Remarks
Total Length 44m
Body Length 35.0m
Hull depth 2.2m
Hull width 8.0m
Main Power 1200KW  Jichai Disel Model, 12V190 Pump Power
  300KW  Disel Model. For hydrulic system
Pump model WN450        Shijiazhuang
Pump Suction Dia 550mm
Discharge Dia 450mm
Water flow 3500m³ /h
Discharge Distanc 1000m
Work' body weight 260T
Spuds 630mm   Two sets 20 metres long
Winches 3 Sets hydraulic winch
auto-navigation no
Operation System PLC control system
Accessaries Tools for diseloil sealwelders ect.
