• Model NO.：PE250*400
• Condition：New
• Product Name：Granite Crusher Machine
• Capacity：5-20 T,H
• Main Products：Mineral Processing Plant
• MOQ：1 Set
• Power：15 Kw
• Weight：2572 Kg
• Color：as Your Request
• Certification：ISO, CE, SGS, etc
• Advantages：Professional Manufacturer
• Transport Package：FCL or LCL
• Specification：1410*1310*1386 mm
• Trademark：Hengchang
• Origin：Jiangxi, China
• HS Code：8474209000
• Production Capacity：100sets,Month

Basic Info.

Model NO. PE250*400 Condition New Product Name Granite Crusher Machine Capacity 5-20 T/H Main Products Mineral Processing Plant MOQ 1 Set Power 15 Kw Weight 2572 Kg Color as Your Request Certification ISO, CE, SGS, etc Advantages Professional Manufacturer Transport Package FCL or LCL Specification 1410*1310*1386 mm Trademark Hengchang Origin Jiangxi, China HS Code 8474209000 Production Capacity 100sets/Month

Product Description

Mineral Processing Gold Ore Crushing Equipment Jaw Stone Crusher Diesel Engine Granite Crusher Machine

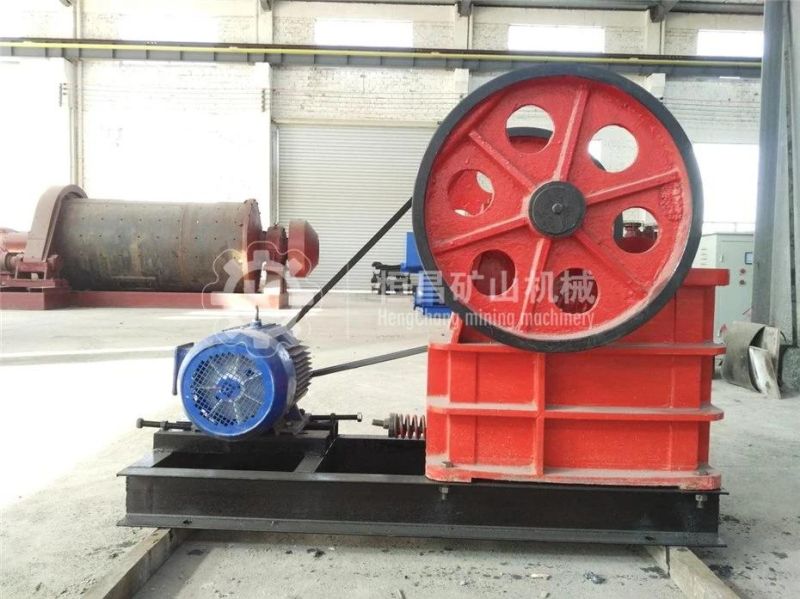

1.Jaw Crusher Introduction:
Jaw crusher are ideal for primary and secondary crushing processing. With the increase of production, our hengchang jaw crusher can greatly reduce the operating costs. And it is of reliability and flexibility. The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity. The jaw has a smaller discharge setting, allowing for a higher degree of flexibility with relative equipment,Positive setting adjustment is easy.



2.Jaw Crusher Main Characteristics:
1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3. lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance
4. simple structure, reliable performance, low maintenance cost.
5. little dust and low noise.





3.Jaw Crusher Working Principle:
The motor drives the belts and the belt wheels, and make the movable jaw up and down by the eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw rises, the angle between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.



4.Jaw Crusher Applications:
Hengchang Brand PE Series Jaw Crusher is widely used for crushing of stone, rock , Cement processing plant glass, metal, ore etc., such as limestone, granite, dolomite, marble stone, etc. in the industry of mining, construction, railway, water conservancy and chemical. Usually, in a whole production line, Gold mining Rock Crusher is for first crushing.



5.Technical parameter of Jaw Crusher:

Model	Max Feeding Size (mm)	Capacity (t/h)	Speed of Spindle (r/min)	Output Size (mm)	Power (kw)	Dimension (L*W*H)mm	Weight (KG)
PE150*250	125	1~3	285	10~40	5.5	875*745*935	1160
PE250*400	200	5~20	300	20~80	15	1410*1310*1386	2572
PE150*750	120	8~35	320	10~40	15	1280*1610*1081	3350
PE400*600	340	14~36	250	40~100	37	1700*1732*1658	5800
PE250*750	210	15~45	300	15~50	30	1695*1920*1646	5000
PE250*1000	210	15~50	330	20~50	30	1550*1990*1370	6800
PE250*1200	210	20~70	320	20~60	45	1670*2190*1430	9000
PE500*750	400	30~80	250	50~120	45	1990*1876*1821	9000
PE600*900	480	56~192	250	75~200	75	2792*3828*2529	18900
PE900*1200	650	180~350	180	100~250	110	5000*4471*3280	55000

6.Successful case:


7.Packing & Delivery:


8. About our factory:
Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd. is located in No.3 Chuangye Road. Guzhang In dustrial Park. Shicheng County. Ganzhou City. Jiangxi Province. China.Our company is engaged in the mineral processing equipment research, development, design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. And mainly the manufacture of the products like as Shaking table. Flotation equipment. Crushing equipment. Magnetic separator. Screening equipment. Classifying equipment. Agitation tank, Feeding equipment. Gravity separation equipment. Wet separation equipment. Spiral chute. Saw-tooth wave jig and Diaphragm Jig. Grinding equipment. Ball mill. Slurry pump. Centrifugal pump, Conveying equipment.

We manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten,lead. zinc. tin. molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile,diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal,precious metals and other minerals. And we have export qualifications, our products sell well all over the world for several years, especially exported to Brazil. India. Indonesia.South Africa. Somalia, Philippines. Malaysia. Sudan, Nigeria. Iran, Russia, Ghana. Kazakhstan Kyrgyzstan.Cambodia,Vietnam,Korea,Mongolia and other countries.




9. Our service:

 1.Pre-sale services:
 (1)Select equipment model;
 (2) Design and manufactLire products according to clients' special requirement;
 (3)Train technical personnel for dients.

2.Services during the sale:
(1) Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.

3. After-sale services:
(1) Assist dients to prepare for the first construction scheme;
(2)Install and debug the equipment;
(3) Train the first-line operators on site;


10. FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.not dealer.Direct factory sale makes price more competitive.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 working days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
