• Model NO.：GF
• Features 3：Low Failure Rate and Operation
• Nature：Cyclone Classification
• Product Type：Powder
• Certification：ISO9001:2008, ISO9001:2000,Ce
• Transport Package：Container or According Requirements
• Specification：200-325 mesh powder classification
• Trademark：Guote
• Origin：Weifang, Shandong
• Production Capacity：50sets,Month

Basic Info.

Model NO. GF Features 3 Low Failure Rate and Operation Nature Cyclone Classification Product Type Powder Certification ISO9001:2008, ISO9001:2000,Ce Transport Package Container or According Requirements Specification 200-325 mesh powder classification Trademark Guote Origin Weifang, Shandong Production Capacity 50sets/Month

Product Description

powder air classifier with cyclone machine for polishing powder or sand project

1. Applications of Air Classifiers:
The classification device is composed of pneumatic classifier, cyclone, collector , induced draft fan,conmtrol cabinet etc . Equiped with second air inlet and vertical impeller rotor ,the materials are fed in visa the bottem roller under the force generated from the induced draft fan and then mixed with first input air to disperse particle and then brought to classifying zone .
Owing to the high rotary speed of classifying rotor, the particles are under the centrifugal force produced by the rotor and centripetal force generated from induced draft fan . When the centrifugal force is stronger than then centripetal force , the coarse particles fall down along inside roller. the second air is induced to sieve the coarse materials and seperate the fine powder that stick on or mixed with coarse . after the coarse material is discharged from classifier . the over -milled powder are collected by the cyclone and pulse collector .
 2. Work Principle:

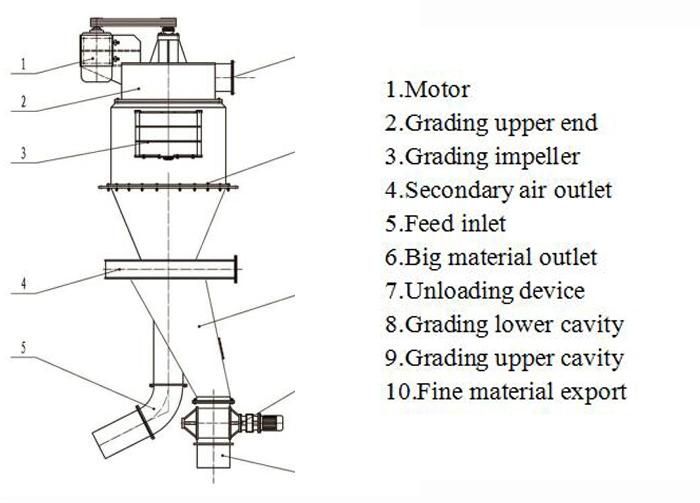

As a forced centrifugal classifier with secondary air entry and stand grading rotor, the classifier is composed of grading rotor, guide vane rectifier and screw feeder. The materials are fed through the upper cartridge and the grains will be sieved and well distributed by the incoming air, which brings the grain to the grading zone. The centrifugal force produced by the fast rotation of gather in the centripetal force by the pneumatic atheism act on the grading grains when the centrifugal force on the grain is greater than the centripetal force. The coarse grains above the grading range will be swirled down along the untrained wall, the second air will be rectified to uniform cockney through the guide wane and separate the thinner grains from the discharge port. The thinner grains below the grading range will be blasted to cyclone separator and collector whereas the purified air will be vented outside

3.Technical Parameter

Model	Capacity(KG)	Classifying Efficiency(%)	product size(um)	power (KW)
GF010	10-50	70-90%	D97=5-50	7
GF020	50-350	70-90%	D97=5-50	15-19
GF050	100-800	70-90%	D97=5-50	25-30
GF100	300-1500	70-90%	D97=5-50	41-48
GF200	500-4000	70-90%	D97=5-50	63-73
GF400	2000-5000	70-90%	D97=5-50	97-120
GF500	3000-6000	70-90%	D97=5-50	110-130
GF600	4000-8000	70-90%	D97=5-50	140-169
GF800	6000-12000	70-90%	D97=5-50	170-210
GF1200	8000-200000	70-90%	D97=5-50	230-380

4. Technical Features:

1,The classifier used within the ceramic protection, less equipment wear,no pollution,high purity.

2,classifier structure is designed,almost by all large particles, high grading precision,large granular control.

3,classification by grading impeller speed and fan free to adjust the air volume, in order to obtain the required product, grading range.

4,adopts low speed vertical single impeller hierarchical structure , material flow is stable, equipment processing capacity,high classification effciency.

5,using multi-stage structure,at the same time granularity classification of several products,the particle size distribution to obtain the ideal.


4. Product advantages:

1.With special design for classifying structure and its high classifying precision,it can block big granular strictly.
2.To get the required product,you can adjust the rotary speed of classifying wheel and air inlet volume.
3.Single vertical rotor with low speed,wteady flow field,high effciency and robust performance.
4.With multi-series structure, it can get products with different size to meet requirement.
