24 Inch Reliable Cutter Suction Sand/Mud Dredger with Cheap Price

Qingzhou Yongli Mining and Dredging Machinery Co., Ltd.
  • Type:Cutter Suction Dredger
  • Power Type:Diesel
  • Cyclone Type:Hydrocyclone
  • Slot Type:CTS
  • Customized:Customized
  • Condition:New

Base Info

  • Model NO.:24 inch
  • Clear Water Flow:7000m3,Hour
  • Dredge Depth:15m
  • Discharge Distance:2000m
  • Engine Brand:Cummins,Caterpillar,Weichai
  • Total Weight:320 Tons
  • Delivery Time:90days
  • Transport Package:Nude Packing
  • Specification:24 inch
  • Trademark:Yongli
  • Origin:Qingzhou, Shandong, China
  • HS Code:8905100000

Description

Basic Info.

Model NO. 24 inch Clear Water Flow 7000m3/Hour Dredge Depth 15m Discharge Distance 2000m Engine Brand Cummins,Caterpillar,Weichai Total Weight 320 Tons Delivery Time 90days Transport Package Nude Packing Specification 24 inch Trademark Yongli Origin Qingzhou, Shandong, China HS Code 8905100000

Product Description

24 inch Reliable Cutter Suction Sand/Mud Dredger with Cheap Price


1. Company Information

Qingzhou Yongli Mining And Dredging Machinery Co., Ltd , is one of China leading company of sand & gold& diamond  mining equipments, which has more than 25 years' experience  in producing cutter suction dredgers,jet  suction dredgers,bucket chain dredger, diamond/gold dredgers, sand washing plant, gold washing plant, sand washing & screening machinery, sand transport barge,work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa,Africa,South America,Middle East and other regions.
Wish our products can meet fully with your requirements and supply you the best solution for your
 dredging project.

2. Brief Introduction of dredger

A cutter suction dredger's (CSD) suction tube has a cutting mechanism at the suction inlet. The cutting mechanism loosens the bed material and transports it to the suction mouth. The dredged material is usually sucked up by a wear-resistant centrifugal pump and discharged either through a pipe line or to a barge. Cutter suction dredgers are most often used in geological areas consisting of hard surface materials (for example gravel deposits or surface bedrock) where a standard suction dredger would be ineffective. They can, if sufficiently powerful, be used instead of underwater blasting.

3. Technical Specification

Item NameDescriptions /Specifications
Production Capacity (solid)1050-1400 cbm/hr for medium sand at a distance of 2000 m.
Slurry concentration, %

Min 15%, Max 20%
Discharge distance (max)Max 2000 m
Dredging depth at 45 degree  4515 m
Min. dredging depth1.8m
Inner Diameter of suction pipe800mm
Inner Diameter of discharge pipe800mm
Average Draught1.8m
Maximum draught2.0m
Total weight320Ton
Total installed power2446KW
Fuel tank capacity50Ton
Delivery time90 days

 4.Our services
a. Design the dredger based on the customer's detailed requirements such as ( clear water flow per hour, dredge depth, discharge distance and engine brand<we can support Weichai,Cummins,Caterpillar>)
b. supply one year's guarantee for the whole dredger except the wear spare parts.
c. supply after-sales installation, trial operation, training the operators, maintence and other services.

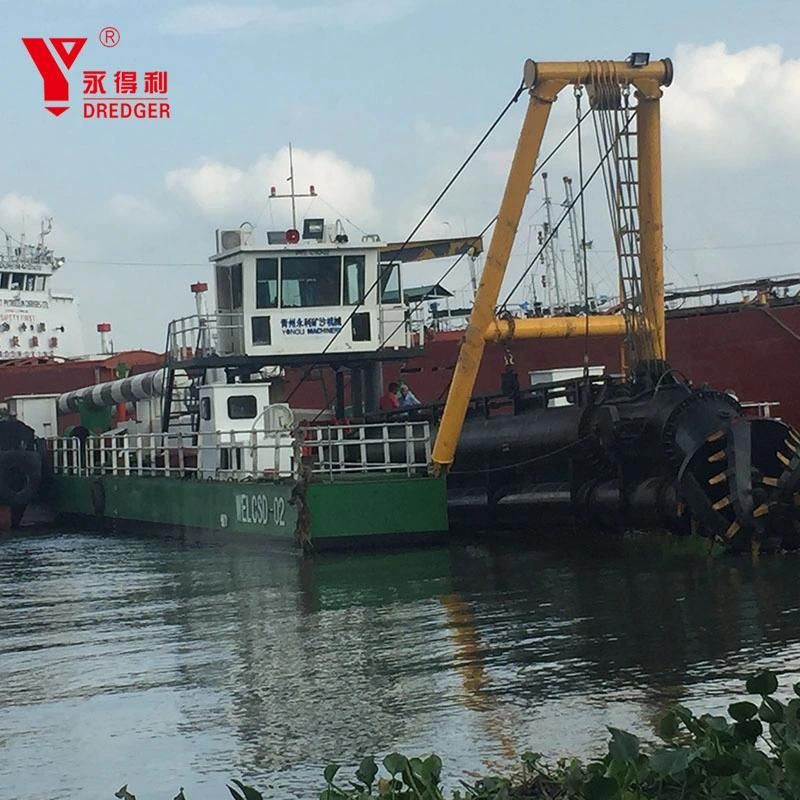

5. Product Pictures
24 Inch Reliable Cutter Suction Sand/Mud Dredger with Cheap Price
24 Inch Reliable Cutter Suction Sand/Mud Dredger with Cheap Price
24 Inch Reliable Cutter Suction Sand/Mud Dredger with Cheap Price
24 Inch Reliable Cutter Suction Sand/Mud Dredger with Cheap Price24 Inch Reliable Cutter Suction Sand/Mud Dredger with Cheap Price24 Inch Reliable Cutter Suction Sand/Mud Dredger with Cheap Price24 Inch Reliable Cutter Suction Sand/Mud Dredger with Cheap Price24 Inch Reliable Cutter Suction Sand/Mud Dredger with Cheap Price
