Hydraulic Diesel Engine 14 Inch Cutter Suction Dredger for Sale

Qingzhou Set Sail Dredging Equipment Machinery Co., Ltd.
  • Type：Cutter Suction Dredger
  • Power Type：Diesel
  • Cyclone Type：Dense Medium Cyclone
  • Slot Type：CTD
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：QHCSD-143
  • Warranty：1 Year
  • After-sales Service：Lifelong
  • Total Length：27m
  • Total Width：7.5
  • Total Depth：3.5
  • Total Weight：145t
  • Main Engine Brand/Power：Cummins ,634kw
  • Auxiliary Engine Power：220kw
  • Pump Size：350
  • Head：45m
  • Dredging Depth：11m
  • Discharge Distance：1500m
  • Discharge Pipe Diameter：300mm
  • Cutter Head Power：70kw
  • Anchor Boom Length：12m
  • Cutter Head Diameter：1450mm
  • Total Fuel Consumption：87kw
  • Transport Package：in Bulk or Container
  • Specification：Capacity 400m3,h
  • Trademark：Set Sail
  • Origin：China
  • HS Code：895100000
  • Production Capacity：3000set,Year

Description

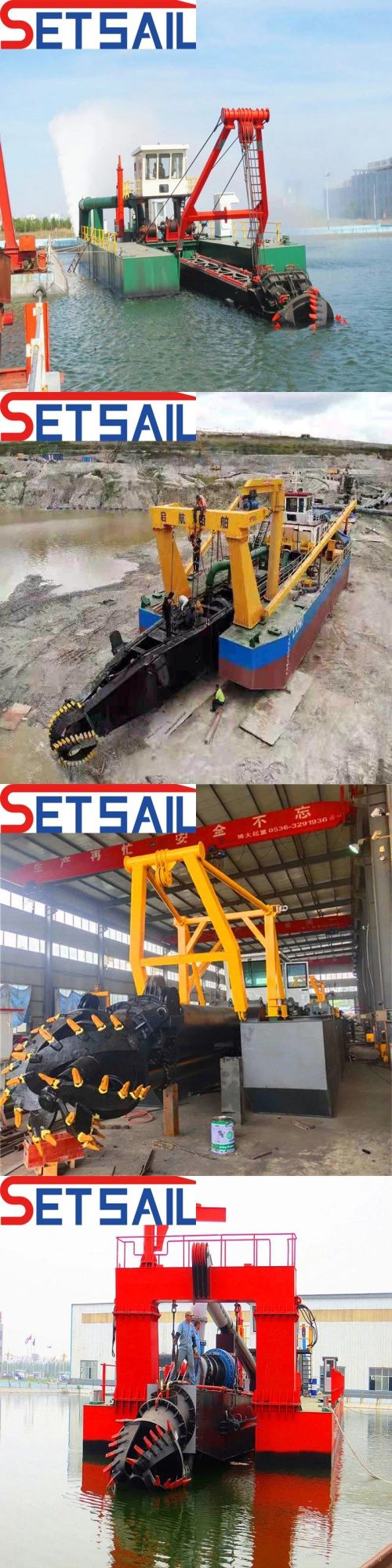

Dredging depth 11mCapacity 400m3Discharge distance1500mDraft 1.2mTotal weight 145tTotal length 27mTotal width 7.5mTotal hight2mMain pump size 350NDWater flow2000m3Head diameter1450mmSpeed 11/22/33Discharge distance pipe diameter250mmMain engine power/brand 634kwAuxiliary engine power /brand220kwPump Gearbox  brand FadaSpeed ratio2:1Hydraulic gearbox brand FadaCutter head diameter 1450mmCutter head power70kwSpud diameter /wall thickness 425mm*20mmSpud Length17mSpud weight7.2tswing winch wire rope diameter22mmLifting winch wire rope diameter24mmtrolley moveing distance 6mOil cylinder diameter 160mmHydraulic system brand Rexroth/HuadeAnchor weight 400kg 2.Product shows :Hydraulic Diesel Engine 14 Inch Cutter Suction Dredger for Sale
3.Product detailed shows :Hydraulic Diesel Engine 14 Inch Cutter Suction Dredger for Sale
4.Cutter suction dredger feature:
Diesel engine Normally cummins on dredger Cater .Weichai Yuchai and other can available
Cutter head Generally drive power hydraulic . Electric power cutter head can offer
Generator setCummins brand generator set Weichai brand others can available
Hydraulic system Hydraulic control system from Germany Rexroth
PLC systemPLC adopts advanced system from Germany Siemens

5.Workshop:Hydraulic Diesel Engine 14 Inch Cutter Suction Dredger for Sale
6.Function of cutter suction dredge :
1Cutter suction dredger is widely used in the river lake .sea .inland waterway and reservoir so on for dredging project
2.Cutter suction dredger is helpful for the port construction and match the wash sand equipment for project
3.Cutter suction dredger can match the mining machinery to get the gold and diamond etc.
4.Cutter suction dredger is suitable for all kinds of working situation , especially river with the high sand content and large project
5.Design of cutter suction dredger can reach the more dredger depth . we can make the design according to the dredging depth working site.
7.Factory introduce :Hydraulic Diesel Engine 14 Inch Cutter Suction Dredger for Sale
Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.
Factory has manufacture experience more than 20 years.
More than 50 certificated engineers and technicians.
We have certification and patent more than 50 item. It contains ISO CE etc.
Set Sail dredger is sold more than 80 countries .
We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc.

 8.Our mainly product :Hydraulic Diesel Engine 14 Inch Cutter Suction Dredger for Sale
