• Model NO.：GTLH
• Energy Saving：Energy Saving
• Warranty：1 Year
• Color：Multi Color
• Customized：Customized
• Condition：New
• Rated Background Magnetic Field：1.4t (1.8t)
• Dielectric Induced Magnetic Field：2.1t (3.6t)
• Usage：Mining Separatoion
• Installation：Engineer Guide
• Feeding Size：<1.2mm
• Function：Deironing Purification
• Slurry Density(%)：10-40
• Ring Speed(R/Min)：3
• Pulsion Stroke：0-30
• Excitation Voltage：0-514(700)
• Transport Package：Standard Sea Worthy Packing for Drum Type Wet Magn
• Specification：depend on different models
• Trademark：Guote
• Origin：Weifang
• HS Code：8474100000
• Production Capacity：50sets,Month

Basic Info.

Model NO. GTLH Energy Saving Energy Saving Warranty 1 Year Color Multi Color Customized Customized Condition New Rated Background Magnetic Field 1.4t (1.8t) Dielectric Induced Magnetic Field 2.1t (3.6t) Usage Mining Separatoion Installation Engineer Guide Feeding Size <1.2mm Function Deironing Purification Slurry Density(%) 10-40 Ring Speed(R/Min) 3 Pulsion Stroke 0-30 Excitation Voltage 0-514(700) Transport Package Standard Sea Worthy Packing for Drum Type Wet Magn Specification depend on different models Trademark Guote Origin Weifang HS Code 8474100000 Production Capacity 50sets/Month

Product Description

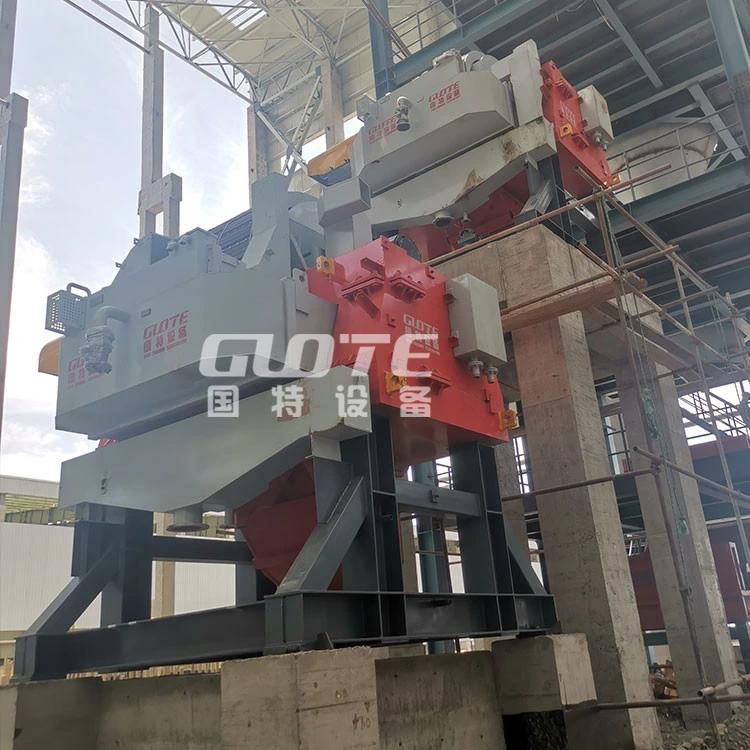

HGMS Wet Type Vertical Ring High Gradient Magnetic Separator

Product Introduction:

The high intensity magnetic separator with most advanced technology and best performance in the worldwide. Whole equipment have swivel vertical rotation and back flush mineral ores functions, following with high frequency vibration motor. It has higher enrichment ratio and can adapt different particle size and concentration and grade of mineral ores. And also have advantages of reliable working and easy operation and maintenance.

Application scope:

It is suitable for the purification of iron and fine grained red ore (hematite limonite siderite, etc.) in non-metallic ore, such as kaolinite



Advantages:

 1,Vertical Swivel with High separation efficiency: Vertical Swivel rotation and back flush mineral
ores make the flat ring jam problem shooting.
 2,Unique magnetic medium with high magnetic intensity: the company patented magnetic medium
could offer high gradient magnetic field with max. Magnetic intensity up to 20000Gs.
 3,Good cooling effect with stable magnetic field. The excitation coil adapt hollow tube with higher
thickness. The water could flow through tube and take away the heat after water circulation
4,Widely used for different field and no need maintenance.

Working principle:

Pulp through the feeding tube into the feed hopper, pulp along the magnetic gap through the swivel,

high permeability of the stainless steel rods inside the ring of the magnetic induction medium
magnetized in the background magnetic field, form a high gradient magnetic field, magnetic medium
pulp in the magnetic particles are adsorbed on the surface of magnetic medium,

the swivel rotation was taken to to the top of the magnetic field area, by flushing with rinse water
pressure, the magnetic materials into concentrate in the bucket, non-magnetic particles along the
magnetic gap into the tailings under drained bucket in order to realize the separation of material

Swivel lower magnetic medium of submerged within the ore slurry surface,at the same time of slurry injection, installed at the side of the tailings boxes of reciprocating motion
stroke box constantly doing, make through tympanic membrane separation indoor pulp do fluctuate,the pulsating flow physical ore grain group always maintain loose state in the process of sorting,
effectively remove the particles in material, significantly improve the grade of concentrate

FAQ:
Q: Why we believe in Weifang GuoteMining Equipment  Company?
A: 1. More than 10 years experience.
Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.
Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
