Mining Machinery

ISO Approval Stone Crusher Machine Impact Crusher for Limestone

Gongyi Hengchang Metallurgical Building Material Equipments Plant
  • Type:Impact Crusher
  • Motor Type:AC Motor
  • Motor Power:30-160kw
  • Application:Mine
  • Materials:Limestone
  • Outlet Size:18-48mm

Base Info

  • Model NO.:PF
  • Inlet Size:35-215mm
  • Condition:New
  • Product Name:Impact Crusher Price
  • Installation:Engineer Guide
  • Spare Parts Supply:Life-Long Provide
  • Guarantee:12 Months
  • Delivery Time:Within 15 Days
  • Keywords:Pcx Series Crusher
  • MOQ:1 Set
  • Weight:3.5-26.5 T
  • Capacity:10-350 T,H
  • Transport Package:Single Small Machine in Wooden Case, Big Model in
  • Specification:depend on the model of jaw crusher
  • Trademark:HC
  • Origin:China
  • HS Code:8474209000
  • Production Capacity:100 Sets,Month

Description

Basic Info.

Model NO. PF Inlet Size 35-215mm Condition New Product Name Impact Crusher Price Installation Engineer Guide Spare Parts Supply Life-Long Provide Guarantee 12 Months Delivery Time Within 15 Days Keywords Pcx Series Crusher MOQ 1 Set Weight 3.5-26.5 T Capacity 10-350 T/H Transport Package Single Small Machine in Wooden Case, Big Model in Specification depend on the model of jaw crusher Trademark HC Origin China HS Code 8474209000 Production Capacity 100 Sets/Month

Product Description

Product Description

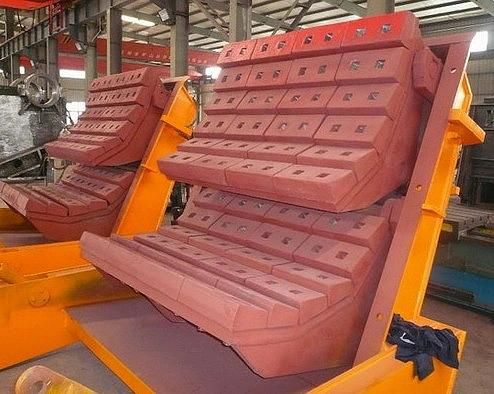

Impact crushers use impact energy to crush materials. Driven by the motor, the rotor revolves at a high speed. Revolving blow bars in the rotor blow the materials. Then the materials will be thrown to the impact plates for secondary crushing. The materials will be shot back to the blow bars again . This process repeats until the materials are crushed to the required size and discharged through the discharging opening at the bottom of the machine. Adjustinng the gap between the impact rack and rotor support, the size and shape of the end products can be changed. so all in all the material is primarily crushed in the first crushing chamber by the high speed rotator and  hammer moving against each other, and then screwed into the secondary chamber for fine crushing hereafter material being discharged.


High Efficient Impact Small Gravel Making Machine


Main Features

1) Optimized design to low-speed, multi-impact crusher crushing chamber, the back-breaking than the average line speed reduced by 20% -25%, with low power consumption for high production capacity

2)A new manufacturing technology, the successful development of a high wear resistance, high toughness of chromium, molybdenum, vanadium alloy, to solve the problem of fragmentation of hard materials. Greatly improving the life of the board hammer

3)Simplified crushing process

4) Feed opening, high crushing chamber to meet the high material hardness, block degree, the product powder less
ISO Approval Stone Crusher Machine Impact Crusher for Limestone

Working Principle Of High Efficient Impact Small Gravel Making Machine:
High Efficient Impact Small Gravel Making MachineHigh Efficient Impact Small Gravel Making MachineCompare to other crushers, our impact crusher has bigger reduction ratio and can fully use the high speed impactenergy of entire rotor. But because the impact crusher board hammer isextremely easy to wear, it also is restricted in the hard material staveapplication. Impact crusher is usually used to break thick garrulous, garrulousor the limestone, the coal, the calcium carbide, the quartz, the dolomite, thecuring iron ore, the gypsum and the industrial chemicals which are hardfollowing brittle material.

 The ideal entering material granularity of our PF type impact crusher is 100-500mm,themost greatly is not surpass the rating. The materail granularity user canajusts the hammer head and the impact board and th gap between component,according to theirs demands.
High Efficient Impact Small Gravel Making Machine
High Efficient Impact Small Gravel Making Machine
Technical Parameters

ModelRotor Size
(mm)
Max. Input Size
(mm)
Output size
(mm)
Motor power
(kw)
Capacity
(t/h)
Weight
(kg)
PF-0807850×700300≤25 85%3010-253500
PF-10071000×700300≤25 85%3715-306500
PF-10101000×1050350≤25 85%55-7550-8012100
PF-12101250×1050350≤25 85%110-13270-12014000
PF-12141250×1400400≤25 85%132-160130-18018500
PF-13151300×1500500≤25 85%160-200180-26023500
PF-13201320×2000500≤25 85%300-350300-35026500
