Hc Wet Magnetite Separator Price/ Magnetite Separation Machine
Gongyi Hengchang Metallurgical Building Material Equipments Plant- Type：Magnetic Separator
- Voltage：380V
- Weight：<1T
- Material：Stainless Steel
- Material Feature：Heat Resistant
- Certification：ISO9001:2008
Base Info
- Energy Saving：Energy Saving
- Warranty：1 Year
- Color：Multi Color
- Customized：Customized
- Condition：New
- Name：Hc Wet Magnetite Separator Price, Magnetite Separa
- Keyword：Magnetite Separation Machine
- Application：Ore
- Installation：Engineers Guide
- Market：Africa
- Price：Negotible
- Advantage：Energy Saving Sand Washing Machine
- Motor：Chinese Famous Brand
- Usage：Magnetite
- Ore：8-220 T,H
- Transport Package：Wooden Case, Standard Container
- Specification：CTB
- Trademark：hengchang
- Origin：China
- HS Code：8505111000
- Production Capacity：10 Set,Day
Description
ModelMagnetic Strength
(mT) Input Size
(mm) Cylinder Speed
(r/min) Power
(kw) Capacity Weight
(kg) Ore
(t/h) Slurry(m3/h) CTB600x900 ≥120 ≤1 40 1.1 8-15 24 850 CTB600×1200 ≥120 ≤1 40 1.5 10-20 32 1000 CTB600×1800 ≥120 ≤1 40 2.2 15-30 48 1300 CTB750×1200 ≥120 ≤1 35 2.2 15-30 48 1500 CTB750×1800 ≥120 ≤1 35 3.0 20-45 72 1800 CTB900×1800 ≥135 ≤1 28 4.0 25-55 90 2400 CTB900×2100 ≥135 ≤1 28 4.0 30-65 100 2650 CTB1050×1800 ≥145 ≤1 22 5.5 35-70 110 3800 CTB1050×2100 ≥145 ≤1 22 5.5 45-88 140 4150 CTB1050×2400 ≥145 ≤1 22 5.5 45-88 140 4500 CTB1200×2100 ≥145 ≤1 19 7.5 62-110 160 5800 CTB1200×2400 ≥145 ≤1 19 7.5 82-120 192 6200 CTB1200×3000 ≥145 ≤1 19 7.5 80-150 240 6800 CTB1500×3000 ≥145 ≤1 14 11 90-170 270 8200 CTB1500×4000 ≥145 ≤1 14 11 115-220 350 9000
Feature of Hc Wet Magnetite Separator Price/ Magnetite Separation Machine
1) Short magnetic circuit,
2) little magnetic flux leakage
3) high magnetic intensity
4) low energy consumption
5) fine beneficiating results
6)simple structure and easy to maintain.
Working principle of Hc Wet Magnetite Separator Price/ Magnetite Separation Machine
When the raw materials flow into the tank body of the magnetic separator firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back is the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall in the ore concentrate box under the effect of gravity. the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe as tailings.

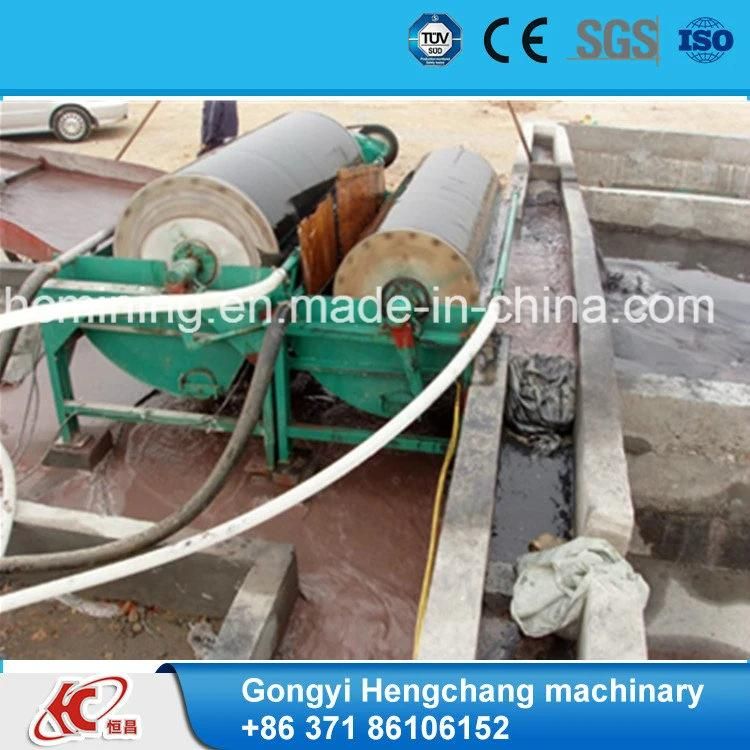

Detailed Images of Hc Wet Magnetite Separator Price/ Magnetite Separation Machine
Working & Delivery
Our Company
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry
