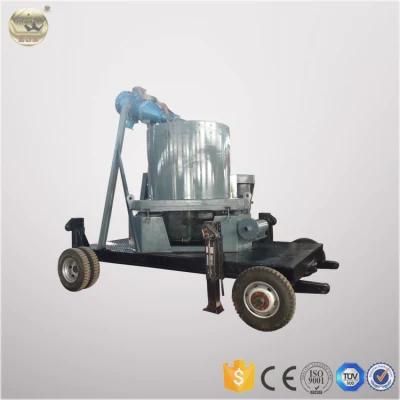

South Africa Knelson Falcon Chrome Gold Ore Wash Mining Centrifugal Concentrator Separator ...

Jiangxi Jinshibao Mining Machinery Manufacturing Co., Ltd.
  • Type:Gravity Separator
  • Voltage:380V
  • Weight:<1T
  • Material:Carbon Steel
  • Certification:ISO9001:2008, ISO9001:2000, CE
  • Energy Saving:Energy Saving

Base Info

  • Model NO.:STLB
  • Warranty:1 Year
  • Color:Silver
  • Customized:Customized
  • Condition:New
  • Recovery Rate:up to 99%
  • Effective Recovery Size:6000-30um
  • Upgrading Ratio:1000 Times
  • Working Type:Not Continuously
  • Processing Capacity:15-30t,H
  • Delivery Time:10-20 Days After Deposit Payment
  • Application Area:Fine Particle Size Rock or Alluvial Gold
  • Sample Testing:Available
  • Operation Video:Available
  • Control System:Available
  • Transport Package:Packing with Iron
  • Specification:CE, ISO9001, SGS, TUV
  • Trademark:Jinshibao
  • Origin:China
  • HS Code:847410
  • Production Capacity:120 Set,Month

Description

ModelSTLB20STLB30STLB60STLB80STLB100Capacity (T/H)1-32-715-3030-7060-100Feeding size (mm)0-30-30-50-50-6Feeding density<50%<50%<50%<50%<50%Fluidization water(m3/H)1-24-610-2020-3540-60Concentrates weight(kg)2-38-1525-4060-7070-80Water pressure(Mpa)0.06-0.10.1-0.150.1-0.20.1-0.20.1-0.2Motor power(kw)0.751.541118.5Dimension(mm)800×700×9801050×900×11501600×1400×18002100×1800×21002300×2000×2200Weight(kg)270420160025003750
