Mining Machinery

Excavator Attachments Hydraulic Breaker

Shandong Jingyuan New Materials Technology Co., Ltd.
  • After-sales Service:24 Hours Online
  • Warranty:One Year
  • Certification:CE
  • Surface Treatment:Polishing
  • Manufacturing Process:Casting
  • Material:Stainless Steel

Base Info

  • Model NO.:Breaker
  • Name:Hydraulic Breaker
  • Type 1:Top Type
  • Type 2:Side Type
  • Type 3:Box Type
  • Colour:OEM
  • Transport Package:Wooden Cases
  • Specification:2000*1000*1000mm
  • Trademark:megacryst
  • Origin:China
  • HS Code:84122100
  • Production Capacity:50000PCS Per Year

Description

Basic Info.

Model NO. Breaker Name Hydraulic Breaker Type 1 Top Type Type 2 Side Type Type 3 Box Type Colour OEM Transport Package Wooden Cases Specification 2000*1000*1000mm Trademark megacryst Origin China HS Code 84122100 Production Capacity 50000PCS Per Year

Product Description

 1.Product description:
Hydraulic breakers are mainly for construction of roads,bridge and mines,construction of ditchs and asphalt pavements,coal mine,quarry and broken stone,quarry and asphalt pavements.There are lots of kinds,firstly,Soosan type,such as MEG45,MEG53,MEG68 MEG75,MEG85,MEG100,MEG140,MEG155,MEG165,MEG175MEG185,MEG 195...Secondly,Furukawa type,such as 15G,20G,30G,40G...They are mainly for different markets.For the chisels,there are for types to choose.moil.wedge,blunt and cone.They are for different uses.
 2.Product types:
 Excavator Attachments Hydraulic Breaker

 3.Specification:
ContentsModelMEG40MEG45MEG53MEG68MEG75MEG85MEG100MEG125
Body  WeightKg      Ibs53               11768         15086       189151        333212         467280          617471           1037618      1361
Total weigh(Side/Top/Slience)kg70/72/10292/92/126155/155/152258/338/356332/407/448557/635/731753/858/9991275/1306/1369
Length(Side)mm   inch940       371053      41.461170       46.061415       55.711480       60.411735       68.311994      78.52285      90
Width (side)Mm  inch176     6.93215       8.46229        9.02295    11.61295     11.61412      16.22390    15.35480     18.9
Operating PressureKg/cm² psl  bar90-120 1280-1700 88-11790-120 1280-1700 88-11790-120 1280-1700 88-117110-140 1562-1988 108-137120-150 1704-2130 118-147130-160 1846-2272 128-157150-170 2130-2414 147-166150-170 2130-2414 147-166
Hydraulic flow rangeI/min Gal/min15-25     4-720-30     5-825-50        6.6-13.240-70             10.5-18.550-90  13.1-23.660-100     15.8-26.380-110 21.1-29.190-120 23.7-31.7
Impact frequencybpm800-1400700-1200600-1100500-900400-800400-800350-700350-650
Diameter  of hosemm  inch12.7     1/212.7     1/212.7     1/212.7     1/212.7     1/219.05    3/419.05    3/425.4       1
Diameter  of Toolmm  inch40      1.5745      1.7753       2.0868      2.6875      2.9585      3.35100      3.94125     4.92
Suitable Carrienton0.8-2.51.2-3.02.5-4.54-76-97-1410-1515-18
ContentsModelMEG135MEG135FMEG140MEG140AMEG150MEG155MEG165MEG175
Body  WeightKg      Ibs845     1860858      1888  927      2042 960            21141095               24121305             28741443             31781935             4262
Total weigh(Side/Top/Slience)kg1653/1847            /18931680/1880    /19301774/2059       /20111809/2094  /20462221/2383   /24602569/2737  /29602752/3157   /29173912/4472   /3904
Length(Side)mm   inch2367      93.192367      93.192414      95.042414      95.042519      99.172367      93.192816      110.93176     125.04
Width (side)Mm  inch500    19.68500    19.68500    19.68500    19.68590    23.23500    19.68590    23.23670    26.38
Operating PressureKg/cm² psl  bar160-180 2272-2556 157-176160-180 2272-2556 157-177160-180 2272-2556 157-178160-180 2272-2556 157-179160-180 2272-2556 157-180160-180 2272-2556 157-176160-180 2272-2556 157-182160-180 2272-2556 157-183
Hydraulic flow rangeI/min Gal/min130-150 34.3-39.6 145-180 38.3-47.5120-180 31.7-47.6120-180 31.7-47.6150-190 39.6-50.2130-150 34.3-39.6 200-260 52.8-68.69210-290 55.5-76.6
Impact frequencybpm400-800360-460350-500350-500350-700400-800250-400200-350
Diameter  of hosemm  inch25.4       125.4       125.4       125.4       125.4       131.75      1¹/431.75      1¹/431.75      1¹/4
Diameter  of Toolmm  inch135      5.31135      5.31140     5.51140     5.51150      5.91155     5.31165      6.5175       6.5
Suitable Carrienton18-2518-2518-2618-2627-3518-2530-4530-45


4.Chisel type:

Chisels typePicturesWorking site
Moil typeExcavator Attachments Hydraulic BreakerBeing applicable to construction of roads,bridge and mines
Wedge typeExcavator Attachments Hydraulic BreakerBeing applicable to construction of ditches and asphalt
Blunt typeExcavator Attachments Hydraulic BreakerBeing applicable to coal mine,quarry and broken stone
Cone typeExcavator Attachments Hydraulic BreakerBeing applicable to quarry and asphalt pavements


6.Strubture and working principle:

Excavator Attachments Hydraulic Breaker1) Cylinder
This contains the moving pistion which strikes the tool.
The seals for both ends of the piston are also located in the cylinder. The seals for the upper end of the piston are located in a removable seal retainer while the seals for the lower end of the pasion are located in provers machined directly into the cylinder.

2) Piston
The piston transfers impact power to the tool.
 generated by hydraulic power.

3) Seal retainer
The seal retainer has oil seals th seal Nitrogen(N2) gas in back head, and to prevent hydraulic oil leakage.

4) Valve
The valve controls reciprocates piston action with hydraulic fluid distribution.

5) Front head assembly
This retains the tool, using the tool pins.By removing these pins, the tool can be changed.

6) Ring Bush
This guides the tool,Ring Bush limits the uppermost position of the toolIt is consumable parts,which should be checked for wear limits. If needed,they should be repalced.

7) Tool
This transfer piston ompact power to the objects.We recommend that various tool shaps according to working circumstance.

8) Rod Pin
This is installed on the front head, and prevents the tool from coming off.

9) Back head assembly
This contains the cushion chamber charged with nitrogen(N) gas that is compressed during upward strokes of the piston, and serves to provide maximum absorption of piston recoil, effciency storing this energy for the next blow

10) Through bolts
These are used to assemble the front head, the cylinder and the back head. They have to be constantly tightened to specified torque. Inspect the bolts for loosening, and re-tighten them weekly.

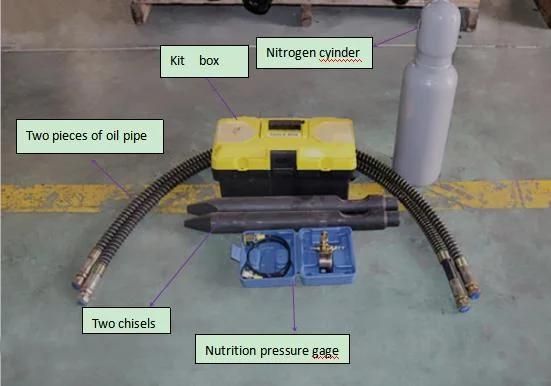

7.Spare parts for free with the breaker and the Packing
Excavator Attachments Hydraulic Breaker

8.Product line:Excavator Attachments Hydraulic Breaker9.Our Exhibition:

Excavator Attachments Hydraulic Breaker
 10.Our certificate:
Excavator Attachments Hydraulic Breaker
11.COMPANY BRIEFS:
Excavator Attachments Hydraulic Breaker
Shandong Jingyuan New Materials Technology Co.,Ltd,established in 2000,is mainly engaged in research and development of rubber floor,rubber track and PU binder.After the development of 17 years,the company enjoys good reputation in industry and the products are popular in domestic and foreign markets.In 2011,the company bought a large number of advanced equipments and absorbed a large number of outstanding staff to build a new factory supplying hydraulic hammers and related parts.

We are a top ranked led lighting products exporter, and has customers in over 60 countries throught the Europe, Asia, South America, Latin America and Middle East. We are committed to creating outstanding products backed by friendly, responsible excellent service to delight our esteemed loyal customers around the world.With best service.With your trust and support,the company will become stronger and can meet your demands better.



12.Company Advantages:

  1. Big production capacity, fast delivery.

  2. Strict QC inspecting rules: all products must be 100% inspected before delivery.

  3. OEM/ODM services are available

  4. 24 hours online service.

  5. Prompt quotation for your inquiry

  6. Quality,reliability and long product life.

  7. Professional manufacturer offers competitive price.

 8. Diversified rich experienced skilled workers.



13.FAQ:

Q1: Are you a factory or trading company? Where is your company located?
A1: We are a factory 100%, not trading company. Our company is located in Weifang, Shandong Province,China


Q2: What is the warranty for our lamps?
A2: We have 3 years warranty for our lamps


Q3: How do you ensure the quality
A3: We are working with four QC processes to guaranty the quality: 1 .For raw materials; 2. During the half of production; 3.Final test before delivery; 4. Selects inspection of the packaged products


Q4: How to do if any quality problems from our reason in the warranty time?
A4: First, take pictures or videos as proof and send to us, and then we will replace new ones for free.


Q5: OEM OR ODM accepted?
A5: Yes, we can do OEM & ODM, logo on the breaker or package both is available.


Q6: Can we get support if we have our own market position?
A6: Please inform us your detailed market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.


Q7: What's your MOQ? Can I order small quantity for testing at first order?
A7: For new client, we accept small order for building mutual trust and long-term business relationship.


Q8: What is your shipping method suggested?
A8: Small package via courier such as DHL,Fedex,UPS,EMS; Bigger package by Air shipment; Big package via Vessel.


Q9: How many days will samples be finished? And how about the mass production?
A9: Generally 7-15 days for samples making. The leading time of mass production will depend on the quantity.


Q10. What's the payment method you accept?
A10:  T/T, Western union.
Q11: Can i visit your company?
Welcome to visit our factory and it is our great pleasure
