Tc4191A05 Impeller for 4/4tc Slurry Pump

Shijiazhuang Naipu Pump Co., Ltd.
  • After-sales Service:Yes
  • Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Standard:AISI, BS, ANSI, GOST
  • Surface Treatment:Sand Blast
  • Manufacturing Process:Casting
  • Material:Alloy Steel

Base Info

  • Model NO.:TC
  • Name:Slurry Pump Impeller
  • Usage:4,4 Tc Pump
  • Parts Code:Tc4191 A05
  • Transport Package:Plywood Case
  • Specification:CE
  • Trademark:Naipu
  • Origin:Shijiazhuang City
  • HS Code:8413709990
  • Production Capacity:500 Set

Description

Tc4191A05 Impeller for 4/4tc Slurry Pump

6AHF Horizontal Froth Pump Throat Bush FAHF6083

Tc4191A05 Impeller for 4/4tc Slurry Pump
NaiPu Main Pump Model
Tc4191A05 Impeller for 4/4tc Slurry Pump

1. NAH, M, L Horizontal Slurry Pump
2. SP Vertical Sump Pump
3. ZJQ Submersible Slurry Pump
4. G Horizontal Gravel Sand Pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF, AHF Froth Pump

8. TL(R) Desulphurization Pump
9. Clean Water Pump
10. OEM Casting machinery parts

The Main pump model of NAH HH M L SP AF G Series

NAH seriesL(R) ,MHHSP(R)GAF Series
1.5/1B-NAH(R)20A-L1.5/1 C-HH40PV-SP(R)6/4D-G2QV-AF
2/1.5B-NAH(R)50B-L(R)3/2D-HH65QV-SP(R)8/6E-G3QV-AF
3/2C-NAH(R)75C-L4/3E-HH100RV-SP(R)10/8F-G6SV-AF
4/3C-NAH(R)100 D-L4/3X-HH150SV-SP(R)10/8S-G8SV-AF
6/4D-NAH(R)150E-L6/4F-HH200SV-SP12/10G-G2AHF
6/4E-NAH(R)300S-L6/4X-HH250TV-SP14/12G-G4AHF
8/6E-NAH(R)10/8 R-M6S-H 14/12T-G6AHF
8/6R-NAH(R)10/8 E-M8/6S-H 16/14 G-G
10/8F-NAH(R)12/10F-M8/6X-H 16/14TU-GH
10/8X-NAH(R) 6S-HP 16/14H-GH
12/10ST-NAH(R) 8/6S-HP 18/16G-G
14/12ST-NAH(R) 8/6X-HP 18/16 TU-GH
16/14TU-NAH(R)
20/18G(TU)-NAH(R)

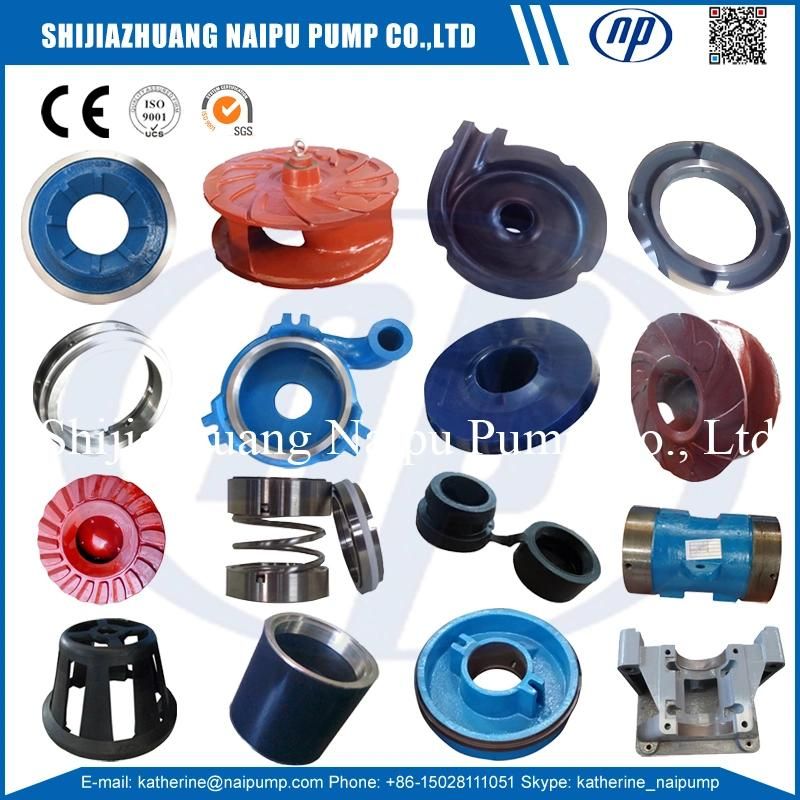

Slurry Pump Spare Parts


Pump Structure

Tc4191A05 Impeller for 4/4tc Slurry Pump


Main Spare Parts


Impeller, Volute Liner, Casing, ThroatBush, Frame Plate Liner Insert, Cover Plate, Frame Plate, Pump Liner Expeller, Expeller Ring,
Stuffing Box, Expeller, Pump Shaft, shaft sleeve, Shaft Spacer, Bearing Assembly, Base, Stuffing Box, Gland Assembly, Bearing Housing,
Lantern Ring, pump discharge pipe, flange, and so on.


Tc4191A05 Impeller for 4/4tc Slurry Pump

OEM Service


Naipu Pump is able to process whatever pump parts and wear parts customers require. The increasing development technology
of reverse engineering has further enabled the company to contra-derive the shape of a sample offered by clients and, with the help
of the latest 3D imaging
technology to scan the pump parts, Naipu Pump can acquire accurate drawings (based on aluminum,
iron and wood model patterns) to ensure that the company's replacement parts fit 100% onto customers'
pumps.
Naipu Pump  understands the process and demands of the mining industry and can offer comprehensive
services tailored to customers' needs.

The material can be high chrome alloy Cr27% , Stainless steel, Alloy ,   Hastelloy and etc.


Tc4191A05 Impeller for 4/4tc Slurry Pump
Application:


The parts are widely used in Main Applications: Heavy Mining | Mineral Processing | Sand and Gravel |Coal Prep | Cyclone Feeds | Aggregate Processing | Fine Primary Mill Grinding | Chemical Slurry Service | Tailings | Secondary Grinding | Industrial Processing | Pulp And Paper | Food Processing | Cracking Operations | Ash Handling | Pipeline Transport | High Velocity Hydraulic Transport |Food Processing | Explosive Sludge In Metal Smelting | River And Pond Dredging | Heavy Refuse Removal | Larger Particle Or Low NPSHA Applications | Continuous (Snore) Sump Pump Operation | Abrasive Slurries | High Density Slurries | Large Particle Slurries | Sump Drainage | Wash down | Floor Drainage | Mixing | Iron Ore | Cooper | Diamond | Alumina | Coal | Gold | Kaolin | Phosphorite | Steel | Palm | Suger | Chemical | Power | FGD | Frac Sand Blending | Construction | City Sewage | etc.





WorkShop

We has own foundry workshop, Machining workshop, and Assembly workshop . As a result, Naipu Pump is able to ensure that clients save on costs.

Tc4191A05 Impeller for 4/4tc Slurry Pump


Welcome  you to visit Naipu Factory
Tc4191A05 Impeller for 4/4tc Slurry Pump


FAQ

1. What Products does naipu pump mainly produce?

Naipu mainly Produce Slurry Pump, Gravel sand Pump, Dredging Pump, Centrifugal water pump and Spare Parts. Not only Pump parts, but also others wear casting parts if there is drawing or sample.


2. Is Naipu direct factory or trader?

Naipu own mould factory, foundry workshop, Machining Workshop, and Assembly workshop. Welcome to visit Naipu factory anytime.

3. The Min MQQ

The MQQ is one PCS spare parts.

4. What information is required for quotes?

If you need the spare parts, we need to know the parts Code and material.

If you need the whole pump set, we need to know the usage? The flowhead, and SG, Corrosive or not? The more details the better.
