• Model NO.：FCYJ-2E
• Warranty：1 Year
• Color：Multi Color
• Customized：Customized
• Condition：New
• Working Mode：Wheeled
• Ground Clearance：250mm
• Rated Capacity：4000kg
• Min. Turning Radius：3000mm
• Running speed：0-15km,h
• Steering Angle：36 degree
• Gradeability：20 degree
• Weight(including hydraulic oil)：12000kg
• Max Shovel：80KN
• Max Traction：100KN
• Dimensions：7300*1540*2050mm
• Cable length：100m
• Max Bucket Height：3740mm
• Rated Power：60kw
• Power type：electric
• Transport Package：Container Shipment
• Specification：1 m3
• Trademark：FUCHENG
• Origin：Shandong, China
• HS Code：84293090
• Production Capacity：150 Sets , Year

Basic Info.

Model NO. FCYJ-2E Warranty 1 Year Color Multi Color Customized Customized Condition New Working Mode Wheeled Ground Clearance 250mm Rated Capacity 4000kg Min. Turning Radius 3000mm Running speed 0-15km/h Steering Angle 36 degree Gradeability 20 degree Weight(including hydraulic oil) 12000kg Max Shovel 80KN Max Traction 100KN Dimensions 7300*1540*2050mm Cable length 100m Max Bucket Height 3740mm Rated Power 60kw Power type electric Transport Package Container Shipment Specification 1 m3 Trademark FUCHENG Origin Shandong, China HS Code 84293090 Production Capacity 150 Sets / Year

Product Description

Chinese factory electric mining underground side seat wheel loaders with cable

Main features1. Advanced Ac three-phase asynchronous electric motor, supply customized electric Motor with various voltage; Compact structure, flexible and convenient operation.2. Equipped with American DANA Torque converter and Power shift Transmission.
3. Excellent performance with Parker hydraulic pump and valve, MICO valve.
4. Ergonomics designed compartment improve the control of bucket lifting and tilting, guarantee safety and minimal fatigue for operator.
5. Hydraulic double pipe working system, equipped with multi-disk wet braker, self-developed anti-skid differential mechanism of NO-SPIN. Advanced way of three-point suspension articulated, improving layout form of oscillating axle.
6. Optional parts with ejector bucket and side dump buck.


Product parameters

Item	Parameters
Heaped Bucket Capacity	2m3
Rated Capacity	4000kg
Max. Traction	100 KN
Max. Shovel Force	80KN
Running Speed	0-10.1km/h
Grade ability	20°
Max .Discharge Height	1400mm
Min. Turning Radius	3000mm
Max. Rotation Angle	±36°
Min. Ground Clearance	250mm
Rated Power	60kw
Max. Bucket Height	3740mm
Effective Cable Length	100m
Weight(include hydraulic oil)	12T
Dimensions	7300*1540*2050mm

Remarks:
The above parameters and configurations with mentioned parts' brand and models is subject to our standard production, we can supply optional parts and tailor-made proposals for customers.

1.Product Show:







2.Product Details:

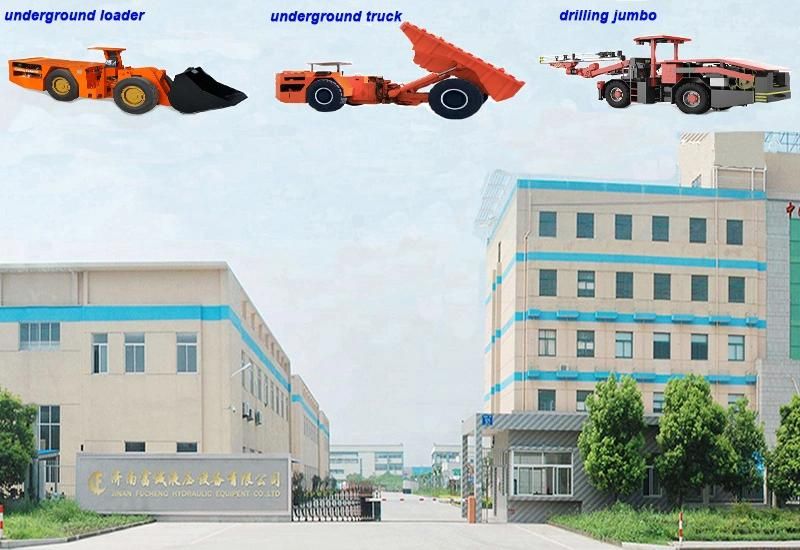

3.Images of Factory Workshop:


4.Customer Factory Visit:


Our products have been exported to Mexico, Australia, Africa, South America and other countries for almost 20years. The customers come to visit our factory each year to see our factory and product. After visiting, we established a long and successful partnership.

5.Company Information:



Jinan Fucheng Hydraulic Equipment Co., Ltd was established in 2002.Fucheng has advanced R&D technology, sophisticate technical team and abundant experience.

We focus on the manufacture, trading, maintenance and service of underground mining equipment. At the same time, we supply import and export service for domestic & abroad customers.

Our underground mining equipment covers:(1).Underground Loader: 0.6 cbm - 6 cbm(2).Underground Truck: 8 tons - 35 tons(3).Drill Jumbo: 4 m² - 50 m²(4).Scaling Jumbo: 4 m² - 50 m²(5).Spare parts & maintenance
Fucheng key value is "Guarantee quality, Build a harmonious business, mutual development", we supply convenient & fast Pre-sale consultation and after-sale service, and take maintain of customers as our principle. Fucheng welcome all the friends both at home and abroad to visit and cooperate with us !

6.Contact Information:




FAQ:

Q: Are you manufacturer or trading company ?
A: We are manufacturer. We can response to you quickly.

Q: What is the Payment terms ?
A: Usually by TT or LC, other terms could be negotiated.

Q: What is the delivery time ?
A: Normally the lead time is 30 days after receipt of down payment or LC.

Q: What is the warranty of the products ?
A: 12 months calculated from the goods arriving at the destination port.

Q: Do you provide equipment operation training?
A: Yes. We supply remote free online service. Or if need, we can send professional engineers to the working site for equipment installation, adjustment, and operation training.

Q: Can you customize the products?
A: Yes,we can customize as per your requirement.

Q: Where is the products are used?
A: The products are used for engineering, tunnels and all kinds of mines.

Welcome to contact us and obtain more information.
