• Model NO.：CSD
• Color：Customerized
• Transport Package：Container
• Specification：CE, ISO9001: 2008
• Trademark：KEDA
• Origin：Weifang, Shandong
• HS Code：8905100000
• Production Capacity：200PCS,Year

Basic Info.

Model NO. CSD Color Customerized Transport Package Container Specification CE, ISO9001: 2008 Trademark KEDA Origin Weifang, Shandong HS Code 8905100000 Production Capacity 200PCS/Year

Product Description

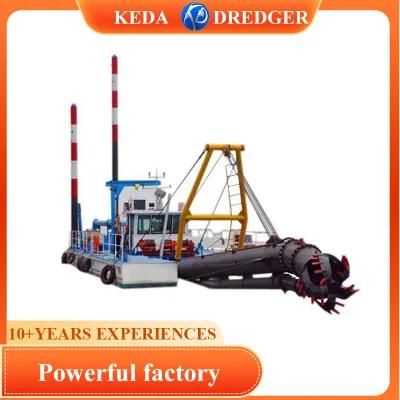

River sand pump dredger

I. Production Description of River sand pump dredger

>This cutter suction dredger is designed to operate in sheltered inshore waters and under tropical climate conditions. Build under enterprise standard with reference to ZC standard.
>Build according to the Enterprise Standard, design reference to the ZC Standard.
>She is of all welded steel construction ,bottom plate 8 mm thickness and shell plating 6 mm thickness, frame distance 500 mm, with 2 fixed spuds on the aft ,ladder support A frame in the front and 3 hydraulic operated winches ,2 double bollards(fwd and aft) and 1 single bollard in the center on each side.
>The whole dredger is dismountable in road transportable sections.
>The engines and dredge pump are located in the center pontoon, the 2 side pontoons serve as fuel bunkers, ballast tanks and store.
>Engine room and pump section are accessible by watertight hatches
>Cutter shaft runs on roller type bearings in an enclosed shaft housing flooded with lubrication oil a lock oil tank to ensure a positive pressure inside the bearing housing is located on top of the wheelhouse.
>The spacious control cabin is ergonomically designed fitted on a raised platform with all around non obstructed view  2 operators consoles containing engine instrumentation and controls for winches, dredge pump, suction and discharge pressure gauges, navigation light controls, air-conditioned and well insulated .
>Below the control cabin is a changing room located with table, chairs and washbasin
>The underwater section of the dredger is protected with a marine coating system and cathodic protection for use in a saltwater environment.


Features:

1.Simple, rapid assembly and dismantling.
2.Spare parts and floating pipe available.
3.Transportable by road, rail or sea.
4.Reliable hydraulic system.
5.Fresh water engine cooling system.
6.Efficient fuel consumption.
7.One-man operation.
 8.Wonderful after-service







II. Basic Parameters of River sand pump dredger

Model	Workload	Dredging Depth	Lift	Discharge Distance
CSD150	450m3/h	5m	36m	2500m
CSD200	750m3/h	6m	49m	2000m
CSD250	1100m3/h	10m	56m	2000m
CSD300	2200m3/h	12m	57m	1500m
CSD350	3000m3/h	12m	58m	1100m
CSD450	4000m3/h	15m	55m	700m
CSD500	5000m3/h	16m	62m	500m

III. Packing And Shipping of River sand pump dredger

Way of Packing                                                                                                       * FLC&LCL Export standard container 20/40 GP.
* Steel support & iron sheet sea- worthy package.
* Load: export software scientific loading work
Transportation
* By sea freight.
* MSK/MSC/APL/EMC/WANHAI/KLINE
* Air delivery services
* We will remind you before boat arrives.

IV.OUR SERVICE of River sand pump dredger
1.Rational and practical design according to customers' request proved.
2.Within warranty period,we provide free repair if quality problems emerge.
3.Engerneers are avaliable to service oversea to assemble and test the machine according to the contract.
4.Free training of the first batch of operater proved, any question or problem about the products can be answered via online support,phone calls or on-sit support 24 hours.

V. FAQ of River sand pump dredger
In order to provide you with efficient & suitable quotation and assistance for you, could you kindly tell me the following information:
1) Output capacity(m3/h)

2) Max.dredging depth(m)

3) Discharge distance(m)



If you have any question about River sand pump dredger or company, please let us know, we will try our best to make you satisfied.
