Hot sale mining underground hydraulic tunnel scoop loader with 4m3 capacity
JINAN FUCHENG INTERNATIONAL TRADE CO., LTD.- Shift Transmission Brand：DANA
- Max. Traction Force：100KN
- Torque Converter Brand：DANA
- Hydraulic Pumps：Parker
- Number of cylinders：6
- Gradeability：20 degree
Base Info
- Model NO.：FCYJ-2D
- Max. Steering Angle：36 degree
- Engine Brand：DEUTZ
- Engine Power：84KW,2300rpm
- Raising Time：7 s
- Dumping Time：6 s
- Hydraulic Tank Capacity：156L
- Total Weight：12 ton
- Max. Shovel Force：80KN
- Running Speed：0-10 km,h
- Transport Package：Container Package
- Specification：7300mm*1540mm*2050mm
- Trademark：FUCHENG
- Origin：Shandong, China
- HS Code：84293090
- Production Capacity：200PCS Per Year
Description
2.The braking system adopts hydraulic double pipe working system, and equipped with multi-disk wet braker, self-developed anti-skid differential mechanism of NO-SPIN, performs rather well even in bad conditions like harsh, high water saturation environments and muddy tunnel.
3.The main components of the hydraulic system adopts well-known manufacturers ' products both at home and abroad, manual operating diverter valve control the steering. Using pilot valve equipped with ergonomics handle to control the bucket arm lifting and bucket tilting.
4.Elaborate designed and manufactured electric scooptram has beautiful shape and high work efficiency. Mainly used for mine, loading and transporting the loose material which is left after bursting. It can also be used for tunnel engineering such as underground railway, highway and water conservancy, especially suitable for workingplane of poor work conditions , narrow working platform, low and muddy working face.
Main Technical Parameters:
| Engine: | DEUTZ F6L912 63KW |
| Transmission System: | DANA RT20326 |
| Braking System: | Working Braking, Parking Brake |
| Maximum Lifting Height: | 3740mm |
| Total Weight: | 12T |
| Maximum Traction: | 100KN |
| Hydraulic Tank Capacity: | 156L |
| Steering Angle: | ±33° |
| Torque Converter: | DANA C272 |
| Drive Axle Type: | NO-SPIN |
| Bucket Capacity: | 2 m3 |
| Min. Ground Clearance: | 250mm |
| Gradeability: | 16° |
| Max. Shovel Force: | 80KN |
| Running Speed: | 0-10km/h |
| Min. Turning Radius: | 5200mm |
| Max .Discharge Height: | 1600mm |
| Dimensions(Length* Width*Height): | 7300 * 1500 * 2050mm |
1.Product Show:

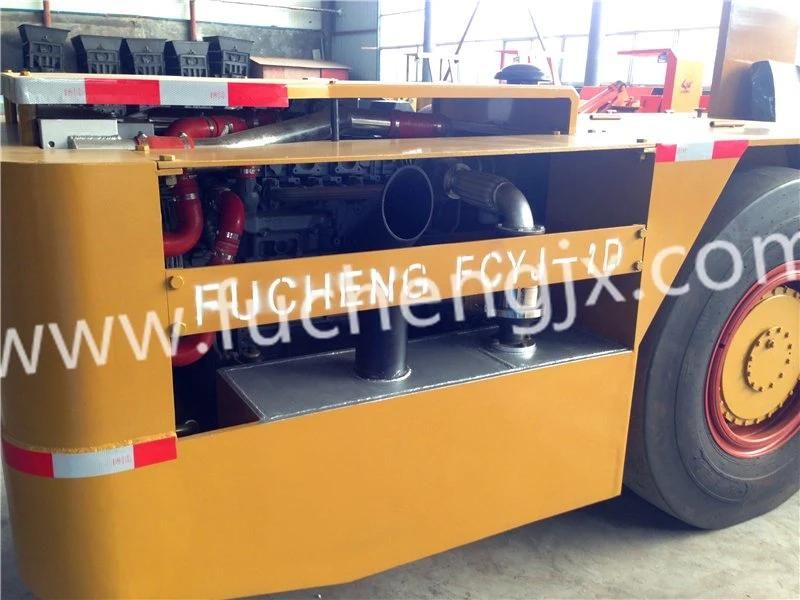

2.Product Detail:
3.Packing shipping:
4.CE certification and Customer Factory Visit:
On Oct 5th 2016 , purchase managers of Chile mining company came to our company and visited our factory before goods shipping. We introduced our products including electric and diesel scooptrams, mining underground trucks and drilling jumbos to our customers. He was very satisfied with the good performance and easy operation of our products and we arranged the shipment very smoothly that day.
Our products have been exported to Mexico, Australia, Africa, South America and other countries for almost 20years. The customers come to visit our factory each year to see our factory and product. After visiting, we established a long and successful partnership.
5. Our Advantages
(1)Good Quality and competitive Factory Price
(2)More than 20 years' experience as a manufacturer
(3)Quality Certification of CE ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions
6.Factory Workshop:
7.Company Information:
Jinan Fucheng Hydraulic Equipment Co., Ltd. is established and put into production in 2002. It has become a well-known manufacturing enterprise covering an area of 10,000 square meters with 50 employees after nearly 20 years of development.
Jinan Fucheng Hydraulic Equipment Co., Ltd mainly manufactures and sells various models of mine trackless equipment including underground Loader(0.6 cbm - 6 cbm), underground mining truck(8 tons - 35 tons), drilling jumbo(4 m2 - 50 m2), underground service vehicle, etc.
Integrity creates brand while prudence makes brilliance! FUCHENG welcomes friends and customers at home and abroad to visit us for mutual benefit and common development !
8.Contact Information:
FAQ:
1.Q: Are you manufacturer or trading company ?
A: We are manufacturer. We can response to you quickly.
2.Q: What is the Payment terms ?
A: Usually by TT or LC, other terms could be negotiated.
3.Q: What is the delivery time ?
A: Normally the lead time is 30 days after receipt of down payment or
L/C.
4.Q: What is the warranty of the products ?
A: 12 months calculated from the goods arriving at the destination port.
5.Q: Do you provide equipment operation training?
A: Yes. We supply remote free online service. Or if need, we can send
professional engineers to the working site for equipment
installation,adjustment, and operation training.
6.Q: Can you customize the products?
A: Yes,we can customize as per your requirement.
7.Q: Where is the products are used?
A: The products are used for engineering, tunnels and all kinds of
mines.
