Mining Machinery

Mining electric underground side seat LHD scooptram for tunnel

JINAN FUCHENG INTERNATIONAL TRADE CO., LTD.
  • Working Mode:Wheeled
  • Ground Clearance:195mm
  • Rated Capacity:2000kg
  • Max. Bucket Height:3000mm
  • Running speed:0-15km,h
  • Steering Angle:36 degree

Base Info

  • Model NO.:FCYJ-1E
  • Gradeability:25 degree
  • Weight:7000kg
  • Max Shovel:45KN
  • Max Traction:52KN
  • Min. Turning Radius:2350mm
  • Max .Discharge Height:1085mm
  • Rated Power:45kw
  • Cable length:100m
  • Dimensions:6250*1340*1950mm
  • Transport Package:Container Shipment
  • Specification:1 m3
  • Trademark:FUCHENG
  • Origin:Shandong, China
  • HS Code:84293090
  • Production Capacity:150 Sets , Year

Description

Basic Info.

Model NO. FCYJ-1E Gradeability 25 degree Weight 7000kg Max Shovel 45KN Max Traction 52KN Min. Turning Radius 2350mm Max .Discharge Height 1085mm Rated Power 45kw Cable length 100m Dimensions 6250*1340*1950mm Transport Package Container Shipment Specification 1 m3 Trademark FUCHENG Origin Shandong, China HS Code 84293090 Production Capacity 150 Sets / Year

Product Description

Mining electric underground side seat LHD scooptram for tunnel

Product Description:
1. Advanced Ac three-phase asynchronous electric motor, supply customized electric Motor with various voltage; Compact structure, flexible and convenient operation.
2. Excellent performance with American SAUER PV pump and MV motor.
3. Ergonomics designed compartment improve the control of bucket lifting and tilting, guarantee safety and minimal fatigue for operator.
4.Advanced way of three-point suspension articulated, improving Iayout form of oscillating axle.
5. Optional parts with ejector bucket and side dump buck.

Product parameters
ItemParameters
Heaped Bucket Capacity1m3
Rated Capacity2000kg
Max. Traction52 KN
Max. Shovel Force45KN
Running Speed0-15km/h
Grade ability25°
Max .Discharge Height1085mm
Min. Turning Radius2350mm
Max. Rotation Angle±36°
Min. Ground Clearance195mm
Rated Power45kw
Max. Bucket Height3000mm
Effective Cable Length100m
Weight(include hydraulic oil)7T
Dimensions6250*1340*1950mm
Remarks:
The above parameters and configurations with mentioned parts' brand and models is subject to our standard production, we can supply optional parts and tailor-made proposals for customers.


1.Product Show:

Mining electric underground side seat LHD scooptram for tunnel
Mining electric underground side seat LHD scooptram for tunnel

Mining electric underground side seat LHD scooptram for tunnel
Mining electric underground side seat LHD scooptram for tunnel

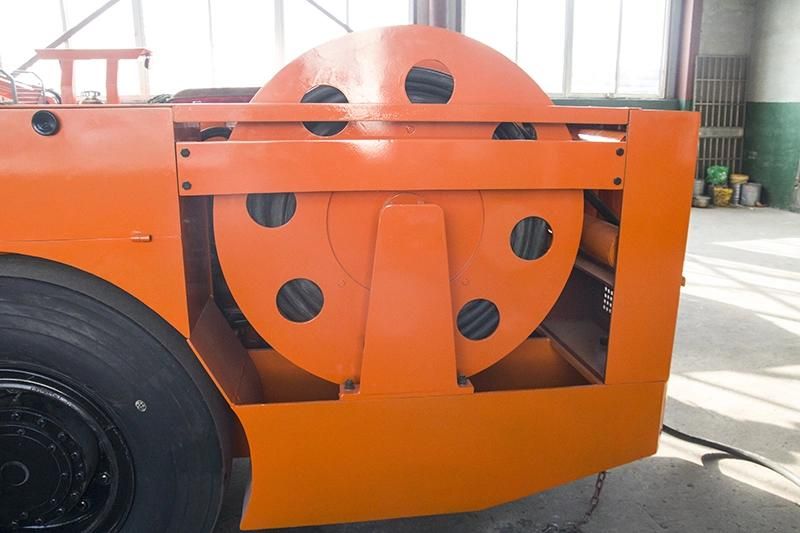

2.Product Details:

Mining electric underground side seat LHD scooptram for tunnel
Mining electric underground side seat LHD scooptram for tunnel

Mining electric underground side seat LHD scooptram for tunnel



3.Packing shipping:

Mining electric underground side seat LHD scooptram for tunnel
Mining electric underground side seat LHD scooptram for tunnel

4.Customer Factory Visit:

Fucheng mining equipment has passed ISO9001 quality management and CE certificate, widely exported to Southeast Asia, Europe, South America, Russia etc., and got consistent high praise by our customers.


Mining electric underground side seat LHD scooptram for tunnel
Our products have been exported to Mexico, Australia, Africa, South America and other countries for almost 20years. The customers come to visit our factory each year to see our factory and product. After visiting, we established a long and successful partnership.

5.Company Information:

Mining electric underground side seat LHD scooptram for tunnel

Jinan Fucheng Hydraulic Equipment Co., Ltd was established in 2002.Fucheng has advanced R&D technology, sophisticate technical team and abundant experience.

W
e focus on the manufacture, trading, maintenance and service of underground mining equipment. At the same time, we supply import and export service for domestic & abroad customers.


Our underground mining equipment covers:(1).Underground Loader: 0.6 cbm - 6 cbm(2).Underground Truck: 8 tons - 35 tons(3).Drill Jumbo: 4 m2 - 50 m2(4).Scaling Jumbo: 4 m2 - 50 m2(5).Spare parts & maintenance
Fucheng key value is "Guarantee quality, Build a harmonious business, mutual development", we supply convenient & fast Pre-sale consultation and after-sale service, and take maintain of customers as our principle. Fucheng welcome all the friends both at home and abroad to visit and cooperate with us !

6.After sale Service :
1. The equipment warranty is one year.
2. We can guarantee annual maintenance, maintenance at any time, and ensure that solving the problems within 24 hours after arriving.
3. Our own professional designers will meet any of your requirements with the lowest price.

7. Warranty
(1) One year quality guarantee
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The engineers are always on line to deal with unexpected needs.


8.Contact Information:

Mining electric underground side seat LHD scooptram for tunnel




FAQ:

Q: Are you manufacturer or trading company ?
A: We are manufacturer. We can response to you quickly.

Q: What is the Payment terms ?
A: Usually by TT or LC, other terms could be negotiated.

Q: What is the delivery time ?
A: Normally the lead time is 30 days after receipt of down payment or LC.

Q: What is the warranty of the products ?
A: 12 months calculated from the goods arriving at the destination port.

Q: Do you provide equipment operation training?
A: Yes. We supply remote free online service. Or if need, we can send professional engineers to the working site for equipment installation, adjustment, and operation training.

Q: Can you customize the products?
A: Yes,we can customize as per your requirement.

Q: Where is the products are used?
A: The products are used for engineering, tunnels and all kinds of mines.
