Energy Saving Continuous Ball Mill for Mineral Ore Beneficiation Plant
Zhengzhou Hengxing Heavy Equipment Co., Ltd.- Type:Ball Mill
- Motor Type:AC Motor
- Motor Power:18.5KW
- Rotationl Speed:38rpm
- Application:Gring Ores Into Fine Powder
- Materials:Gold
Base Info
- Model NO.:900*1800,1200*2400,1500*3500,2100*4500,2200*4500
- Condition:New
- Model Number:Wet Grinding Mill
- Capacity(T/H:1-50tph
- Certificate:ISO9001-2008
- Input Size:25mm and Down
- Output Size:0-250mesh(Adjustable)
- Working Ways:Wet Type
- Installation:We Dispatch Engineer
- Spare Parts:Supply for Whole Life
- Warranty:1 Year Apart From Wearing Parts
- Transport Package:Export Standard
- Specification:International Standard
- Trademark:HengXing
- Origin:China
- Production Capacity:5-80t,H
Description
Basic Info.
Model NO. 900*1800/1200*2400/1500*3500/2100*4500/2200*4500 Condition New Model Number Wet Grinding Mill Capacity(T/H 1-50tph Certificate ISO9001-2008 Input Size 25mm and Down Output Size 0-250mesh(Adjustable) Working Ways Wet Type Installation We Dispatch Engineer Spare Parts Supply for Whole Life Warranty 1 Year Apart From Wearing Parts Transport Package Export Standard Specification International Standard Trademark HengXing Origin China Production Capacity 5-80t/HProduct Description

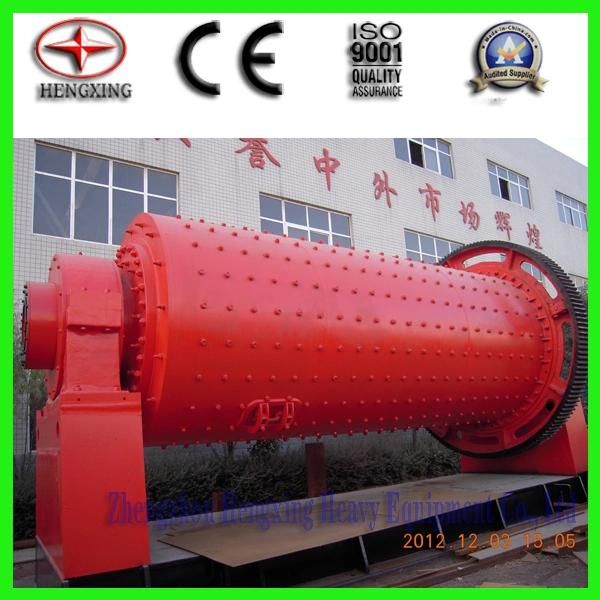

Energy Saving Continuous Ball Mill For Mineral Ore Beneficiation Plant :A ball mill, a type of Mill, is a cylindrical device used to grind (or mix) materials like ores, chemicals, ceramic raw materials and paints. Ball mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. Different materials are used for media, including ceramic balls, flint pebbles and stainless steel balls.
Ball mill Working principle:
Ball mill, a kind of horizontal drum-type rotating device, is a grate mill with external gear and double bins. Materials shall be evenly charged through quill shaft in feeding device into the first bin, which has step or waved lining with steel balls in different specifications. Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall.
Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. Powder shall be discharged from discharging grating, ending the milling process.
Ball mill Features:
Ball mill is mainly composed of charging and discharging, cyclone and rotation parts (like redactor, minor rotation gear, motor, electric machine, etc). Hollow axis is made of steel parts with a lining replacable. Major rotation gear, machined by rolling wheel of casting, is lined with wearing plate with fine wear-resisting property. This machine runs stably and reliably.
Based on difference of materials and discharging types, dry ball mill and wet ball mill are selectable.
Ball Mill Technical Parameters:
Model | shaft rotation speed (r/min) | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Power (KW) | Weight (T) |
Φ 900 × 1800 | 38 | 1.5 | ≤ 20 | 0.075 -0.89 | 0.65-2 | 18.5 | 3.6 |
Φ 900 × 2100 | 38 | 1.3-1.4 | ≤ 15 | 0.075 -0.83 | 0.7-3.5 | 18.5 | 3.9 |
Φ 900 × 3000 | 38 | 2.7 | ≤ 20 | 0.075 -0.89 | 1.1-3.5 | 22 | 4.5 |
Φ 1200 × 2400 | 32 | 3.8 | ≤ 25 | 0.0745-0.6 | 1.5-4.8 | 30 | 11.5 |
Φ 1200 × 2800 | 32 | 3.3-3.5 | ≤ 25 | 0.0745-0.6 | 2-6 | 30 | 13 |
Φ 1200 × 4500 | 32 | 7 | ≤ 25 | 0.074 -0.4 | 1.6-5.8 | 45 | 13.8 |
Φ 1500 × 3000 | 27 | 8 | ≤ 25 | 0.074 -0.4 | 2-5 | 75 | 17 |
Φ 1500 × 3500 | 27 | 6.75 -6.4 | ≤ 25 | 0.075 -0.4 | 3-7 | 75 | 17.5 |
Φ 1500 × 4500 | 27 | 14 | ≤ 25 | 0.074 -0.4 | 3.5-12 | 110 | 21 |
Φ 1500 × 5700 | 27 | 15 | ≤ 25 | 0.074 -0.4 | 3.5-8 | 115 | 24.7 |
Φ 1830 × 3000 | 24 | 18 | ≤ 25 | 0.074 -0.4 | 4-10 | 130 | 28 |
Φ 1800 × 3600 | 24 | 10.6-11.35 | ≤ 25 | 0.075 -0.4 | 5-22 | 130 | 33.5 |
Φ 1830 × 7000 | 24 | 25 | ≤ 25 | 0.074 -0.4 | 7.5-17 | 210 | 36 |
Φ 2100 × 3600 | 22 | 14-15.2 | ≤ 25 | 0.075 -0.4 | 15-36 | 370 | 46.8 |
Φ 2200 × 5500 | 21 | 30 | ≤ 25 | 0.074 -0.4 | 10-20 | 210 | 48.5 |
Φ 2200 × 6500 | 21 | 31 | ≤ 25 | 0.074 -0.4 | 14-26 | 380 | 52.8 |
Φ 2200 × 7500 | 21 | 33 | ≤ 25 | 0.074 -0.4 | 16-29 | 380 | 56 |
Φ 2400 × 3000 | 20.6 | 15.5 -16.6 | ≤ 25 | 0.075 -0.4 | 22-24 | 245 | 59 |
Φ 2400 × 4500 | 21 | 30 | ≤ 25 | 0.074 -0.4 | 8.5-60 | 380 | 65 |
Φ 2700 × 3600 | 20.6 | 39 | ≤ 25 | 0.074 -0.4 | 12-70 | 400 | 91.3 |
Φ 2700 × 4000 | 20.7 | 40 | ≤ 25 | 0.074 -0.4 | 12-80 | 400 | 94 |
Φ 2700 × 4500 | 20.7 | 48 | ≤ 25 | 0.074 -0.4 | 12-90 | 430 | 102 |
Φ 3200 × 4500 | 18 | 65 | ≤ 25 | 0.075 -0.4 | according to the technics | 800 | 137 |
