• Model NO.：FYKC-8
• Number of cylinders：4
• Displacement：4.764 L
• Brake valve：MICO
• Emergency brake Valve：Parker
• Transport Package：Container Package Shipment
• Specification：7100mm*2300mm*1820mm
• Trademark：FUCHENG
• Origin：Shandong, China
• HS Code：87041090
• Production Capacity：200sets Per Year

Basic Info.

Model NO. FYKC-8 Number of cylinders 4 Displacement 4.764 L Brake valve MICO Emergency brake Valve Parker Transport Package Container Package Shipment Specification 7100mm*2300mm*1820mm Trademark FUCHENG Origin Shandong, China HS Code 87041090 Production Capacity 200sets Per Year

Product Description

New Diesel Underground Mining Vehicle with DEUTZ engine power



Main Features
1. Equipped with Germany DEUTZ BF4M1013 Engine, accomplish low emissions and low pollution.
2. Excellent performance with American DANA Torque converter and Power shift Transmission.
3. To integrate working brake and parking brake as one system, (Spring applied hydraulic released).
4. Adopts rotary supports connected with back frame swing, so that greatly reduces failure rate.
5. Advanced way of three-point suspension articulated, improving layout form of oscillating axle.

Main Technical Parameters:

Diesel Engine:	DEUTZ BF4M1013
Transmission System:	DANA RT20324
Drive Axle Type:	NO-SPIN
Braking System:	Working Braking,  Parking Brake
Bucket volume:	4m3
Min. Ground Clearance:	250mm
Total Weight:	10.5T
Maximum Traction:	100KN
Power:	115KW/2300rpm
Torque Converter:	DANA C270 serie
Running speed:	0-25km/h
Min Turning Radius:	Inner 4500mm Outer 6590mm
Rated Capacity:	8T
Gradeability:	21°
Steering Angle:	±40°
Dimensions:	7100*1820*2300mm

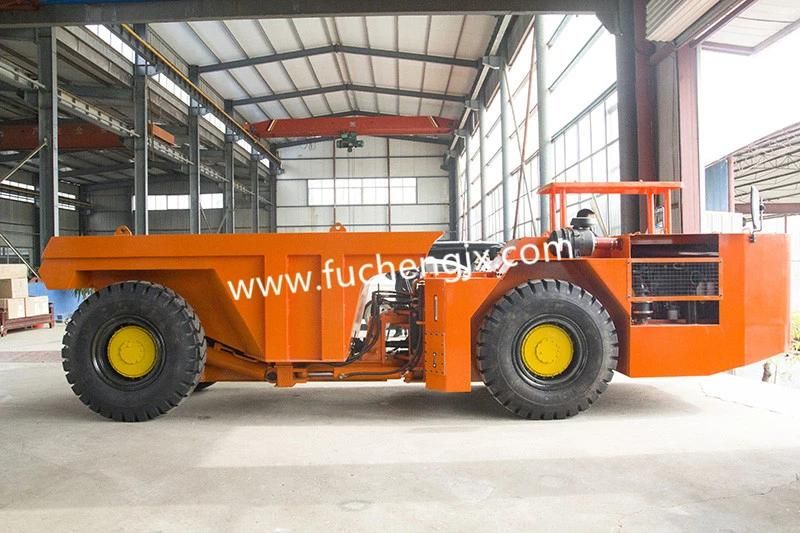

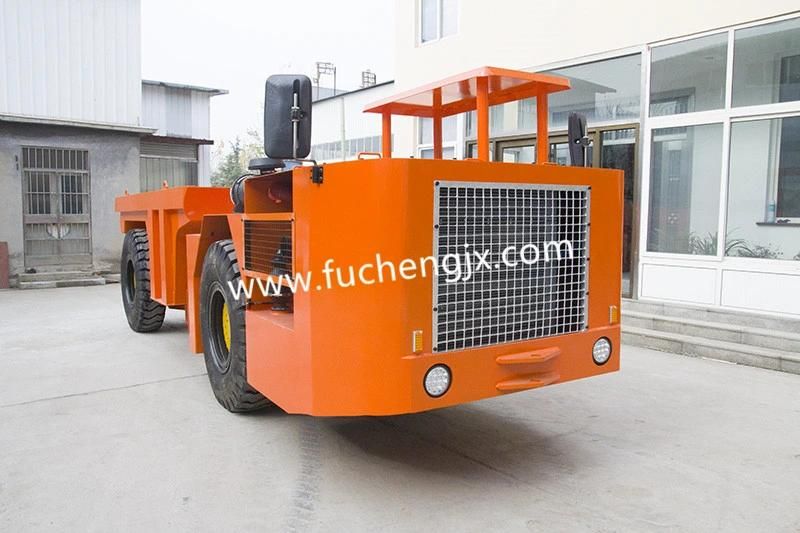

1.Product show:









2.Product Details:


3.Pre-Sale Service
1.After the production is finished,, we will carry out braking, walking test and other items for the finished products
2.We will check again before delivery or Shipping.
3.After test, we must guarantee our product perfect and the pictures will be taken and sent to out customers before shipping.

4.After-Sales Service
1. Traning of trailer operating and normal maintenance .
2. We can guarantee annual maintenance, maintenance at any time, and ensure that solving the problems within 24 hours after arriving.
3. Our own professional designers will meet any of your requirements with the lowest price.

5.CE approved



6.Customer Factory Visit:



On July 14^th, 2017,Our customers from Peru visited factory. Before coming, we have confirmed the price and payment terms with customers. During visit in factory, customers inspected machines carefully from structure to performance, including diesel mining LHD loader and underground truck which were used for copper and gold mines.Besides they operated the machines by themselves.Finally they said the quality was good and placed two pcs underground mining equipment at once.

Our products have been exported to Mexico, Australia, Africa, South America and other countries for almost 20years. The customers come to visit our factory each year to see our factory and product. After visiting, we established a long and successful partnership.

7.Company Information:


Jinan Fucheng Hydraulic Equipment Co., Ltd. is established and put into production in 2002. It has become a well-known manufacturing enterprise covering an area of 10,000 square meters with 50 employees after nearly 20 years of development.

Jinan Fucheng Hydraulic Equipment Co., Ltd mainly manufactures and sells various models of mine trackless equipment including underground Loader(0.6 cbm - 6 cbm), underground mining truck(8 tons - 35 tons), drilling jumbo(4 m² - 50 m²), underground service vehicle, etc.

Integrity creates brand while prudence makes brilliance! FUCHENG welcomes friends and customers at home and abroad to visit us for mutual benefit and common development !

8.Contact Information:




FAQ:
1.Q: Are you manufacturer or trading company ?
  A: We are manufacturer. We can response to you quickly.
2.Q: What is the Payment terms ?
  A: Usually by TT or LC, other terms could be negotiated.
3.Q: What is the delivery time ?
  A: Normally the lead time is 30 days after receipt of down payment or
L/C.
4.Q: What is the warranty of the products ?
  A: 12 months calculated from the goods arriving at the destination port.
5.Q: Do you provide equipment operation training?
  A: Yes. We supply remote free online service. Or if need, we can send
professional engineers to the working site for equipment
installation,adjustment, and operation training.
6.Q: Can you customize the products?
  A: Yes,we can customize as per your requirement.
7.Q: Where is the products are used?
  A: The products are used for engineering, tunnels and all kinds of
mines.
