• Model NO.：YLCSD-450
• Dredging Depth：15 M
• Maxium Draught：140 Cm
• Water Flow：3500 M3,H
• Solid Output：525-700 M3,H
• Engine：Cummis or Customized
• Main Engine Power：895 Kw
• Auxiliary Engine Power：350 Kw
• Cutter Shaft Power：140-170 Kw
• Warranty：1 Year
• Work Site：River,Lake,Sea or Channel
• Transport Package：Nude Packing
• Specification：18 inch
• Trademark：Yongli
• Origin：Qingzhou, Shandong, China
• HS Code：8905100010
• Production Capacity：120 Sets,Year

Basic Info.

Model NO. YLCSD-450 Dredging Depth 15 M Maxium Draught 140 Cm Water Flow 3500 M3/H Solid Output 525-700 M3/H Engine Cummis or Customized Main Engine Power 895 Kw Auxiliary Engine Power 350 Kw Cutter Shaft Power 140-170 Kw Warranty 1 Year Work Site River,Lake,Sea or Channel Transport Package Nude Packing Specification 18 inch Trademark Yongli Origin Qingzhou, Shandong, China HS Code 8905100010 Production Capacity 120 Sets/Year

Product Description

18 Inch Second Hand Cutter Suction Dredger


 1.Technical Specifications


Water flow	3500 m3/h
Slurry concentration	15-20%
Work capacity	525-700 m3/h
Inner diameter of suction pipe	600 mm (24 inch)
Inner diameter of discharge pipe	450 mm (18 inch)
Main engine power	895 kw
Auxiliary engine power	350 kw
Cutter shaft power	140-170 kw
Dredging pump head	67 m
Generator power	30 kw

2.Details Images


Dredging Pump                                           Cutter Head

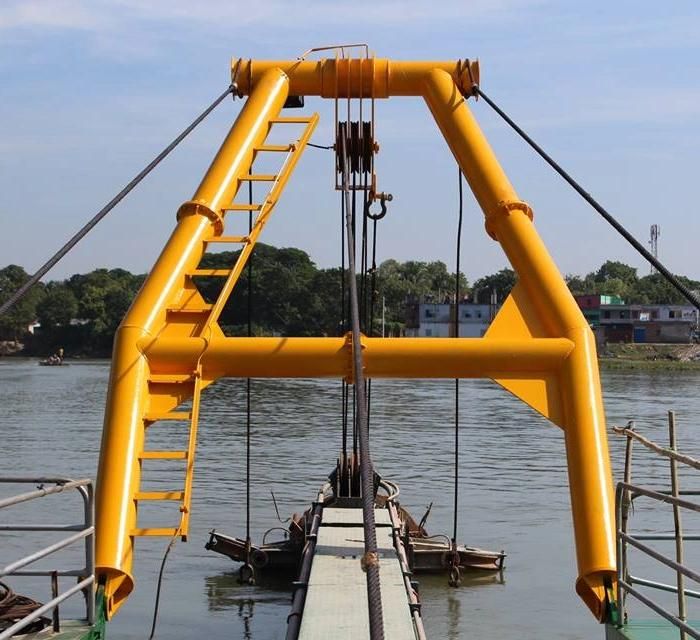

A-shape Portal Frame

PLC Control System

3.Our Advantages

1. Safe operation using PLC controls and interlocks.
2. Efficiency and high performance due to the pump,gearbox/hydraulic coupler and fresh-water engine cooling system.
3. Engine mounted in the centre pontoon for protection and low noise levels.
4. Customized according dredging depth,working capacity and discharge distance.
5. Efficient fuel consumption, reliable hydraulic system, competitive price.

4. Our Services

1. Engineers available for overseas installation,training,trail operation and maintenance,
2. Offer one year warranty.
3. We supply customized services or products.
4. Worldwide shipping: we are shipping around the world where there is need for our products.

5.Dredgers Photos


6.Customer Photos


7.Need for reply

1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
5. What kind of the main engine brands do you prefer?
