High Capacity 26 Inch Cutter Suction Dredger with Underwater Pump

Qingzhou Set Sail Dredging Equipment Machinery Co., Ltd.
  • Type:Cutter Suction Dredger
  • Power Type:Diesel
  • Cyclone Type:Hydrocyclone
  • Slot Type:CTN
  • Customized:Customized
  • Condition:New

Base Info

  • Model NO.:QHCSD-337
  • Warranty:2 Year
  • After-sales Service:Lifelong
  • Diesel Engine Brand:Cummins . Weichai
  • Hydraulic System Brand:Rexroth
  • PLC System Brand:Siemens
  • Water Flow:6000 Cubic Meter
  • Capacity:900-1200 Cubic Meter
  • Maximum Dredging Depth:20 Meter
  • Maximum Discharge Distance:2000 Meter
  • Total Length:39 Meter
  • Hull Size:28*8.8*2.25 Meter
  • Discharge Pipe Inner Diameter:600mm
  • Cutter Head Diameter:2000mm
  • Cutter Head Power:260kw
  • Main Engine Power:1620 Kw
  • Auxiliary Engine Power:405 Kw
  • Total Fule Consumption:350L
  • Transport Package:Canvas and Container
  • Specification:26 inch cutter suction dredger
  • Trademark:Set Sail
  • Origin:China
  • HS Code:8905100000
  • Production Capacity:5000set,Year

Description

High Capacity 26 Inch Cutter Suction Dredger with Underwater Pump       Set Sail cutter suction dredger's (CSD) suction tube has a cutting mechanism at the suction inlet. The cutting mechanism loosens the bed material and transports it to the suction mouth. The material is usually sucked up by a wear-resistant centrifugal pump and discharged either through a pipe line or to a barge. Cutter suction dredgers are most often used in geological areas consisting of hard surface materials (for example gravel deposits or surface bedrock) where a standard suction dredger would be ineffective. They can be used instead of underwater blasting. High Capacity 26 Inch Cutter Suction Dredger with Underwater Pump          Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic  electric or both together)
  High Capacity 26 Inch Cutter Suction Dredger with Underwater PumpHigh Capacity 26 Inch Cutter Suction Dredger with Underwater PumpHigh Capacity 26 Inch Cutter Suction Dredger with Underwater Pump High Capacity 26 Inch Cutter Suction Dredger with Underwater PumpHigh Capacity 26 Inch Cutter Suction Dredger with Underwater PumpHigh Capacity 26 Inch Cutter Suction Dredger with Underwater Pump

Technical Specification

1 Design the dredger based on the customer's detailed requirements such as : clear water flow per hour. dredge depth. discharge distance and engine brand we can support WeichaiCummins and others.2supply one year's guarantee for the whole dredger except the wear spare parts.3supply after-sales installation. trial operation. training the operators. maintence and other services.4we can offer the lifetime cost price accessories and technical support

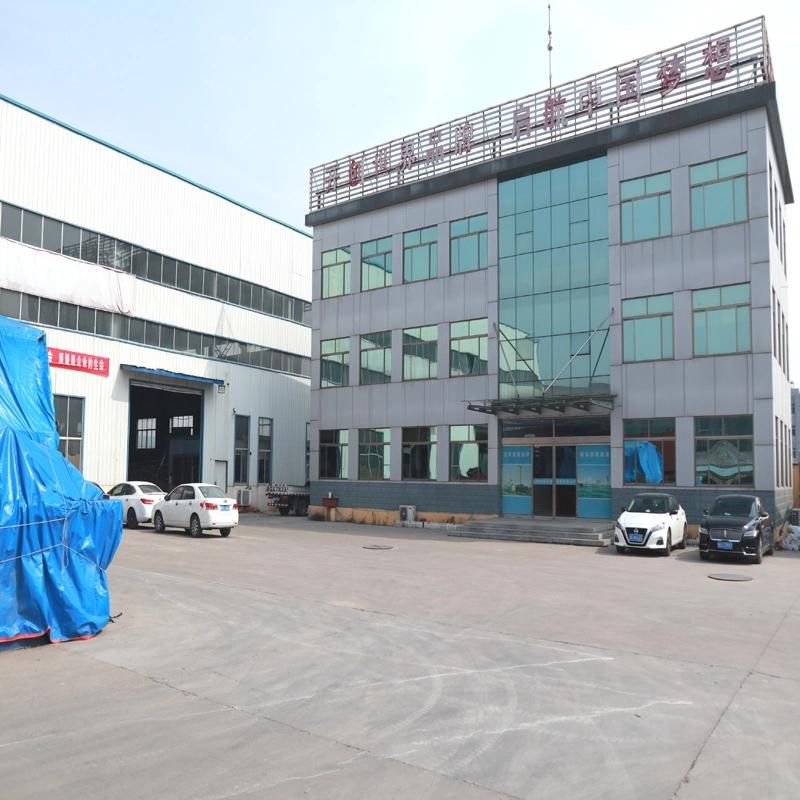

Company Information                 Qingzhou Qihang Dredging Machinery Equipment Co., Ltd , is one of China leading company of sand & gold& diamond  mining equipments. which has more than 20 years' experience  in producing cutter suction  dredgers.jet  suction dredgers.bucket chain dredger. diamond/gold dredgers. sand washing plant. dry land gold washing plant, sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Africa.South America.Middle East and other regions.High Capacity 26 Inch Cutter Suction Dredger with Underwater PumpHigh Capacity 26 Inch Cutter Suction Dredger with Underwater PumpHigh Capacity 26 Inch Cutter Suction Dredger with Underwater Pump
certificate and customers
