Hydraulic Motor Mud Pump Trailing Suction Hopper Dredger

Qingzhou Set Sail Dredging Equipment Machinery Co., Ltd.
  • Type：Trailing Suction Hopper Dredger
  • Power Type：Diesel
  • Cyclone Type：Hydrocyclone
  • Slot Type：CTS
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：QHTSD-5
  • Warranty：1year
  • After-sales Service：Lifelong
  • Diesel Engine Power：110kw-2000kw
  • Water Flow：100m3-20000m3
  • Dredging Depth：4m-15m
  • Capacity：500m3-5000m3
  • Draught：0.85m-15m
  • Total Length：17m-50m
  • Total Width：4.5m-12m
  • Total Depth：1.5m-5m
  • Bottom Plate Thickness：6mm-20mm
  • Side Plate Thickness：6mm-20mm
  • Front Plate Thickness：5mm-20mm
  • Transport Package：Canvas
  • Specification：Capacity 50m3-4000m3
  • Trademark：Set Sail
  • Origin：China
  • HS Code：8905100000
  • Production Capacity：10000 Set,Year

Description

           Trailing suction hopper dredger is self-propelled and non-self propelled . the dredging pump drives the front of the screw rake head to churn .cut  collection to the underwater position . and through the suction pipe to get the bottom silt .sand .and other loose material with water then through the the discharge pipe to transport to destination .during the dredger working process  in resevoir  . in order increase the suction mud  effective .  we add the jet in the front of suction pipe to increase the concentration . this type of trailing hopper scution dredger is suitable for underwater sandy and non-viscous soil . as well as soft and easily flowing mud.Trailing suction hopper dredger picture :


Hydraulic Motor Mud Pump Trailing Suction Hopper Dredger

Hydraulic Motor Mud Pump Trailing Suction Hopper DredgerHydraulic Motor Mud Pump Trailing Suction Hopper Dredger


Trailing suction hopper dredger advantage :1. Widely operation area2.Easily operation 3.Less wastage4.High efficient
Basic parameter :ModelQH-150QH-200Tolal dimention 17m*4.5m*1.5m20m*6m*1.7mDredging depth5-6m6-8mCapacity 150m3200m3Thinckness of steel plate Bottom : 6mm Side: 6mm Front :5mmBottom :6mm Side : 6mm Front : 5mmMain engine power230kw300kwPump water flow 500m3800m3Draught 0.85m0.9m
Trailing suction hopper dredger in factory :
Hydraulic Motor Mud Pump Trailing Suction Hopper DredgerHydraulic Motor Mud Pump Trailing Suction Hopper DredgerHydraulic Motor Mud Pump Trailing Suction Hopper DredgerPacking and shipment :
Hydraulic Motor Mud Pump Trailing Suction Hopper Dredger
Customers feedback :
Hydraulic Motor Mud Pump Trailing Suction Hopper DredgerCustomers visit our factory :
Hydraulic Motor Mud Pump Trailing Suction Hopper Dredger

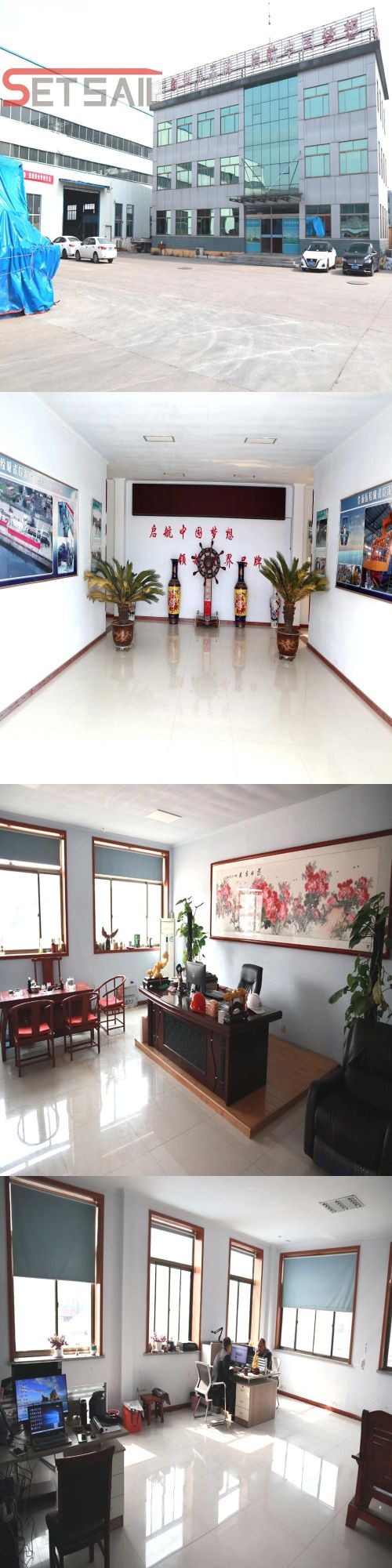

Company profile :
Hydraulic Motor Mud Pump Trailing Suction Hopper DredgerHydraulic Motor Mud Pump Trailing Suction Hopper Dredger
Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.
Factory has manufacture experience more than 20 years.
More than 50 certificated engineers and technicians.
We have certification and patent more than 50 item. It contains ISO CE etc.
Set Sail dredger is sold more than 80 countries .
