• Model NO.：JLCSD400
• Dredging Depth：14m
• Dredging Capacity：2000cbm,Hr
• Discharge Distance：1500m
• Engine：Cummins
• Engine Power：746kw
• Hydraulic System：Rexroth
• Electrical System：Scheider
• PLC Control System：Siemens
• Application：Sand Dredging, Waterway Cleaning, Reclamation Work
• Options：Booster Pump;Spud Carriage; Submersible Pump; Pipe
• Transport Package：in Containers
• Specification：30m*6.2m*1.8m
• Trademark：JULONG
• Origin：Qingzhou City, Shandong, China
• HS Code：890510
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. JLCSD400 Dredging Depth 14m Dredging Capacity 2000cbm/Hr Discharge Distance 1500m Engine Cummins Engine Power 746kw Hydraulic System Rexroth Electrical System Scheider PLC Control System Siemens Application Sand Dredging, Waterway Cleaning, Reclamation Work Options Booster Pump;Spud Carriage; Submersible Pump; Pipe Transport Package in Containers Specification 30m*6.2m*1.8m Trademark JULONG Origin Qingzhou City, Shandong, China HS Code 890510 Production Capacity 100 Sets/Year

Product Description

New Cutter Suction Dredger CSD400 for river lake sea sand dredging
1. Cutter Suction Dredger


 2. General Introduction of JULONG Cutter Suction Dredger JLCSD400The Cutter Suction Dredgers are of steel construction, non self-propelled, dismountable type, which are able to berth and dredge at any waters both in the coastal area and inland rivers.
 - Dredging depth:        14m
 - Dredging capacity:    2000m3/hr mixture capacity
 - Discharge distance:   0-1500m or more with booster pump station
 - Usage:                         sand dredging, waterway cleaning, reclamation work, mining job, etc.
 - Optional Device:       1) Booster Pump Station;
                                       2) Spud Carriage;
                                       3) Submersible Pump;
                                       4) Bucket Wheel Cutter;
                                       5) Anchor Boom and Anchor Winch;
                                       6) Work Boat/Tug Boat;
                                       7) Discharge Pipeline-HDPE Pipe, Rubber Hose, Floaters, Steel Pipe
                                       8) others based on buyer's need
 3. Technical Specifications of Julong Main Cutter Suction Dredgers for reference (Customized design is available.)

Principle Dimensions
(1) Max. Dredging Depth	14.0 m
(2) Discharge Distance	1500 m
(3) Waterflow	2000 m3/hr
Main Pontoon
(1) Length	14.0 m
(2) Width	3.0 m
(3) Depth	1.8 m
Side Pontoons
(1) Length	22.0m
(2) Width	1.6m
(3) Depth	1.8m
Dredging Pump
(1) Made	Shijiazhuang  Pump
(2) Model	300WN
(3)  Waterflow	2000 m3/hr
Main Engine
(1)   Manufacturer	Cummins
(2) Rated Power with RPM	746KW @ 1800 RPM
(3) Amount	1 set
Cutter
(1) Type	Crown
(2) Driver	Hydraulic Motor
(4)  Diameter	1300mm
(5)  Cutter Shaft Power	80kw
Ladder Winch
(1) Line Pull	60 KN
(2) Line Speed	0-20m/min
(3) Wire Size	Φ20mm
(4) Driver	Hydraulic Motor
Swing Winch
(1) Line Pull	60 KN
(2) Line Speed	0-20m/min
(3) Wire Size	Φ20mm
(4) Driver	Hydraulic Motor
Spuds
(1)  Amount	2 pcs
(2) Driver	Hydraulic Ram

4. Why Choose Julong Dredgers?a. Customized designs is available according to clients project reqirement. We have our own design team and also support from China ship design institutes and professional colleges.
b. All our workders are skilled and have rich experience in the ship design for many years.
c. Reputed sprae parts wll used in dredger,like the world famous Cummins engine, Shijiazhuang pump, Siemens PLC control system and so on.
d. Every finished dredger will be tested before delivery to assure the dredger run smoothly.
e. Hydrualic system is one of the most inportant parts of the dredger. Equipment like cutter head, ladder winch, swing winth, spuds are driven by hydraulic motors. Reputed brand is used like Rexroth, Vikers, Yuken etc.
f.The cutter suction dredger is dismountable, which can be disassembled and assembled easily. Thus it can be transported more conveniently by road, rail, water.
g. Professional engineers will be sent to project site to help assemble, debugging, testing and training.
 5. Julong Dredgers have been exported in more than 60 countries all over the world

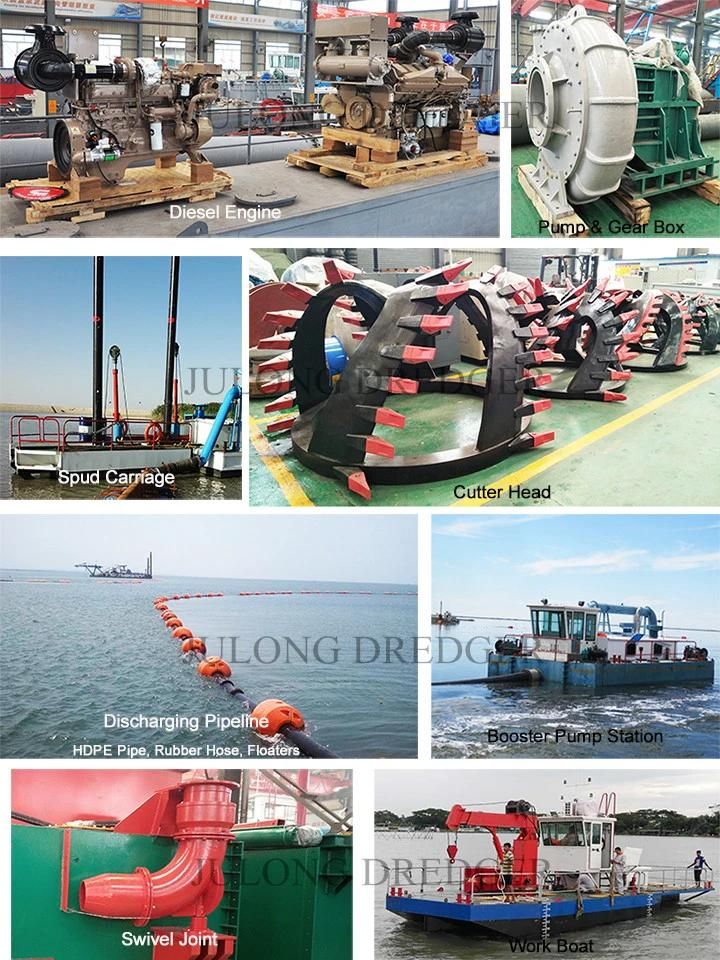

6. Optional Devices

7. Brief Introduction of JULONGQingzhou Julong Environment Technology Co., Ltd. is a professional manufacturer of dredgers, aquatic weed harvester, gold & iron mining machinery and sand processing machinery, with about 30 years' experience. With an excellent technology team, we can design and manufacture highquality dredgers and machinery according to customers' requests. Our products are famous for easy operation, reliable performance, low cost and long working life. JULONG machines have been exported to about 60 countries in Southeast Asia, South Asia, Africa, and South America.




8.  Customers' Visit at Julong


9. Julong Service and Promises:
a. JuLong company signs a long-time after-sale service agreement with customers.
b. we provided rational and practical design according to customers' request.
c. we send engineers to assemble and test the machine.
d. within warranty peride,we provide free repair if quality problems emerge.
e. we provide free training on operation and maintenance for customers.
f. we supply high quality accessories at low prices.
g. we make an excellent filing of customers for long term following-up service.
