Small Capacity Coal Slime Rotary Dryer Machine with Factory Price
Henan Hongke Heavy Machinery Co., Ltd.- After-sales Service：Life Long Time
- Warranty：Life Long Time
- Name：Coal Slime Rotary Dryer Machine
- After Sale Service：Engineers Available to Serve Overseas
- Certificates：BV CE ISO
- Price：Negotiable
Base Info
- Model NO.：Coal Slime Rotary Dryer
- Capacity(T/H)：High
- Power(Kw)：Multi-Powers
- Factory Visit：Welcome
- Color：Multi -Color
- Delivery Detailed：Within 8 Working Days After The Pre-Payment
- Transport Package：Standard Export Package or as Clients Request
- Specification：Reference as the form
- Trademark：Henan Hongke
- Origin：Zhengzhou, Henan
- HS Code：84172090
- Production Capacity：10 Sets,Month
Description
Model
(mm)
Obliquity(%)
Rotation speed
(r/min)
Feeding temperature
(degree)
Power
(kw)
Capacity(t/h)
Weight
(t)
Ø600x6000
3-5
3-8
<=700
3
0.5-1.5
2.9
Ø800x8000
3-5
3-8
<=700
4
0.8-2.0
3.5
Ø800x10000
3-5
3-8
<=700
4
0.8-2.5
4.5
Ø1000x10000
3-5
3-8
<=700
5.5
1.0-3.5
5.6
Ø1200x10000
3-5
3-8
<=700
7.5
1.8-5
14.5
Ø1200x12000
3-5
3-8
<=700
11
2-6
14.8
Ø1500x12000
3-5
2-6
<=800
15
3.5-9
17.8
Ø1800x12000
3-5
2-6
<=800
18
5-12
25
Ø2200x12000
3-5
1.5-6
<=800
18.5
6-15
33
Ø2200x18000
3-5
1.5-6
<=800
22
10-18
53.8
Ø2200x20000
3-5
1.5-6
<=800
30
12-20
56
Ø2400x20000
3-5
1.5-5
<=800
37
18-30
60
Ø3000x20000
3-5
1.5-5
<=800
55
25-35
78
Ø3000x25000
3-5
1.5-5
<=800
75
32-40
104.9
5. Characteristics of rotary dryer design
(1) Intensification. As a result of adopting the device operation, the equipment arrangement is compact, the occupation area is small, it can be arranged in the sewage treatment plant, and the storage and transportation cost of the wet sludge can be saved.
(2) Mechanization. At present, more drying equipments are operated automatically, which are safe, efficient and stable, and accord with the trend of industrialization.
(3) Reduction. Drying can greatly reduce the volume and mass of sludge and facilitate transport and absorption.
(4) Harmlessness. Pasteurization of sludge, elimination of pathogens, drying of dirt Mud character is a safe guard.
(5)Stabilization. After drying, the water content of raw material was lower than 10%, the microbial activity was inhibited, the raw material was stable, it could not rot and smell, and could be stored and transported for a long time.
Drying products can be made into granular fertilizer for farmland fertilization, but also as fuel to burn.

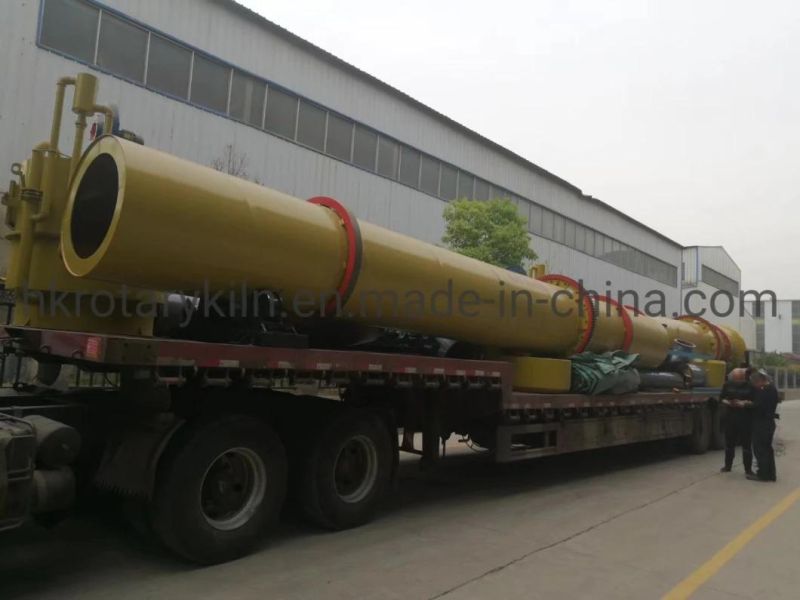

6. Factory Pictures of rotary dryer design
