Stainless Steel Support U25 Steel Support Steel Arches Support

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Material:20mnk Q275
  • Web Thickness:4.5mm-9.5mm
  • Standard:GB JIS ASTM
  • Web Width:50mm-320mm
  • Flange Width:37mm-88mm
  • Length:6,9,12m

Base Info

  • Model NO.:U25
  • Transport Package:Standard Export Package
  • Specification:U25, U29, U36
  • Trademark:China Coal
  • Origin:Shandong Provice, China
  • Production Capacity:1000ton Per Day

Description

Basic Info.

Model NO. U25 Transport Package Standard Export Package Specification U25, U29, U36 Trademark China Coal Origin Shandong Provice, China Production Capacity 1000ton Per Day

Product Description

Stainless Steel Support U25 Steel Support Steel Arches Support
Introduction of Stainless Steel Support U25 Steel Support Steel Arches Support

Stainless Steel Support U25 Steel Support Steel Arches Support is mainly used for mining tunnel support ,with the features of high pressure steel structure.Steel support is a kind of passive support for coal mine support. It has high tensile strength and compressive strength, and at the same time has good toughness, high supporting force and strong supporting strength. It can be used multiple times and is widely used. Mine U lanes, especially in deep complex roadways and soft coal seam roadways.
Main purposes: mainly used in mine tunnel, mine tunnel secondary purpose of support, as well as the support of the mountains tunnel support.
Main features: pressure, supporting a long time, easy to install is not easy deformation characteristics. zmwm10
1)Specification: U25, U29, U36;
2)Assembly: top beam, two landing legs, four clamps, two baseplates
3)Material: 20MnK Q275
4)Grade: SS400 Q235 A36
5)Size: 50mm*37mm*4.5mm-320mm*88mm*8mm

Parameter of Stainless Steel Support U25 Steel Support Steel Arches Support

SizeMaterialTheoretical weight (kg/m)cross-sectional area (cm2)HeightThickness Width Leg thickness
25U

Q275B/ 20Mnk24.9531.79+1.0
120
-1.5
+0.5
15
-1.2
+1.0
130
-3.0
+0.8
6.3
-0.5
29U

Q275B/ 20Mnk29.0037.00+1.0
124
-1.5
+0.5
16
-1.2
+1.0
150.5
-3.0
+0.8
7.2
-0.5
36U

20Mnk35.8745.70+1.0
138
-1.5
+0.5
17
-1.2
+1.0
171
-3.0
+0.8
7.8
-0.5
40U20Mnk40.0551.02+1.0
149
-1.5
+0.5
20.2
-1.2
+1.0
171
-3.0
+0.8
8.5
-0.5

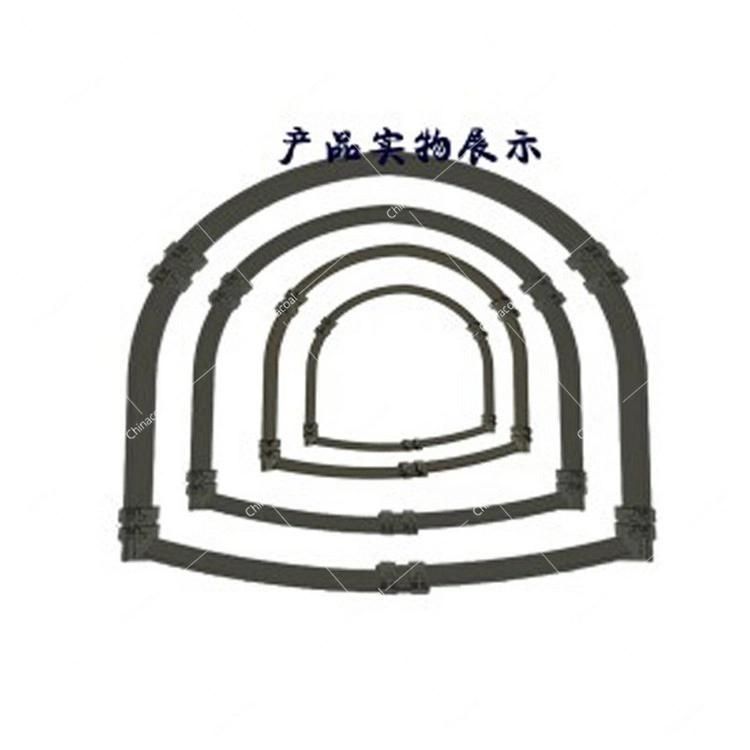

Photos of Stainless Steel Support U25 Steel Support Steel Arches Support
