Titanium Ore Concentration Machine for Sale
Jiangxi Province County Mining Machinery Factory- Type:Gravity Separator
- Voltage:380V
- Weight:<1T
- Material:Casting Steel
- Material Feature:Oil Resistant
- Certification:CE
Base Info
- Model NO.:6s shaking table 4500mm
- Energy Saving:Energy Saving
- Warranty:1 Year
- Color:Black
- Customized:Customized
- Condition:New
- Titanium Separation Table Deck Material:Fiber Galss Surface
- Titanium Separating Machine Feeding Size:0.037-2mm
- Titanium Separating Table Capacity:0.5-2t,H
- Titanium Concentration Table Deck Size:7.6m2, 4.08m2, 1.95m2, 0.5m2
- Titanium Separating Table Base:U-Steel and Big U-Steel Channel Support
- Shaking Table Application:Mining Gold, Tin, Tungsten, Titanium, Coltan
- Transport Package:Bulk Packing Load in Container
- Specification:SGS, BV, TUV
- Trademark:JXSC
- Origin:Ganzhou, Jiangxi
- HS Code:84741000
- Production Capacity:200 Sets Each Month
Description
Deck typeUnit Course sand Fine sand Slime Deck Three different kinds of decks are available Beneficiation Area m2 7.6 7.6 7.6 4.08 1.95 0.5 Deck Size Length mm 4450 4450 4450 3000 2100 1100 transmission end width mm 1855 1855 1855 1320 1050 500 Concentrate end width mm 1546 1546 1546 1100 850 430 Maximum Feeding Size mm 2 0.5 0.15 0.1-2 0.074-2 0.074-2 Feeding Amount t/d 30-60 10-20 15-25 0.4-1.5t/h 0.3-0.8t/h 0.05-0.2t/h Feeding Density % 25-30 20-25 15-25 10-30 Stroke mm 16-22 11-16 8-16 6-30 12-28 9-17 Frequency f 45-48 18-53 50-57 210-320 250-450 280-460 Water added t/d 80-150 30-60 10-17 0.3-1.5t/h 0.2-1t/h 0.1-0.5t/h Transverse slope of Deck ° 2° 30-4° 30 1° 30-3° 30 1° -2° 0 -10° 0 -8° 0 -10° Longitudinal slope of Deck ° 1.4 0.92 ------ ------ ------ ------ Cross-section Shape of Deck rectangular saw tooth triangle Avaliable rectangular, saw tooth, triangle Motor Power KW 1.1 1.1 1.1 1.1 1.1 1.1
Customer Mine Site
Mineral: Rock gold ore
Capacity: 2TPH
Location: Congo

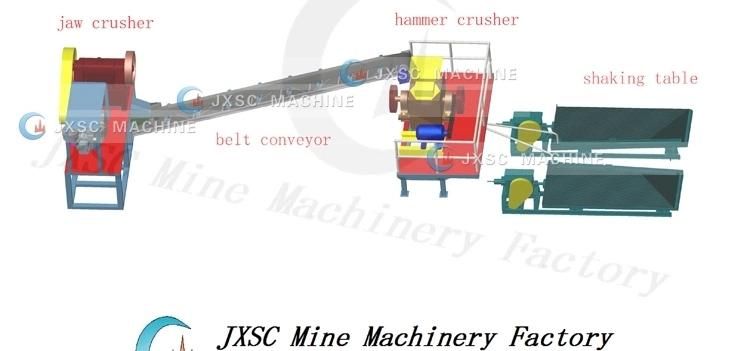

Process: The flow of this plant is Jaw crusher -> Hammer mill -> Shaking table. This flow sheet is quite suitable for small scale rock gold bearing ore processing, especially for 1-2 tons per hour capacity rocky gold.
Mineral: Rock gold ore
Capacity: 20TPH
Location: Sudan
Process: Our factory JXSC built a complete 20TPH Rock Gold Processing Plants for one of our Sudan client. The process flow is Crushing -> Screening -> Grinding ->Concentration.
Packing and Delivery
1. Standard parts packed in the wooden cases.
2. Big parts packed by plastic membrane.
3. The whole machine is loaded in the container.
Customer Mine Site
Mineral: Rock gold ore
Capacity: 2TPH
Location: Congo
Process: The flow of this plant is Jaw crusher -> Hammer mill -> Shaking table. This flow sheet is quite suitable for small scale rock gold bearing ore processing, especially for 1-2 tons per hour capacity rocky gold.
Mineral: Rock gold ore
Capacity: 20TPH
Location: Sudan
Process: Our factory JXSC built a complete 20TPH Rock Gold Processing Plants for one of our Sudan client. The process flow is Crushing -> Screening -> Grinding ->Concentration.
Packing and Delivery
Ways of Packing:
1. Standard parts packed in the wooden cases.
2. Big parts packed by plastic membrane.
3. The whole machine is loaded in the container.
