China 20 Inch Sand Pumping Cutter Suction Dredgers Equipment
Qingzhou Set Sail Dredging Equipment Machinery Co., Ltd.- Type：Cutter Suction Dredger
- Power Type：Diesel
- Cyclone Type：Hydrocyclone
- Slot Type：CTS
- Customized：Customized
- Condition：New
Base Info
- Model NO.：QHCSD-436
- Warranty：2 Year
- After-sales Service：Lifelong
- Water Flow：5000 Cubic Meter
- Dredging Depth：15 Meter
- Capacity：750-1000 Cubic Meter
- Discharge Distance：1500meter
- Total Weight：230t
- Total Length：39 Meter
- Width：8.8 Meter
- Height：2.2 Meter
- Sand Pump Size：500ND
- Head：54meter
- Bottom Plate Thickness：12mm
- Side Plate Thickness：10mm
- Deck Plate Thickness：10mm
- Front Plate Thickness：16mm
- Main Engine Power and Brand：Cummins 1335kw
- Transport Package：Canvas
- Specification：20 inch cutter suction dredger
- Trademark：Set Sail
- Origin：China
- HS Code：8905100000
- Production Capacity：1500 Sets ,Year
Description

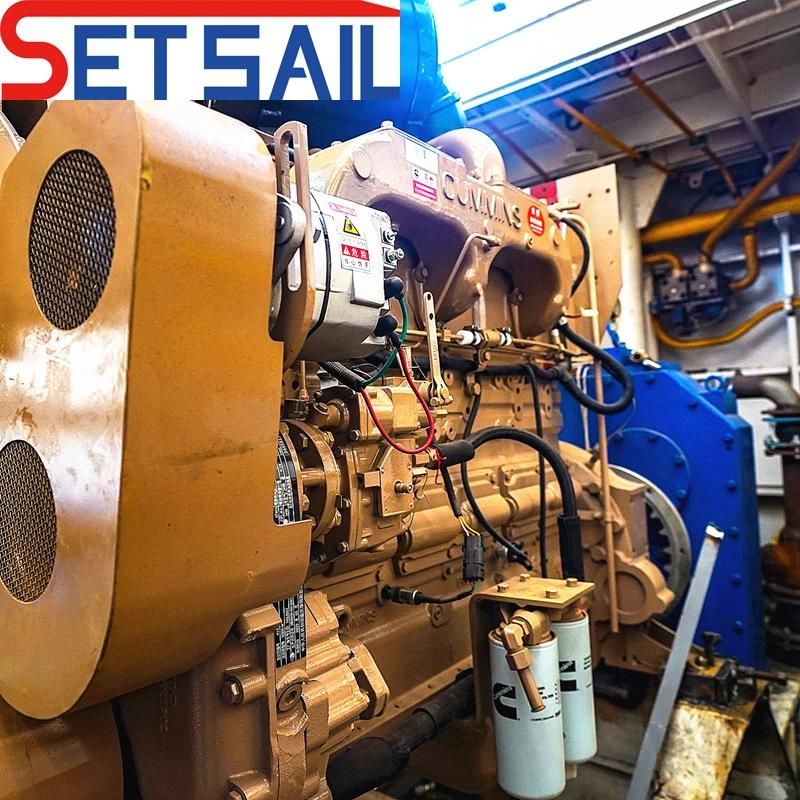

20 inch cutter suction dredger is the. one of the most popular . Cummins diesel engien .Shijiazhuang dredging pump. gerbox and coupler . anchor boom . depth sounder . Siemens PLC . Rexroth hydraulic control system are provided on my dredger . Dredging depth 15 meter . discharge distance 1500 meter are the best efficiency . normal capacity is 1000 cubic meter per hour . accurate capacity according to the concentraton . 2. 20 inch cutter suction dredger and detailed pictures:
3. Brief application :
Cutter suction dredger has broad range of applications in operations in the rivers . lakes. seas for the dredging.
channel excavation. In exceptional circumstances a cutter suction dredger cutter installed on the highpower.devices.
can be excavated without blasting rocks such as basalt and limestone strata.With characteristics of high efficiency.
large output up to several thousand cubic meters per hour.the sand.or crushed rock material to rely on a strong
driving force the mud pumps and mud pipeline, pumping out a few kilometers outside.
4. Basic informationn
Qingzhou Set Sail Mining And Dredging Machinery Co., Ltd , is one of China leading manufacturer of sand &
gold&diamond mining equipments.which has more than 25 years' experience in designing,producing and selling bucket ladder .
suction dredgers.diamond/gold dredgers. sand washing plant . gold washing plant. sand washing & screening machinery. sand
transport barge.work boat and so on. Successful series of products have won the recognization and approval of general
administration of Quality Supervision. Welcome to our factory for discussion!
