• Model NO.：QHCSD-324
• Warranty：1 Year
• After-sales Service：Lifelong
• Dredging Depth：18m
• Discharge Distance：2000m
• Soild Capacity：1800m3
• Load Draft：1.6m
• Total Length：46m
• Total Width：10.2m
• Total Depth：2.7m
• Pump Water Flow：9000m3
• Head：57m
• Suction / Discharge Pipe Diameter：800mm
• Main Engine：Cummins 1950kw
• Rotate Speed：1900 R,M
• Auxiliary Engine Power：700 Kw
• Cutter Head Power：450kw
• Cutter Head Diameter：2400mm
• Transport Package：Canvas and Container
• Specification：Maximum capacituy 6000m3,h
• Trademark：Set Sail
• Origin：China
• HS Code：8905100000
• Production Capacity：5000set,Year

Item  Parameter Remark  Dredging depth 18m Add undereater pump can reach the 30meter Solid capacity1800m3According to 20% concentration to count  Discharge distance 2000m Add the booster station can reach the long distance transportation Load draft 1.6m  Total weight380t  Toal length 46m Total width 10.2m Total depth 2.7mit means the dimension is from bottom to the deck Bottom plate thickness 14mmCCS StandardFront and back plate thickness 20mm Side plate thickness 12mm Deck plate thickness 12mm Pump brand Shijiazhuang industrial pump factory  According to the customer's request to choose the brand Water flow 9000m3 we can do the over 20000m3 cutter suction dredger Head 57m Rotate speed 400r/m Efficiency 81.50% Suction /Discharge pipe diameter800mmDiameter is not changeless according to the anthentic situation to choice .Main engien brand and powerCummins 1950kw Can provide CAT .Weichai  so on diesel engine brand Rotate speed 1900r Rotate speed  is adjustable Auxiliary diesle engine and brand  Cummins 700kwCan provide CAT .Weichai  so on diesel engine brand Driving Pump and hydraulic system  gerbox Brand Hangzhou Fada Sup diameter *wall thickness 860mm*25mm Weight 26ton Lifting winch first layer pull 200KN Wire rope diameter  28mm Swing winch first layer pull150KN Wire rope diameter26mm Anchor boom length 18m Spud carriage stroke6m-8m Spund carriage pontoon length 12m
2. Cutter suction dredger shows :

3. Set sail cutter suction dredger feature :1A wide range of use applications. General used for river. lake .sea .reservoir .and inland waterway so on 2Full hydraulic control with Rexroth.  Vickers . all brand from the abroad .3Siemens PLC operation with the operation convenience.modular control all data in the one place.4Dredger components available in factories to allow short delivery times . all conponents is tested serious .5Follow manufacture guideline: CCS-ZC standard .all process can reach the international standard.6Western Dredge brand parts. easy to find globally . All the accessories have overseas service points7Optional equipment is available such as Spud carriage, anchor boom. underwater pump so on .8Gain access to our sales team. design team. manufacture team 24/7.  help the customers solves failure in time.9The modular design enables fast assembly with seniors engineers .

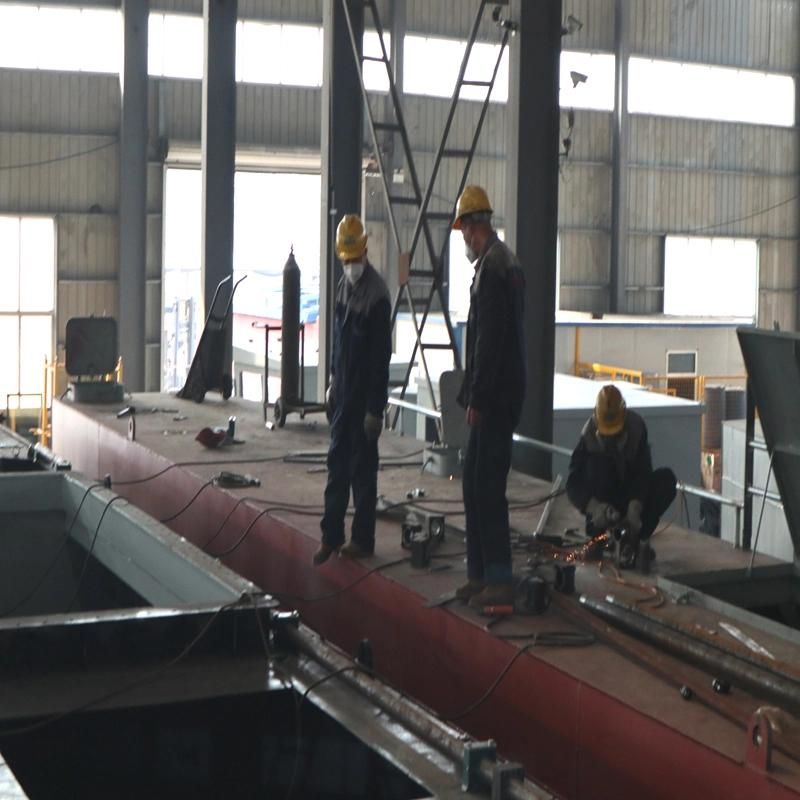

4.About Set Sail dredger factory:
 130 years' dredger manufacture workmanship. especially large water flow dredger field .2Fortune 500 Company chosen supplier .Germany . American brand   as the main conponents on my dredger.3Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service .46 manufacture shops .R&D center, testing pool. 5Large production. ISO 9001 2015 quality system. CE certification so on .6Presences more than  40 countries.


5. Certification :
