Hot Sale 18 Inch 450cbm/H Hydraulic Cutter Suction Dredger
Qingzhou Keda Environment Protection Machinery Co.,Ltd.- Type:Cutter Suction Dredger
- Power Type:Diesel
- Cyclone Type:Hydrocyclone
- Slot Type:CTS
- Customized:Customized
- Condition:New
Base Info
- Transport Package:in Container or Customized
- Specification:Customized
- Trademark:KEDA
- Origin:China
- HS Code:8905100000
- Production Capacity:5000
Description
Basic Info.
Transport Package in Container or Customized Specification Customized Trademark KEDA Origin China HS Code 8905100000 Production Capacity 5000Product Description
Product DescriptionHot sale 18 Inch 450cbm/h Hydraulic Cutter Suction Dredger
Product Application
1)Cutter Suction Gold Dredger Ship is flexible to most kinds of geologic structures and can be widely used in mineral digging, port(channel) dredging and reclamation works.2) By absorbing advanced technology of Dutch and American related products, this series of
dredgers show their characteristics of rational design, all hydraulic control, simple operation, little maintenance and strong power.
3)The capacity of KDTJ dredgers range from 100cbm/h to 1000cbm/h, the dredging depth from 1m to 25m and discharging distance from 500m to 3000m which can satisfy different work demands.
Model | KDCSD200 | KDCSD260 | KDCSD300 | KDCSD350 | KDCSD400 | KDCSD450 | KDCSD500 |
Dredger Body | |||||||
Dimensions(L*W*H)m | 12.5*4.6*1.3 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7*2 | 26*7.1*2.2 |
Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 9.5*3.2*1.8 | 12*3.4*2 | 14*3.4*2 | 14*3.5*2.2 |
Dredging data | |||||||
Standard dredging depth | 6-7m | 6-8m | 8-10m | 10-12m | 12-14m | 12-14m | 12-14m |
Pump model | 8/6 | 10/8 | 12/10 | 12/10 | 14/12 | 14/12 | 450WN |
Water flow | 450m3/h | 800m3/h | 1100m3/h | 1500m3/h | 1900m3/h | 2500m3/h | 3200m3/h |
Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 350 | 400 | 450 | 500 |
Discharge pipeline diameter(mm/inch) | 200 | 260 | 300 | 350 | 400 | 450 | 500 |
evices | |||||||
Total power KW | 176kw | 258kw | 353kw | 480kw | 640kw | 930kw | 1200kw |
Generator set(kw) | 24 | 24 | 24 | 24 | 24 | 36 | 36 |
Main Features
1) CCS ISO9001:2008 Certificate;2) The cutter suction gold dredger is a kind of dismountable cutter suction dredger and non-propelled;
3) The cutter is directly driven by one low speed hydraulic motor;
4) The two spuds are operated by means of a hydraulic ram;
5) Oil for the hydraulic system is supplied by vane pumps.

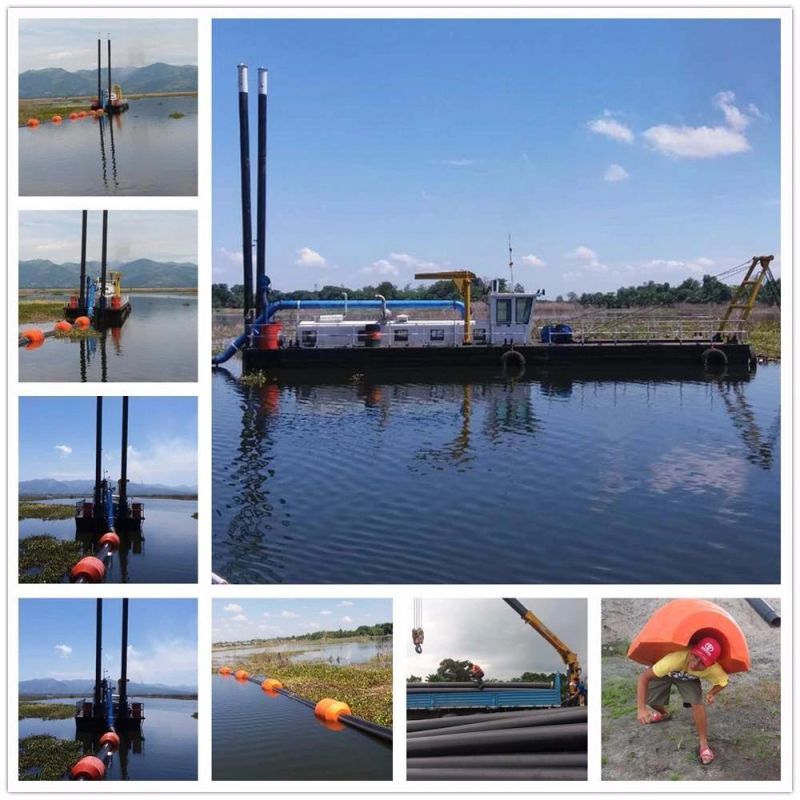

Certifications Detailed Images
Our Service ♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
