Gold Mining Equipment Gold Tungsten Copper Separator Double Four Layer Shaking Table
Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd.- Type：Gravity Separator
- Voltage：380V
- Weight：<1T
- Material：Fiberglass
- Material Feature：Wear-Resisting
- Certification：ISO9001:2008, CE
Base Info
- Energy Saving：Energy Saving
- Warranty：1 Year
- Color：Grey
- Customized：Customized
- Condition：New
- Product Name：2 Layer Gravity Shaking,Shaker Table
- Capacity：1-1.5 Tph
- Stroke：8-22 mm
- Feed Size：2-0.074 mm
- Power：1.1 Kw
- Feed Density：15-30%
- Bed Surface Size：4450*1855*1546 mm
- MOQ：1 Set of Shaking Table
- Application：Tungsten,Tin,Gold, Copper, Alluvial Gold
- Recovery Rate：92%
- After-Service：Video Guidance
- Operation：Easy
- Useage：Mineral Separator
- Main Products：Jaw Crusher, Ball Mill, Shaking Table
- Keywords：Shaking Table Gravity Separator
- Transport Package：Standard Container
- Specification：4450*1855*1546 mm
- Trademark：Hengchang
- Origin：China
- HS Code：8474100000
- Production Capacity：2000sets,Month
Description
NameCoarse sand surface of table Fine sand surface of table Ore slime surface of table Table surface Length (mm) 4450 4450 4450 Dimension Transmission end width (mm) 1855 1855 1855 crude ore width (mm) 1546 1546 1546 Max. feeding size (mm) 2 0.5 0.15 Feed amount (t/h) 30-60 10-20 15-25 Feed density (%) 25-30 20-25 15-25 Capacity (t/h) 0.6-2.5 0.6-2.5 0.6-2.5 Stroke (mm) 16-22 11-16 8-17 Frequency ( f) 45-48 48-53 50-57 Water quantity added(t/h) 80-150 30-60 10-17 Horizontal obliquity (°) 2°30′-4°30′ 1°30′-3°30′ 1°-2° Longitudinal obliquity (°) 1.4 0.92 -- Dressing Area (m2) 7.6 7.6 7.6 Cross-section Shape of table surface Rectangular Saw tooth triangle Motor Power (kw) 1.1 1.1 1.1 Transmission Mechanism Eccentric linkage
3 different types base support Shaking table with quotations have shown below:
4.Shaking table structure:

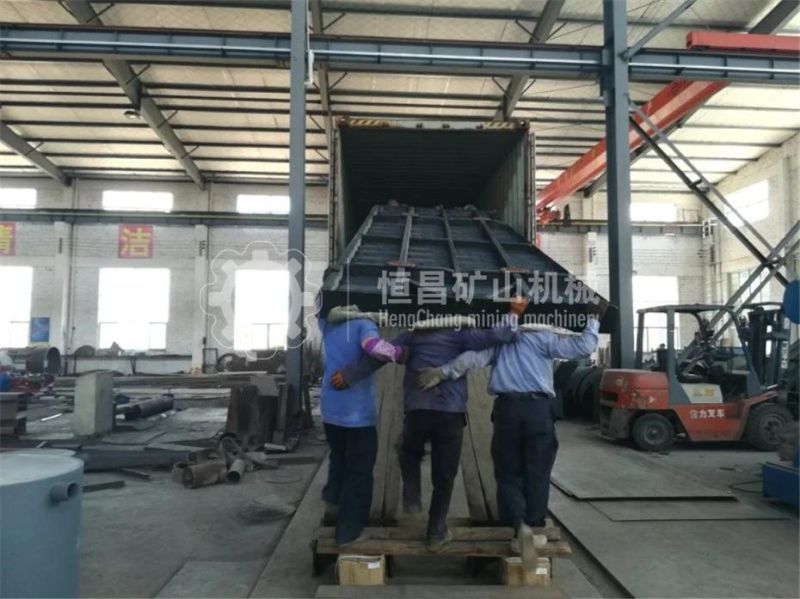

5. Package and Delivery of Shaking tables
6. About our factory:
Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd. is located in No.3 Chuangye Road. Guzhang In dustrial Park. Shicheng County. Ganzhou City. Jiangxi Province. China.Our company is engaged in the mineral processing equipment research, development, design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. And mainly the manufacture of the products like as Shaking table. Flotation equipment. Crushing equipment. Magnetic separator. Screening equipment. Classifying equipment. Agitation tank, Feeding equipment. Gravity separation equipment. Wet separation equipment. Spiral chute. Saw-tooth wave jig and Diaphragm Jig. Grinding equipment. Ball mill. Slurry pump. Centrifugal pump, Conveying equipment.
We manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten,lead. zinc. tin. molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile,diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal,precious metals and other minerals. And we have export qualifications, our products sell well all over the world for several years, especially exported to Brazil. India. Indonesia.South Africa. Somalia, Philippines. Malaysia. Sudan, Nigeria. Iran, Russia, Ghana. Kazakhstan Kyrgyzstan.Cambodia,Vietnam,Korea,Mongolia and other countries.
10. Our service:
1.Pre-sale services:
(1)Select equipment model;
(2) Design and manufactLire products according to clients' special requirement;
(3)Train technical personnel for dients.
2.Services during the sale:
(1) Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.
3. After-sale services:
(1) Assist dients to prepare for the first construction scheme;
(2)Install and debug the equipment;
(3) Train the first-line operators on site;
11. FAQ
If you have another question, pls feel free to contact us as below:
3 different types base support Shaking table with quotations have shown below:
4.Shaking table structure:
5. Package and Delivery of Shaking tables
6. About our factory:
Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd. is located in No.3 Chuangye Road. Guzhang In dustrial Park. Shicheng County. Ganzhou City. Jiangxi Province. China.Our company is engaged in the mineral processing equipment research, development, design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. And mainly the manufacture of the products like as Shaking table. Flotation equipment. Crushing equipment. Magnetic separator. Screening equipment. Classifying equipment. Agitation tank, Feeding equipment. Gravity separation equipment. Wet separation equipment. Spiral chute. Saw-tooth wave jig and Diaphragm Jig. Grinding equipment. Ball mill. Slurry pump. Centrifugal pump, Conveying equipment.
We manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten,lead. zinc. tin. molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile,diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal,precious metals and other minerals. And we have export qualifications, our products sell well all over the world for several years, especially exported to Brazil. India. Indonesia.South Africa. Somalia, Philippines. Malaysia. Sudan, Nigeria. Iran, Russia, Ghana. Kazakhstan Kyrgyzstan.Cambodia,Vietnam,Korea,Mongolia and other countries.
10. Our service:1.Pre-sale services:
(1)Select equipment model;
(2) Design and manufactLire products according to clients' special requirement;
(3)Train technical personnel for dients.
2.Services during the sale:
(1) Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.
3. After-sale services:
(1) Assist dients to prepare for the first construction scheme;
(2)Install and debug the equipment;
(3) Train the first-line operators on site;
11. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.not dealer.Direct factory sale makes price more competitive.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as below:
