Small Primary Electric Coal Stone Quarry Hammer Mill Crusher Diesel Granite Rock Limestone ...
Nanjing Sinonine Heavy Industry Science & Technology Co., Ltd.- Type：Jaw Crusher
- Motor Type：AC Motor
- Motor Power：5.5-160
- Application：Mine and Metallurgy
- Materials：Granite, Limestone,Hard Stone,Iron,Gold Ore etc.
- Outlet Size：5-150
Base Info
- Model NO.：PE
- Inlet Size：Max.125-210mm
- Condition：New
- Warranty：2year
- After-sales Service：2year
- Energy Consumption：Energy Saving
- Certification：CE,ISO,BV,GB
- Jaw Plate Material：High High Manganese Steel Mn13
- Transport Package：Nude&Wooden Box
- Specification：3-30tph
- Trademark：Sinonine
- Origin：China
- HS Code：8474209000
- Production Capacity：50set,Year
Description
Basic Info.
Model NO. PE Inlet Size Max.125-210mm Condition New Warranty 2year After-sales Service 2year Energy Consumption Energy Saving Certification CE,ISO,BV,GB Jaw Plate Material High High Manganese Steel Mn13 Transport Package Nude&Wooden Box Specification 3-30tph Trademark Sinonine Origin China HS Code 8474209000 Production Capacity 50set/YearProduct Description
This small size PE series jaw crusher max. feeding size is 130-210mm, output size is 10-60mm, capacity is 1-20 tph. Mining crusher crushing materials including granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, building construction, construction wastes etc.
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Working principle of jaw crusher
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.

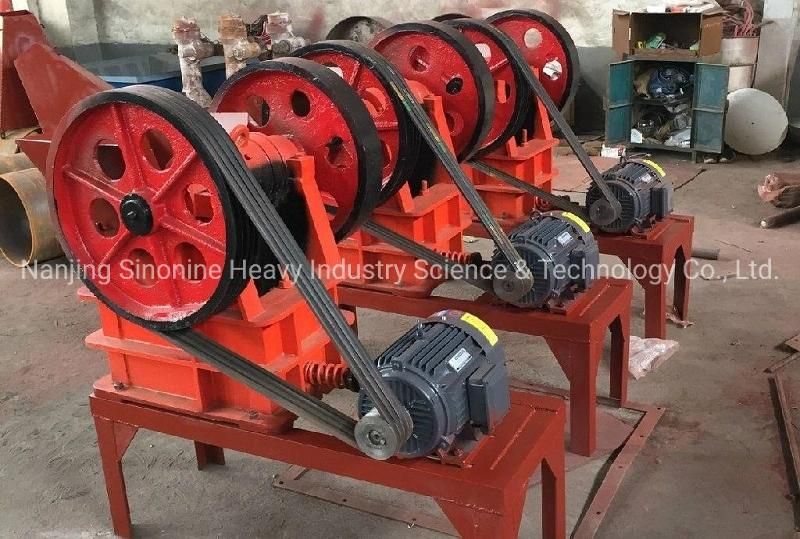

Specification of small jaw crusher
| Model | Feeding Opening Size | Max. Feeding Size (mm) | Discharging Opening Size(mm) | Capacity (t/h) | Motor Power | Overall Dimension (mm) |
| PE150x250 | 150x250 | 130 | 10-45 | 1-4 | 5.5 | 896x745x935 |
| PE200x300 | 200x300 | 180 | 15-50 | 2-6 | 7.5 | 910x750x990 |
| PE250x400 | 250x400 | 210 | 25-60 | 5-20 | 15 | 1215x1240x1210 |
Sometimes, some suitable equipment will be customized according to the actual situation of customers to save time and money and make it more convenient for customers to use, so as to get better promotion, such as crushing and conveying equipment and crushing and screening equipment.
