• Model NO.：1100
• Condition：New
• Name：Gold Separation Machine
• Model：1100
• Capacity：0.8-1.2 T,H
• Weight：5500 Kg
• Color：Blue or as Your Request
• Transport Package：FCL or LCL
• Specification：1100*200*80*25mm
• Trademark：Hengchang Gold Separation Machine
• Origin：China
• HS Code：8474202000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. 1100 Condition New Name Gold Separation Machine Model 1100 Capacity 0.8-1.2 T/H Weight 5500 Kg Color Blue or as Your Request Transport Package FCL or LCL Specification 1100*200*80*25mm Trademark Hengchang Gold Separation Machine Origin China HS Code 8474202000 Production Capacity 100 Sets/Month

Product Description

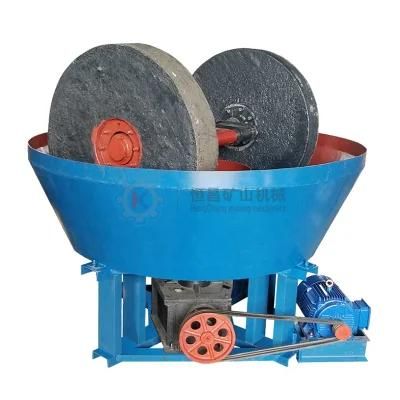

High Quality Rock Stone Gold Ore Grinder Double Rollers Gold Wet Pan Mill For Gold 11001. Wet Pan Mill Introduction
Wet Pan Mill, it is versatile ore grinding equipment not only for grinding the minerals but also for gold amalgam. It is a best replacement for medium-small capacity ball mill, owing to the excellent performance for wet crushing, small investment and high output.It is widely applied to the grinding and beneficiation of all kinds of metal minerals, non-metal minerals, rare metal and other materials. Such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and so on.

In Africa, at least 90% gold miners are using the wet pan mill for processing gold (wet pan mill) in there gold processing system instead of ball mill .High efficiency and low cost.




2. Wet Pan Mill of Structure
3. Wet Pan Mill Technical Parameters:

Model	Feeding size (mm)	Output size (mm)	Capacity (t/h)	Speed (r/min)	Motor power (kw)	Weight (kg)
900	<15	0.6-0.07	0.3	17-19	5.5	3000
1000	<20	0.6-0.07	0.5	16-18	5.5	4500
1100	<20	0.6-0.07	0.6-0.8	16-18	7.5	5000
1200B	<20	0.6-0.07	0.8-1.2	16-18	7.5	5500
1200A	<20	0.6-0.07	1-1.3	21-23	7.5	5500
1300	<20	0.6-0.07	1.5	16-18	15	7500
1400	<20	0.6-0.07	1.5-2	16-18	18.5	8500
1500B	<30	0.6-0.07	2.5-3	20-22	22	12300
1500A	<30	0.6-0.07	3-4	20-22	22	13300
1600	<30	0.6-0.07	4-5	20-22	30	14500

4. Wet Pan Mill of Working Principle:
Gold Mining Equipment adopts the working mode of the wheel-type grinding: firstly, the electric motor drives the power to the speed reducer, and the torque is transmitted to the upper horizontal shaft through the large vertical shaft driven by the speed reducer. Then, the tie rods installed at both ends of the horizontal axis are transmitted to the grinding wheel, so that the grinding wheel generates driving force, and the counterclockwise rotation motion is performed along the horizontal direction of the horizontal axis. The working wheel can not only revolve around the large vertical axis of the wet mill, but also rotate around the central axis of the roller, and the grinding disc is fixed. The added ore material is subjected to the pressing force from the weight of the drum itself in the mill. When the roller rotates and rotates, the huge friction generated by the grinding disc is completely crushed after repeated extrusion, smashing and grinding.
5. Successful Case of Wet Pan Mill:

6. Packing and delivery



 7.About our factory:
Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd. is located in No.3 Chuangye Road. Guzhang In dustrial Park. Shicheng County. Ganzhou City. Jiangxi Province. China.Our company is engaged in the mineral processing equipment research, development, design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. And mainly the manufacture of the products like as Shaking table. Flotation equipment. Crushing equipment. Magnetic separator. Screening equipment. Classifying equipment. Agitation tank, Feeding equipment. Gravity separation equipment. Wet separation equipment. Spiral chute. Saw-tooth wave jig and Diaphragm Jig. Grinding equipment. Ball mill. Slurry pump. Centrifugal pump, Conveying equipment.

We manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten,lead. zinc. tin. molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile,diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal,precious metals and other minerals. And we have export qualifications, our products sell well all over the world for several years, especially exported to Brazil. India. Indonesia.South Africa. Somalia, Philippines. Malaysia. Sudan, Nigeria. Iran, Russia, Ghana. Kazakhstan Kyrgyzstan.Cambodia,Vietnam,Korea,Mongolia and other countries.



9. FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.not dealer.Direct factory sale makes price more competitive.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
