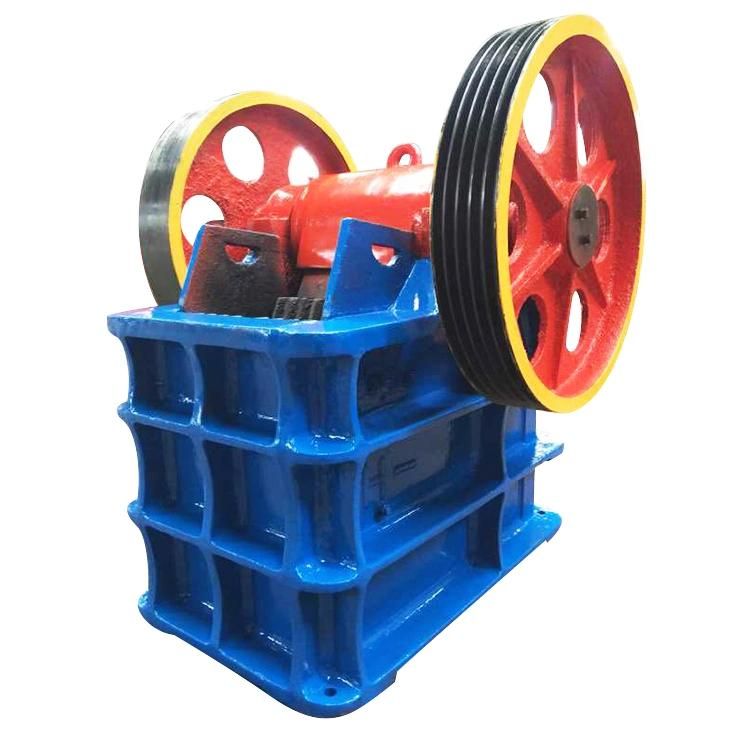

Low Price Portable Diesel Jaw Crusher for Stone

Jining Bafang Mining Machinery Group Co., Ltd.
  • Type:Jaw Crusher
  • Motor Power:15kw
  • Application:Mine
  • Materials:Fine Sandstone
  • Inlet Size:250×400mm
  • Condition:New

Base Info

  • Model NO.:PE-250*400
  • Product Name:Jaw Crusher
  • Model:PE-250*400
  • Feeding Size (mm*mm):250*400
  • Feeding Diameter(mm):210
  • Processing Power(T/H):5-20
  • Shaft Speed(R/Min):300
  • Motor Power(Kw):15
  • Adjusting Range(mm):20-60
  • Weight(T):2.8
  • Dimension(L*W*H):1300*1090*1270mm
  • Transport Package:Wooden Box
  • Specification:1300*1090*1270mm
  • Origin:Shandong, China (Mainland)
  • Production Capacity:10,Month

Description

Basic Info.

Model NO. PE-250*400 Product Name Jaw Crusher Model PE-250*400 Feeding Size (mm*mm) 250*400 Feeding Diameter(mm) 210 Processing Power(T/H) 5-20 Shaft Speed(R/Min) 300 Motor Power(Kw) 15 Adjusting Range(mm) 20-60 Weight(T) 2.8 Dimension(L*W*H) 1300*1090*1270mm Transport Package Wooden Box Specification 1300*1090*1270mm Origin Shandong, China (Mainland) Production Capacity 10/Month

Product Description

       low price portable diesel Jaw crusher for stone

Description:

        PE-250 × 400 jaw crusher mainly by: fixed jaw plate, activities, jaw, rack, upper and lower guard, adjust the seat, moving rods and other components. A good understanding of the internal structure of the jaw crusher can be used in the jaw crusher and problems in the process can play a very good help.



PE-250 × 400 E broken | E broken machine | jaw crusher operation Note:

(1) crusher after the normal operation, before feeding production.

(2) to be broken material should be evenly into the crusher cavity, should avoid the lateral feeding or filled with the material, so as to avoid overload or bear overload.

(3) normal work, the bearing temperature should not exceed 30 ºC, the maximum temperature shall not exceed 70 ºC. When the temperature is exceeded, stop immediately and identify the cause and exclude it.

(4) before stopping, should first stop feeding, to be completely broken material after the crushing chamber, before turning off the power.

(5) broken, such as crushing due to blockage of material caused by parking, should immediately shut down the power to stop running, the crushing cavity material clean up before re-starting.

(6) jaw plate end of wear, the use of adjustable head.

(7) crusher used for some time, the tightening of the sleeve should be loose and damage the machine.

Technical parameters :

Model

PE-250*400

Feed opening size

250*400mm

Max feeding size

210mm

Adjusting range of discharge opening

20-60mm

Processing capacity

5-20t/h

Ratation speed of eccentric shaft

300 r/min

Motor power

15kw

Total weight

2800kg

Dimension(L*W*H)

1300*1090*1270mm
