Suspension Conveyor Recycling Magnetic Separator-Manufacturer
Longte Magnet Co., Ltd.- Type：Magnetic Separator
- Voltage：as Local Voltage
- Weight：as Model
- Material：Carbon Steel
- Material Feature：Rare Earth Material-NdFeB Magnet
- Certification：ISO9001:2008
Base Info
- Model NO.：RCYB, RCYD, RCDB, RCDE, RCDA, RCDF
- Energy Saving：Energy Saving
- Warranty：1 Year
- Color：as Customer Requirement
- Customized：Customized
- Condition：New
- After-sales Service：Email Guide
- Belt Width：300-2600mm
- Magnetic Origin：Rare Earth Material-NdFeB Magnet or Engerised Coil
- Installation Type：Suspended Install
- Iron Cleaning Style：Manual Cleaning or Self Cleaning
- Magnetic Intensity：70-150mt
- Quality：High Reputation
- Feature：High Recovery Rate Easy
- Separator：Ferrous Metal
- Max.Belt Speed：4.5m,S
- Max.Product Stream Thickness：400mm
- Max.Suspended Height：450mm
- Key Selling Points：Protect Crusher-Purify Product Stream
- Cooling Type：Natural Cooling,Winding Cooling,Oil Cooling
- Transport Package：Export Standard Pack
- Specification：As model requirements
- Trademark：LONGTE
- Origin：China
- HS Code：84741000
- Production Capacity：100 Sets Per Month
Description
4.5
210
250
400
280
PDC-4
400
100
50
70
0.6
300
240
280
500
400
PDC-5
500
150
60
90
1.0
430
280
325
610
450
PDC-6
600
175
60
120
1.6
580
280
325
710
500
PDC-6.5
650
200
70
150
2.0
680
280
325
816
640
PDC-8
800
250
70
200
3.6
950
310
355
960
780
PDC-10
1000
300
70
250
5.0
1520
310
360
1200
920
PDC-12
1200
350
70
300
6.8
2250
310
365
1400
1000
PDC-14
1400
400
70
350
9.0
2950
405
485
1650
1400
PDC-16
1600
450
70
400
13
4800
460
540
1900
1650
PDC-18
1800
500
70
450
18
6900
530
610
2150
1800
All electro magnet comes along with control panel:

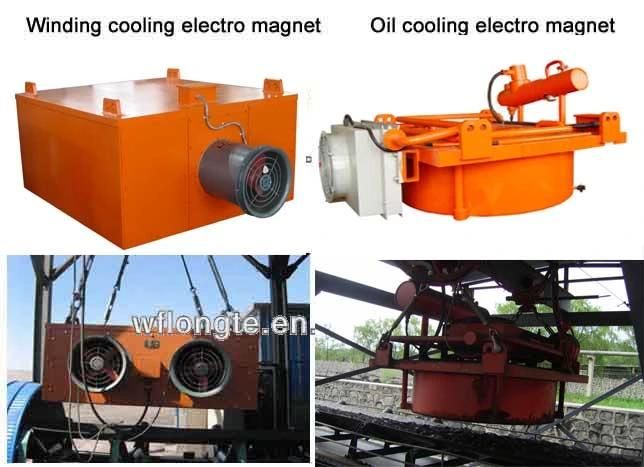

These powerful electro magnets require rectifiers.The rectifier changes alternating current (AC) to a direct current (DC). Generally, electro magnets requires DC current in order to generate a magnetic field. These electro magnets contain two coils, as power is applied to the coils, this creates a powerful magnetic field which can now be used to remove tramp iron from conveyor belt.
Self Cleaning Magnets:
Self cleaning magnets are based on existing and improved technology of permanent magnets and electro magnets,which adds iron discharge structure which composes of driving motor, roll, frame and iron discharging belt with scraper on the basis of permanent magnets and electro magnets.
Self cleaning magnets usually suspend on the conveyor or over the head pulley and used in a widely variety of application for the removal of occasional tramp iron automatically.
Work with various kinds of conveyor belt, 0.1~35kg ferrous material can be remove from the incompact non-ferrous materials.
These can be mounted either in line with the conveyor belt or in cross belt configuration.
Self cleaning magnetic separator catalogue:
1.Permanent magnetic self cleaning magnetic separator
2.permanent magnetic light type self cleaning magnetic separator
3.electro magnetic natural cooling self cleaning magnetic separator
4.electro magnetic wind cooling self cleaning magnetic separator
5.electro magnetic oil cooling self cleaning magnetic separator
Etc
Work with metal detector:
Suspended Magnetic separators are also used in combination with metal detectors to offer complete peace of mind. This will ensure that any metal material embedded or trapped in or under the ore that may escape the magnetic separator do not pass the metal detector. Once a metal detector is tripped, the conveyor will stop and human intervention is required. This will ensure no metal components end up in the process that will cause costly problems.
