Gold Mine Beneficiation Recovery Equipment Self-aspirated Flotation Cell of Processing ...

Yantai Huize Mining Engineering Co., Ltd.
  • Type:Froth Flotation Machine
  • Voltage:Multiple Voltages
  • Weight:Various
  • Material:Carbon Steel
  • Material Feature:Corrosion and Rust Resistance
  • Energy Saving:Energy Saving

Base Info

  • Model NO.:SF-0.37,SF-0.7,SF-1.2,SF-2,SF-2.8,SF-4,SF-8,SF-20
  • Warranty:1 Year
  • Color:Selectable
  • Customized:Customized
  • Condition:New
  • Function:Flotation Concentration
  • Drive Mode:Electric Motor
  • Power:Multiple Power
  • Application:Mining and Mineral Processing
  • Transport Package:Containerized
  • Specification:SF-0.37,SF-0.7,SF-1.2,SF-2,SF-2.8,SF-4,SF-8,SF-20
  • Trademark:HZE
  • Origin:China
  • HS Code:8474100000
  • Production Capacity:90 Sets,Year

Description

Basic Info.

Model NO. SF-0.37/SF-0.7/SF-1.2/SF-2/SF-2.8/SF-4/SF-8/SF-20 Warranty 1 Year Color Selectable Customized Customized Condition New Function Flotation Concentration Drive Mode Electric Motor Power Multiple Power Application Mining and Mineral Processing Transport Package Containerized Specification SF-0.37/SF-0.7/SF-1.2/SF-2/SF-2.8/SF-4/SF-8/SF-20 Trademark HZE Origin China HS Code 8474100000 Production Capacity 90 Sets/Year

Product Description

Gold Mine Beneficiation Recovery Equipment Self-aspirated Flotation Cell of Processing Plant

Working Principle
Flotation machine is named as flotation cell and froth flotation concentrator.
When the impeller rotates, slurry in upper and lower impeller chambers is pushed all around by the centrifugal force produced by the action of upper and lower vanes, forming a negatives pressure. Meanwhile, the slurry on the cover plate is sucked into the upper impeller chamber through the circular hole, forming up the circulation of slurry. When the ore slurry is thrown around by the lower vane, the ore slurry under lower vane flows to the center to complement, forming the down circulation of slurry. Air sucked into the upper impeller chamber and mixes with the sucked slurry through suction pipe and center cylinder, a large amount of air bubbles is formed. After steady flow through the cover board, these bubbles are evenly dispersed in the cell, forming mineral froth. Then mineral froth will rise to the foam layer and become foam production by the scraper.

Gold Mine Beneficiation Recovery Equipment Self-aspirated Flotation Cell of Processing Plant
Features
The impeller with backward-style two-sided vanes ensures double circulation of ore slurry in the cell.
The large interval between the impeller and cover plate ensures a large amount of air suction.

Special Tips
Mechanical stirring, automatic air and ore slurry suction.
It can be combined with other type flotation cells to be a set of flotation cells as suction cells of each operation.

Gold Mine Beneficiation Recovery Equipment Self-aspirated Flotation Cell of Processing Plant

Application Scope
Flotation cell is one of the most commonly used mining equipment, which is widely used in mineral processing and chemical industries. In the production of small scale, medium scale or large scale mineral processing plants, it is generally used as the concentration machine to recover metal minerals of gold, silver, copper, lead, zinc, nickel, manganese, iron, molybdenum, tungsten and others, as well as barite, quartz, graphite, feldspar, fluorspar, etc.


Technical Parameters
Model Effective Volume
(m3)
Capacity
(m3/min)
Impeller Diameter
(mm)
Impeller Speed
(r.p.m)
Agitator Power
(kW)
Paddle Power  (kW)
SF-0.370.370.2-0.4300352-4421.50.55
SF-0.70.70.3-1.035033631.1
SF-1.21.20.6-1.24503125.51.1
SF-221.5~3550280111.5
SF-2.82.81.5-3.5550280111.5
SF-442.0-4650235151.5
SF-663~6760191302.2
SF-884.0-8760191302.2
SF-16165.0-16850169-193451.5
SF-20205.0-20850186451.5
Gold Mine Beneficiation Recovery Equipment Self-aspirated Flotation Cell of Processing Plant

Gold Mine Beneficiation Recovery Equipment Self-aspirated Flotation Cell of Processing Plant


Gold Mine Beneficiation Recovery Equipment Self-aspirated Flotation Cell of Processing Plant
1. What is the main business scope of your company?

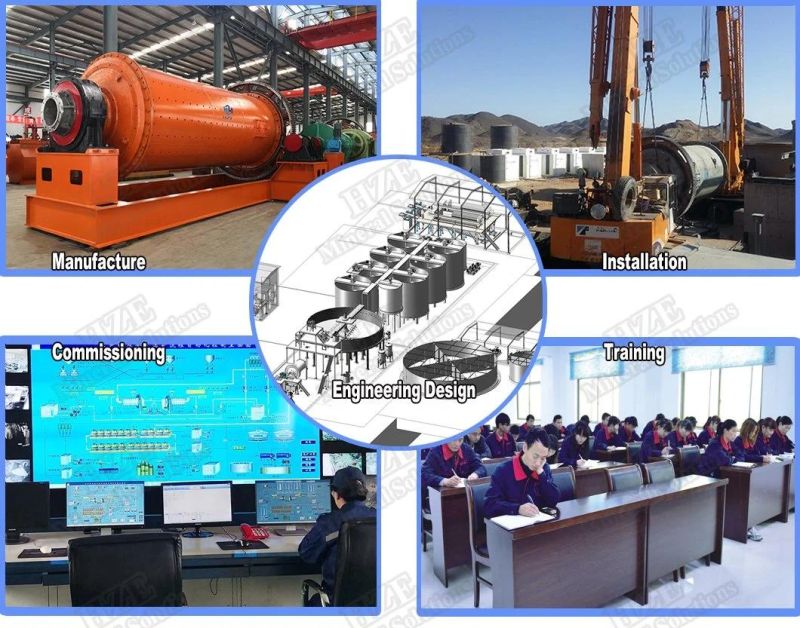

HZE is a company with R&D center, design institute, manufacturing factories, installation and commissioning teams. Our customers are in the mining and mineral processing fields. Our major businesses include mineral processing EPC (engineering, procurement and construction), project consultation, engineering design, mineral processing equipment manufacturing, on-site installation, commissioning, staff training, customer project operation management, spare parts supply and technical support. Customers are free to choose any one or any combination of our services.

Gold Mine Beneficiation Recovery Equipment Self-aspirated Flotation Cell of Processing Plant
2. What are the outstanding advantages of your company?

The one-stop service of mineral processing engineering project and equipment is our core competitiveness.

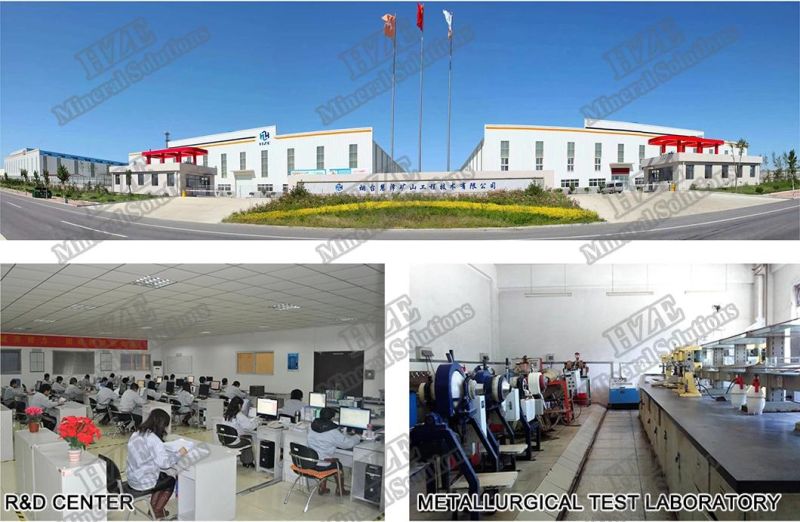

The most important feature that HZE distinguishes itself from other engineering companies, design companies or consulting companies is that we are also an equipment manufacturer with a production plant of 50,000 square meters, and we have complete manufacturing rout and the related equipment.
HZE distinguishes itself from other equipment manufacturers by owning its own R&D center and engineering design institute.
HZE distinguishes itself from many mining machinery enterprises by possessing an expert team with members including not only senior engineers of the company, but also top Chinese technical experts, university professors and researchers.

Gold Mine Beneficiation Recovery Equipment Self-aspirated Flotation Cell of Processing Plant

3. What are the characteristics of your company's 3D design?

HZE not only uses 3D software to design equipment, but also uses 3D software to design process flow, pipeline, steel structure, auxiliary facilities, etc. of the whole mineral processing project. We even use 3D design for equipment packaging, container packing and equipment instructions manual. This greatly improves the quality of equipment and engineering, shortens the construction period, facilitates technical discussion and evaluation, facilitates project management, improves construction safety and reduces project cost.

Gold Mine Beneficiation Recovery Equipment Self-aspirated Flotation Cell of Processing Plant

4.  What are the service features of your company?
  1. Customers who whether buy our equipment, or entrust us with EPC, or require us to provide a certain service, cooperate closely with us to carry out specific operations and supervise our implementation throughout the process.
  2. HZE will try to understand the basic situation and needs of customers as detailed as possible before the sale, formulate a preliminary plan according to the specific situation of customers, and get unanimous opinions after communications and discussions with customers to determine the plan.
  3. We set up customer files for every customer who signed the contract with us and upload them to the Cloud where customers can also get an account and password. Customers can have all the documents, videos and pictures, technology, services, execution, operation, management and control, maintenance and so on related to the business.
  4. Whether it is in the process of general contracting, equipment manufacturing or providing some kind of service, we welcome customers to know about our implementation on the spot or through the network, and put forward requirements and opinions.
  5. We assist users who have used our products to formulate operation specifications and make suggestions on maintenance plans and spare parts inventories. In addition to routine on-site installation, commissioning and training, during the production period after we handing over equipment to customers for use, we often understand the equipment using situations through the network and provide guidance and training to customer management and operators.
  6. For the clients who have just start the mining business, we provide the opportunity of training and practice in China's mines for the clients' employees, until they are skilled in operation and maintenance.
