Set Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter Teeth

Qingzhou Set Sail Dredging Equipment Machinery Co., Ltd.
  • Type：Cutter Suction Dredger
  • Power Type：Diesel
  • Cyclone Type：Hydrocyclone
  • Slot Type：CTN
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：10inch-34
  • Warranty：2 Year
  • After-sales Service：Lifelong
  • Dredging Depth：8 Meter
  • Solid Capacity：300 M3
  • Discharge Distance：1000 Meter
  • Total Weight：90 Ton
  • Total Length：31.1 Meter
  • Total Width：5.5meter
  • Total Height：1.48meter
  • Sand Pump Brand：Shijiazhuang
  • Water Flow：1500m3
  • Head：53 Meter
  • Main Engine Power：Cummins 456kw
  • Auxiliary Engine Power：Cummins 122kw
  • Cutter Head Diameter：1200 mm
  • Cutter Head Power：64kw
  • Hydraulic Brand：Rexroth
  • Transport Package：Canvas
  • Specification：10inch cutter suction dredger
  • Trademark：Set Sail
  • Origin：China
  • HS Code：8905100000
  • Production Capacity：2000 Sets,Year

Description

1Main engine and auxiliary engine from US and UK .we can according to your request to offer engine brand.
 2Hydraulic control system from Rexroth.
 3Slurry pump from Kingda.
 4PLC system from Siemens.
 5 Bushes/Shaft from NSk -Japan.
 6Sealing from parker -America.

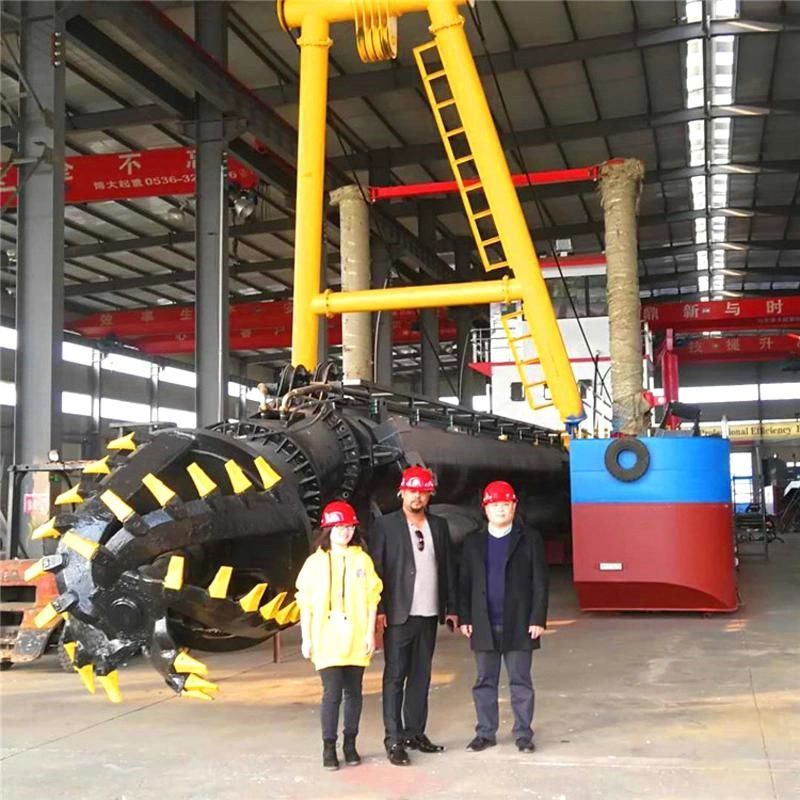

  2. 10inch cutter suction dredger pictures:Set Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter TeethSet Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter TeethSet Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter Teeth
3. 10inch dredger main parts introduce :1Main auxiliary Engine brand Cummins2Main/auxiliary engine power456/122kw3Speed 1500/1800/r/min4Cooling wayWater cooling waySet Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter TeethSet Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter Teeth1Water flow 1500m32Head 53m3Speed 720r/min4Efficiency76.75%5Suction /discharge pipe size350mm1Diameter1200mm2Speed 11/22/333Cutter power 64kwSet Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter Teeth
4. 10inch dredger basic parameter :1Solid capacity300 cubic meter 2Discharge distance 1000 meter 3Total weight 90 ton 4Total length31.1 meter5Total width5.5 meter6Total height1.48 meter7Sand pump water flow 1500 cubic meter8Suction /discharge pipe size 350mm9Main engine brand /powerCummins/456kw10Auxiliary engine brand/powerCummins/122kw11Cutter head diameter 1200mm12Cutter head speed 11/22/33 r/min.13Cutter head power64kw
5.Dredger in work site :Set Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter TeethSet Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter TeethSet Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter Teeth
6.Advantage :1Make high depther dredger . especially is electrical underwater pump can reach the steadier performance .2Advanced detail design. from point to surface are according to the actual situation to design.3Configuration pretty rich. Anchor boom . carrirage. depth sounder meter .water flow meter . concentrate meter so on .4Long discharge distance . according all dredger working situation to reasonable design to save the budget for customer.7.Our customer :Set Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter TeethSet Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter TeethSet Sail Brand 10 Inch Cutter Suction Silt Dredger with Cutter Teeth8. Our service :1Help the customer to solve the any failure in time .2Cost for Offering the full spare parts 3Low salary for Sending the engineer to the abord 4Long time quality warrant
9. FAQ:1You are factory ?We are factory we can offer the lowest quotation .2You factory ability?Our factory has works more than 100 . over 20 engineers in research development team3Do you have many abord cutomers?Bangladesh. Nigeria. Malaysia. The Philippines. In Indonesia. Chad. Guinea. more than 100 contries .4You can offer the dredger working site abord? Yes . we can offer the working site for visitting .5Your can offer the all certification ?We have full certifications Such as ISO . CE SO ON
