• Model NO.：FCYJ-1D
• Working Mode：Wheeled
• Transmission：Hydraulic
• Rated Capacity：2 Ton
• Speed Performance：0-15 Km,H
• Diesel Engine：Germany Brand Deutz
• Max. Shovel：45 Kn
• Max. Traction：52 Kn
• dealer wanted：yes
• Transport Package：20′ or 40′ High Container Shipment
• Specification：1m3 , 1.31 yd3
• Trademark：FUCHENG
• Origin：China
• HS Code：84293090
• Production Capacity：300 Sets , Year

Basic Info.

Model NO. FCYJ-1D Working Mode Wheeled Transmission Hydraulic Rated Capacity 2 Ton Speed Performance 0-15 Km/H Diesel Engine Germany Brand Deutz Max. Shovel 45 Kn Max. Traction 52 Kn dealer wanted yes Transport Package 20′ or 40′ High Container Shipment Specification 1m3 / 1.31 yd3 Trademark FUCHENG Origin China HS Code 84293090 Production Capacity 300 Sets / Year

Product Description

Hot sale 1m3 underground Loader with Diesel Engine for Mining / Dealer wanted

Main features

1. Equipped with Germany DEUTZ BF4L914 diesel Engine, with low emissions, low pollution, and excellent feature of big power.
2. Excellent performance with American SAUER PV pump and MV motor.
3. Ergonomics designed compartment improve the control of bucket lifting and tilting, guarantee safety and minimal fatigue for operator.
4. Hydraulic double pipe working system, equipped with multi-disk wet brake, self-developed anti-skid differential mechanism of NO-SPIN.
5. Advanced way of three-point suspension articulated, improving layout form of oscillating axle.
6. Optional parts with ejector bucket and side dump buck.

General DimensionsMain Technical Parameters:

Diesel Engine:	DEUTZ BF4L2011 (Germany)
Heaped Bucket Capacity:	1 m3
Max. Traction:	52KN
Running Speed:	0-10km/h
Max .Discharge Height :	1085mm
Max. Rotation Angle:	±36°
Rated Power:	55.1kw
Weight (include hydraulic oil):	7T
Hydraulic pump/motor:	Sauer PV22 / MV23
Payload Capacity:	2000kg
Max. Shovel Force:	45KN
Gradeability:	16°
Min. Turning Radius:	2350mm
Min. Ground Clearance:	195mm
Max. Bucket Height:	3600mm
Dimensions:	6250 *1300*1950mm

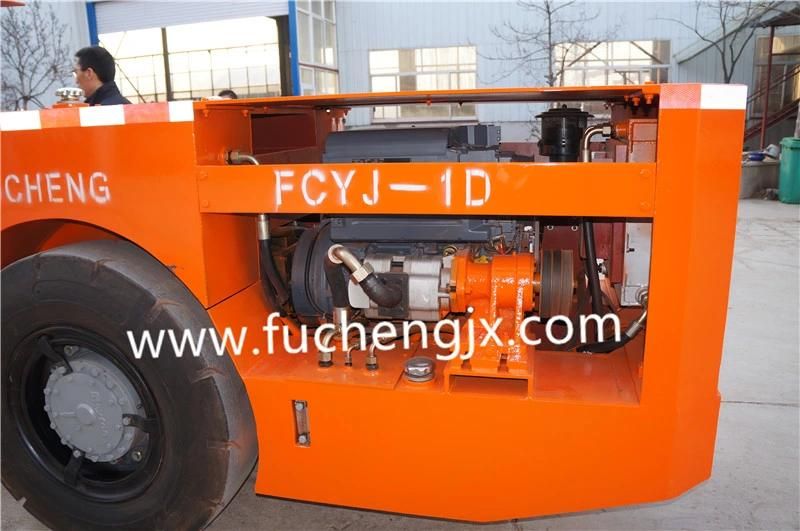

Product show:







About us:

Jinan Fucheng Hydraulic Equipment Co., Ltd, is specialized in researching, designing, manufacturing all kinds of underground mining machinery and spare parts including underground loader LHDs, underground trucks, jumbos, etc. With almost 20 years development, Fucheng has now grown up to a leader in this field in China.

Fucheng mining equipment has passed ISO9001 and obtained CE certificate, widely exported to Southeast Asia, Europe, South America, etc., and won high reputation from our customers.


FAQ:

Q: Are you manufacturer or trading company ?
A: We are manufacturer.

Q: What is the Payment terms ?
A: Usually by TT or LC, other terms could be negotiated.

Q: What is the delivery time ?
A: Normally the lead time is 30 days after receipt of down payment or LC.

Q: What is the warranty of the products ?
A: 12 months calculated from the goods arriving at the destination port.

Q: Do you provide equipment operation training?
A: Yes. We supply remote free online service. Or if need, we can send professional engineers to the working site for equipment installation, adjustment, and operation training.

Q: Can you customize the products?
A: Yes,we can customize as per your requirement.

Q: Where is the products are used?
A: The products are used for mining in the tunnel of metal mine or non-metal mine.

Q: What is the drive mode of your products ?
A: The products drive mode is diesel engine mode.
