• Model NO.：LY1100
• Energy Saving：Energy Saving
• Warranty：1 Year
• Color：Black
• Customized：Customized
• Condition：New
• Capacity：1-2t,H
• Feeding Size：0.074-2mm
• Transport Package：Nude Package
• Specification：Depends on model
• Trademark：WKD
• Origin：China
• HS Code：8474100000
• Production Capacity：500 Sets , Month

Basic Info.

Model NO. LY1100 Energy Saving Energy Saving Warranty 1 Year Color Black Customized Customized Condition New Capacity 1-2t/H Feeding Size 0.074-2mm Transport Package Nude Package Specification Depends on model Trademark WKD Origin China HS Code 8474100000 Production Capacity 500 Sets / Month

Product Description

Introduction

Shaking table, as one of the gravity mining machines, applicable to nonferrous metals, ferrous metals and rare metals mineral, like gold, tungsten, tin, tantalum, iron, manganese, chrome, titanium, bismuth and lead, which the size ranges from 2-0.037mm, also recovery of Au, Cu, Ag from various of slags, PCB, waste wire and cable, battery scrap, to improve recovery ratio and protect environment.
Recovery material size ranges are: coarse sand (0.5 mm to 2 mm), fine sand (0.074 mm to 0.5 mm) and slime (-0.074 mm). Effective mineral recovery size range is 0.22 mm to 2 mm.


Structure

1. Transmission
The transmission is of rugged construction and requires minimum maintenance. Its internal mechanism is splash lubricated from an integral oil pump.

2. Decks
The decks are built of 16 mm zircon-reinforced fiberglass with fabricated steel frames at the bottom and are easy to clean, not have common maintenance.The fiberglass decks have characteristic of water-resistance and corrosion-resistance.

3. Feed box and water box
A wooden feeding box with hooper and long water box are attached to the iron of deck, to make feeding evenly.


1. Ore Feeding Mouth  2. Stroke Adjusting Device  3. Ore Feeding Chute  4. Water Feeding Mouth  5. Water Feeding Chute  6. Table Surface  7. Concentrates Discharging Area  8. Tailing Discharging Area  9. Horizontal Support  10. Horizontal Adjustment Wheel  11. Table Support  12. Knife-Type Support  13. Stand  14. Driving Unit  15. Motor Support  16. Swing Adjusting DeviceWorking Principle for  shaking table concentrator

The working principle of zircon sand shaker table is to use the combined action of the specific gravity for different sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning.


 Application and Performance for Earthquake Shaking Table Gemini shaking table is one of the main equipment for gravity classification, which is widely applied in the classification of tungsten, tin, tantalum, columbium and other rare metal and precious metal ore. gold table is designed for wet gravoty-base separatiom of minerla and other granular materials. It is effective in processing precious and base metal, rare and non-metallic minerals.


Advantages and Characteristics
1 Ingenious structure of inertial gearing, self balanced vertical force component. No vertical jump because no vertical vibrating force. It can be installed on the building floor, or on the bracket
2 Lift type, minimal consumption of friction, reduce vibration and energy-saving, non-required bulky base, quick and flexible installation
3 It adopts fiberglass deck with wear-resistant layer, wear-resistant, waterproof, anti-dry, anticorrosion, non-deformed, less maintenance, long service life
4 The deck installed in an uniform frame Layer-by-layer, easy to install and unload, increase processing capacity per unit area. Replace different weight blocks can change the stroke of shaking bed
5 It adopts variable-frequence governor, easily change frequency of stroke to adapt different material with different particle size and feature

Technical Parameters

Model Performance	LS4500	LY3000	LY2100	LY1100
Screen Size(mm)	4500×1850×1560	3000×1620×1100	2100×1050×850	1100×500×430
Stroke length mm	10-30	6-30	12-28	9-17
Frequency tpm	240-420	210-320	250-450	280-460
Horizontal slope °	0-5	0-10	0-8	0-10
Feeding Range mm	2-0.037	2-0.037	2-0.037	2-0.037
Feeding  Density %	10-30	10-30	10-30	10-30
Capacity(t/h)	0.3-2.5	0.2-1.5	0.1-0.8	0.03-0.2
Water consumption	0.4-0.7	0.3-1.5	0.2-1	0.1-0.5
Motor power kw	1.1	1.1	1.1	0.55
Size(mm) l*w*h	5600×1850×860	4075×1320×780	3040×1050×1020	1530×500×800

Remark:
The shaking table have three distinct deck designs available.
The coarse ore deck is designed for recovering particles size from 0.5mm to 2mm
The fine sand deck is designed for recovering fine particles size from 0.074mm to 0.5mm
The slime deck is designed for recovering super extremely fine particles from 0.15mm to 0.074mm

Packaging

1.LY1100 & LY2100 with wooden box
2.LY3000 & LY4500 with iron frame

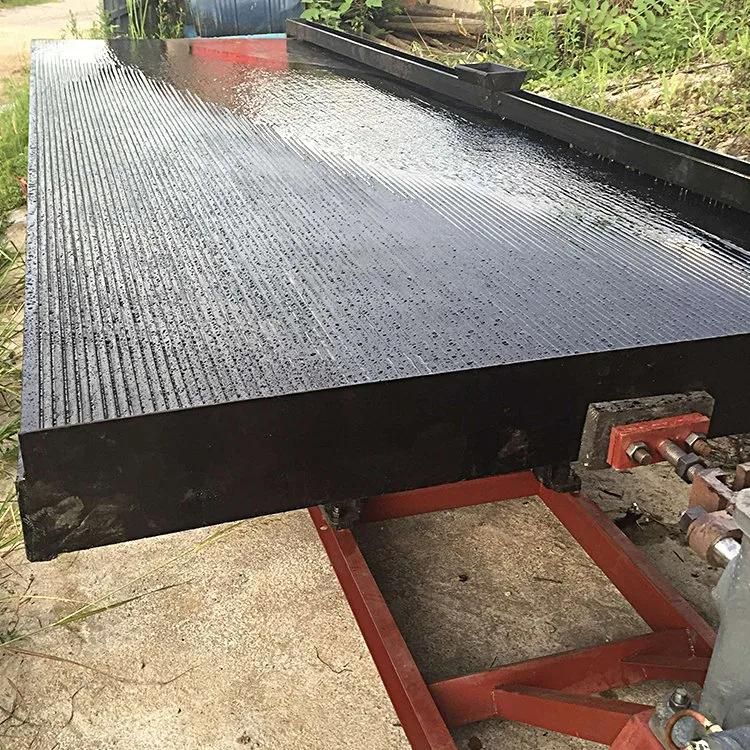

Detailed Images




Company Information
Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.

With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.

Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:

Gold trommel wash plant
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Waste recycling machine
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant


Package: FCL & LCL export standard container 20GP/40GP/40HQ.

FCL: main machinery gold shaking table in nude package and bulk in container, spare parts in wooden box or as your special requirement
LCL: machinery are packed in steel frame, base and deck are separately packed.

Shipping: by sea shipment, by air shipment or by courier express, it depends on you.

Payment Terms: T/T or L/C is preferable. T/T: 30% deposit and the balance before delivery

We will take photos for your products when finished and show you before delivery. Also keep you informed for any updated information including shipping before you receive it, to let you rest assured.

Delivery time: shipped in 15 days after payment
