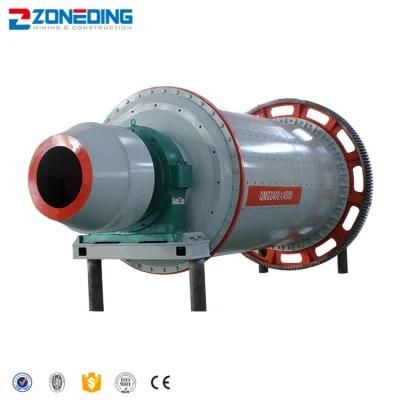

Ball Mill for Copper Mining Ball Mill Equipment

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd.
  • Type：Ball Mill
  • Motor Type：DC Motor
  • Motor Power：15-1000kw
  • Rotationl Speed：23-25r,min
  • Application：Refractory Material, Silicate, Building Material
  • Materials：Feldspare,Zinc Ore, Copper Ore, Gold Ore,Silica

Base Info

  • Condition：New
  • Warranty：One Year
  • After-sales Service：One Year
  • Flowchart：Provided
  • Installation&Training：Provided
  • Grinding Method：Wet or Dry
  • Specification：customizable
  • Trademark：ZONGDING
  • Origin：China
  • Production Capacity：1-200t,H

Description

ModelSpeed (r/min)Max. weight of balls (t)Input size (mm)Output size (mm)Power (kw)Capacity (t/h)Weight (t)Φ900×1800371.8≤150.075-0.89150.5-23.4Φ900×2100372.3≤150.075-0.418.50.4-23.9Φ900×3000353.85≤250.075-0.4301.1-2.57.78Φ1200×2400354.6≤250.075-0.4301.3-3.28.65Φ1200×2800355.4≤250.075-0.4371.5-3.710.02Φ1200×4500358.6≤250.075-0.4452.7-6.7914Φ1500×3000299≤250.047-0.4753.3-8.214.12Φ1500×35002910.5≤250.047-0.4753.3-8.515.64Φ1500×45002913.5≤250.047-0.4904.5-1220Φ1500×57002917≤250.047-0.41102.6-1421.5Φ1830×30002413.5≤250.047-0.41354-1528Φ1830×36002414≤250.047-0.41354-1529Φ1830×45002420≤250.047-0.41554-1932Φ1830×70002431.5≤250.047-0.42106-2237.5Φ2100×30002218≤250.047-0.42106.4-2840.79Φ2100×36002220≤250.047-0.42107-2842Φ2100×40002221.5≤250.047-0.42107.6-2843.45Φ2200×360021.725≤250.047-0.42455.2-3244Φ2200×700021.746≤250.047-0.438015-3863Φ2400×36002128≤250.047-0.43208-6047Φ2400×45002135≤250.047-0.43808.5-6070.5Φ2700×360020.740≤250.047-0.440012-8075.5Φ2700×450020.748≤250.047-0.445012-90102Φ3200×40001865≤250.047-0.480030-180137

Note: Any change of technical data shall not be advised additionally.
Ball Mill for Copper Mining Ball Mill Equipment
Application:Ball Mill for Copper Mining Ball Mill Equipment
Features:Ball Mill for Copper Mining Ball Mill Equipment
Ceramic liner can avoid iron pollution and other impurity.
Ball Mill for Copper Mining Ball Mill Equipment

Customer Case
Ball Mill for Copper Mining Ball Mill Equipment

Mongolia Limestone Grinding Project

Input Size: 20mmOutput Size: 150meshCapacity: 50t/h

Equipment: Φ2100X2400 Ball Mill, Dust Collector, Ball Mill Spare Parts
